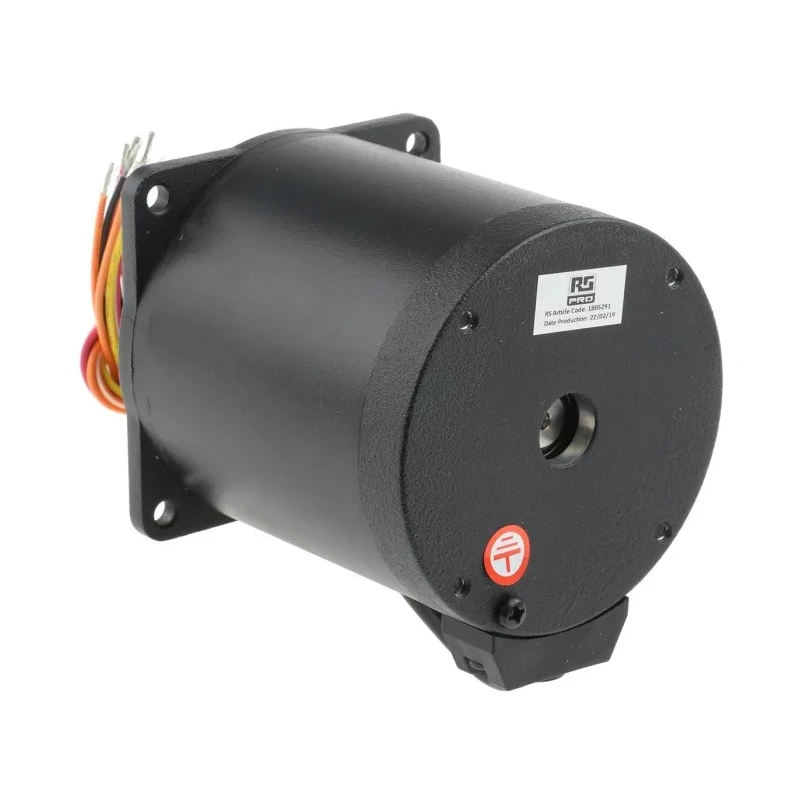

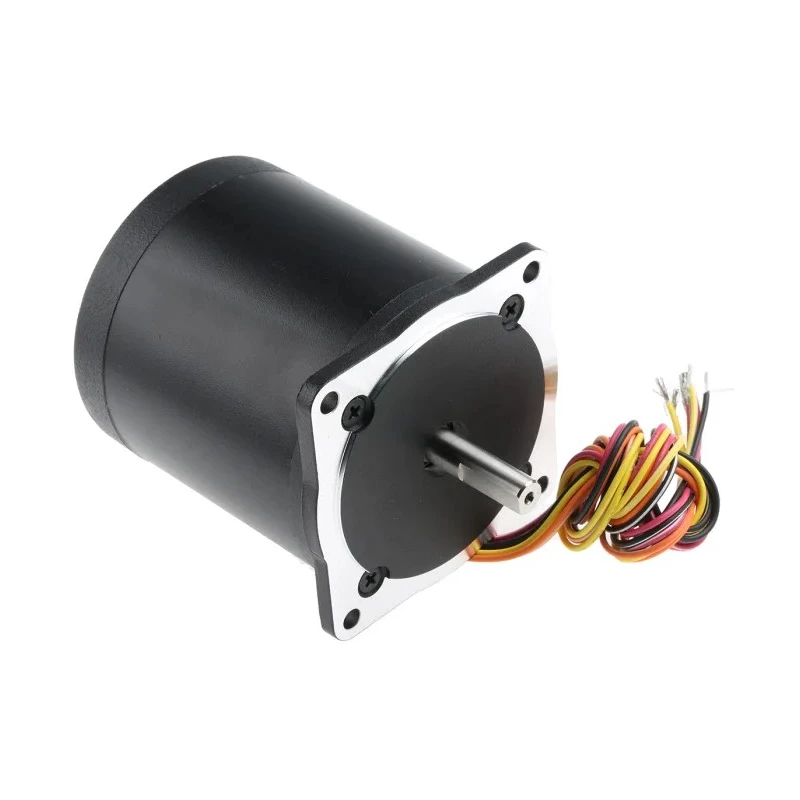

RS PRO Hybrid Stepper Motor 2.54V, 4.76V, 6.6V, 1.8° Step Angle, 82.5x82.5 mm Frame, 9.52 mm Shaft 180-5291

RS PRO 180-5291 hybrid stepper motor delivers precise step control with a 1.8° stepping angle, suitable for applications requiring fine positioning accuracy.

This motor integrates the advantages of variable reluctance and permanent magnet stepper motors, achieving high torque even at low speeds. It features a robust build with a frame size of 82.5 x 82.5 mm and a shaft diameter of 9.52 mm, ensuring durability and reliability.

The motor supports multiple winding arrangements including parallel, series, and unipolar, providing adaptability for diverse application needs. Rated voltages cover 2.54 V, 4.76 V, and 6.6 V corresponding to different wiring configurations.

Holding torque ranges from 3.8 Nm in unipolar mode to 4.8 Nm for parallel and series connections, enabling effective load handling. The shaft length is 28.9 mm with a motor depth of 94 mm, designed to fit various mounting requirements.

Certified to UL and RoHS standards, this stepper motor assures compliance with industry safety and environmental regulations. It is manufactured in China, reflecting high quality standards.

This hybrid stepper motor combines VR and PM motor technologies. Supports parallel, series, and unipolar winding arrangements. Provides holding torque up to 4.8 Nm suitable for precise control. Rated for multiple voltages: 2.54 V, 4.76 V, and 6.6 V.

Frame size of 82.5 x 82.5 mm with 9.52 mm shaft diameter. Ideal for CNC machines, printers, medical scanners, and other precise motion applications.

This product is broadly used in industrial automation, robotics, medical equipment, and precision instrumentation where controlled step movement is critical. RS PRO's hybrid Stepper Motor series offers versatility, reliability, and performance, making it suitable for demanding manufacturing and laboratory environments.
