4D Systems Gen4 Diablo16 7 in Resistive Touch Screen Display Board Starter Kit SK-gen4-70DT
Specifications
| Country of Origin | Australia |
|---|---|
| Brand | 4D Systems |
| Model | SK-gen4-70DT |
| Display Technology | Resistive Touch Screen |
| Standards/Approvals | RoHS, REACH, CE |
| Kit Classification | Starter Kit |
| Featured Device | DIABLO16 |
| Kit Name | Gen4 Diablo16 |
| Diagonal Display Size | 7in |
| 4D Systems SK-70DT LCD Colour Display Touch Screen, 7 in, 800 x 480 pixelBrand | 4D Systems |
Key Features
- The kit features a 7-inch color TFT LCD with resistive touch technology.
- Powered by DIABLO16 graphics processor for high functionality.
- Includes 16 configurable general-purpose I/O pins with analog inputs.
- Built-in 32kb SRAM memory allows for user application and data storage.
- Offers multiple SPI channels and PWM audio output from micro-SD card.
- Supply voltage operates within 4V to 5.5V DC range.
- Display resolution is 800x480 pixels with RGB 65K true-to-life colors.
- Compact module dimensions of 187 x 102.1 x 8.3 mm with a 153.84 x 85.63 mm viewing area.
Product Description

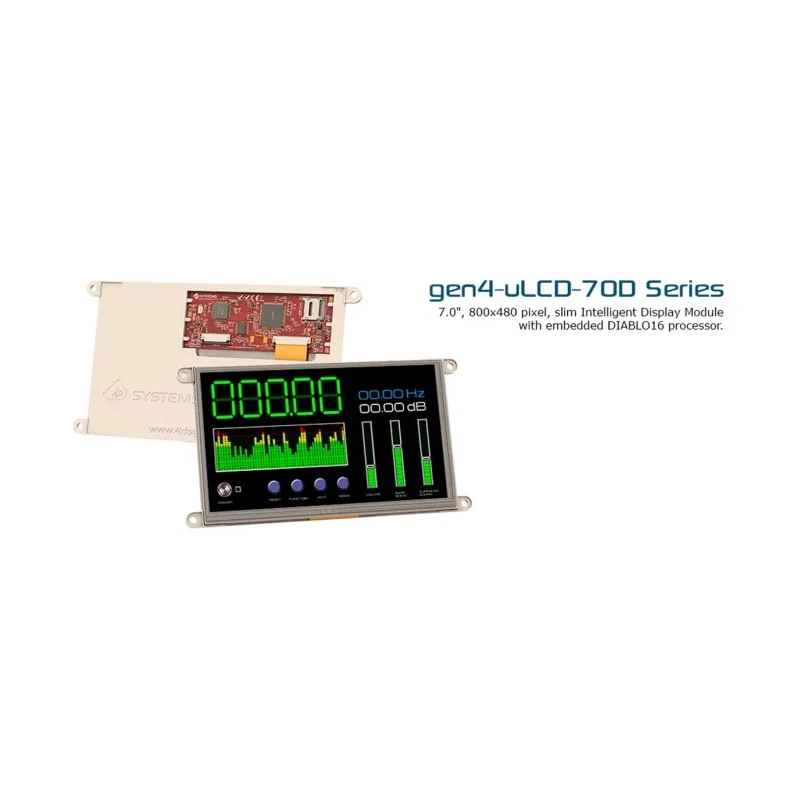

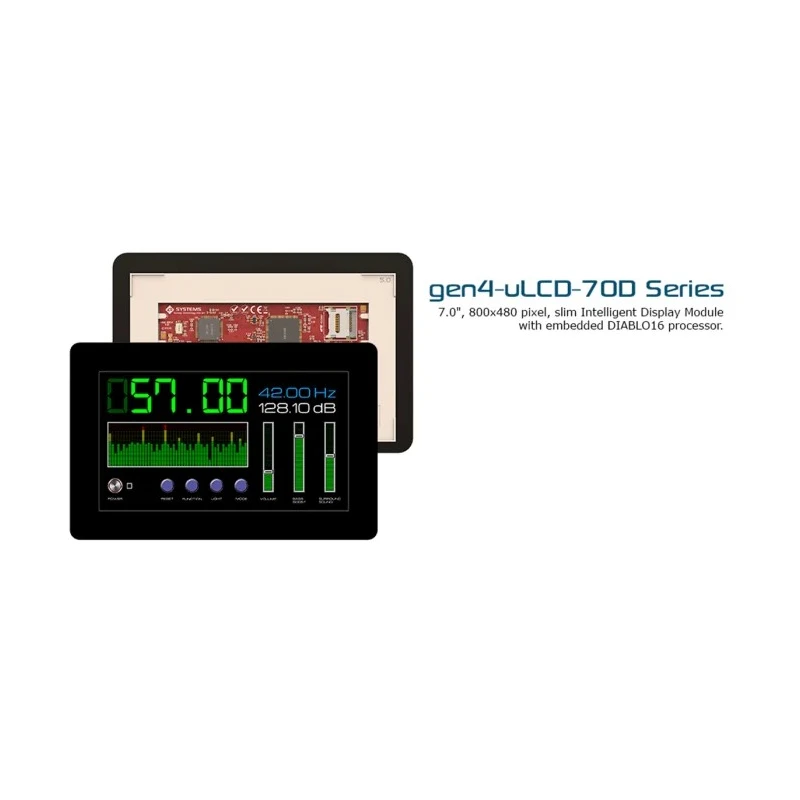

4D Systems SK-gen4-70DT Gen4 Diablo16 7 inch resistive touch screen display board starter kit is a highly integrated display module solution featuring a high-resolution 7 inch TFT LCD with 800x480 pixel resolution. Powered by the DIABLO16 graphics processor, it offers a wide range of functionalities to enable designers and developers to create embedded applications efficiently.

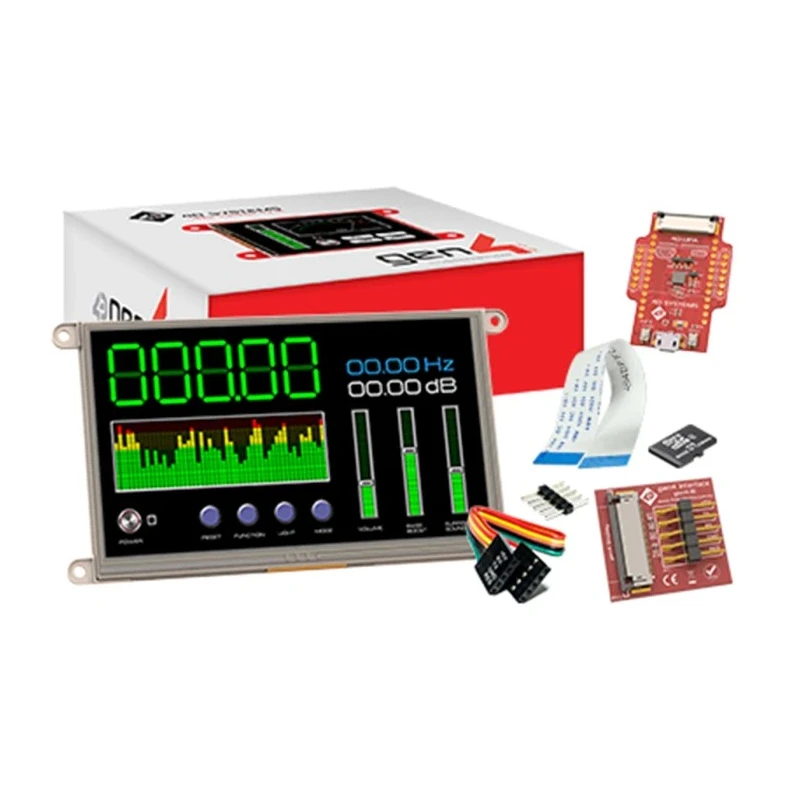

This starter kit comes with a Gen4 integrated display module, gen4-IB interface board, Gen4 Programming Adaptor (gen4-PA), 4GB Micro-SD card, and connecting cables including a 5-way cable suitable for breadboard connectivity and a 30-way 150mm FFC cable. The operating supply voltage ranges from 4V to 5.5V DC ensuring compatibility with common embedded platform voltages.
The display supports 65K RGB true color imaging with a brightness of 400 cd/m2, providing clear and vibrant visuals. It features 16 versatile GPIO pins, including 4 configurable analog inputs capable of PWM, TTL Serial communication, I2C, SPI channels, pulse output, and quadrature input, making it adaptable for diverse hardware interfacing.
A dedicated SPI channel for the onboard micro-SD card enables storage of multimedia content including WAV audio files which can be output via the PWM audio pin for external amplification. The module dimensions are 187 x 102.1 x 8.3 mm and it offers a 153.84 x 85.63 mm display viewing area. The unit complies with RoHS, REACH, and CE standards and is manufactured in Australia.
This kit is ideal for embedded development environments, Raspberry Pi projects, and other applications where a compact, versatile 7 inch touch display module is required. The Gen4 system architecture enhances development speed with integrated programming support and peripheral connectivity.
The kit contains the 7 inch resistive touch display module with DIABLO16 graphics processor. Includes interface and programming adaptor boards with cables for connection flexibility. Comes with a 4GB micro-SD card for application and multimedia storage.
Supports 16 configurable GPIO pins with analog, serial, and PWM capabilities. Provides full colour, high brightness display with 800x480 resolution. Explore more at EnvMart for similar electronics components and development kits from trusted brands like 4D Systems.
Explore more products in our Display Development Kit category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The display resolution is 800x480 pixels, supporting RGB 65K true-to-life colors.
It operates within a supply voltage range of 4V to 5.5V DC.
The kit features a resistive touch screen display technology.
The module dimensions are 187 x 102.1 x 8.3 mm, with a viewing area of 153.84 x 85.63 mm.
It offers 16 configurable general-purpose I/O pins, including 4 analog inputs.
The kit includes a dedicated SPI channel for an onboard micro-SD card, allowing storage of multimedia content such as WAV audio files, which can be output via the PWM audio pin.
The display brightness is rated at 400 cd/m2, providing clear and vibrant visuals.
The starter kit includes the Gen4 integrated display module, gen4-IB interface board, Gen4 Programming Adaptor, a 4GB Micro-SD card, and various connecting cables.
It complies with RoHS, REACH, and CE standards.
It is manufactured in Australia.
This kit is suitable for embedded development environments, Raspberry Pi projects, and other applications requiring a compact touch display module.
The featured device in this board is the DIABLO16 graphics processor.
