4D Systems 4D Systems SK-gen4-43D Gen4 Diablo16 4.3 in Non-Touch Screen Starter Kit with DIABLO16 SK-gen4-43D

4D Systems SK-gen4-43D Gen4 Diablo16 4.3 in Non-Touch Screen Starter Kit with DIABLO16 SK-gen4-43D is a comprehensive display module starter kit designed for embedded systems and development applications.

This kit features a vibrant 4.3 inch TFT LCD display with a resolution of 480x272 pixels delivering true RGB 65K colour depth. The display is powered by the DIABLO16 graphics processor, enabling advanced graphic handling and rich multimedia features. The operating supply voltage range is 4V to 5.5V DC, making it suitable for a variety of power environments.

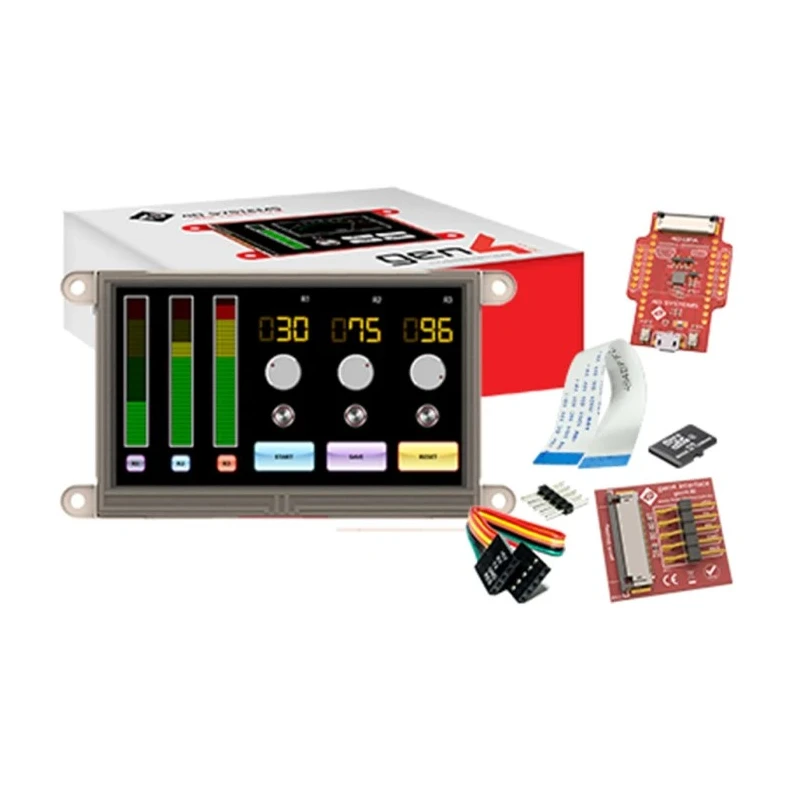

The starter kit comes equipped with the Gen4 integrated display module, a gen4-IB interface board, Gen4 Programming Adaptor (gen4-PA), a 4GB micro-SD card, a 5-way cable for easy connections to breadboards or hosts, and a 30-way 150mm FFC cable for extended functionality.

Connectivity options include 16 configurable general-purpose I/O pins, 4 of which can be analog inputs. It supports PWM, TTL Serial communication, 3x I2C bus channels, SPI channels, pulse output, and quadrature input functionality. Memory includes 32kb SRAM dedicated to application code and data for user flexibility.

Audio capabilities are enhanced by a PWM audio pin driven by WAV files stored on the micro-SD card, supporting external amplifier sound output. The on-board latch type micro-SD connector facilitates multimedia storage and data logging.

The display module dimensions are compact at 127.60 mm length, 69.30 mm width, and 6.70 mm depth, with a display viewing area of 95.04 mm by 53.86 mm. It is designed with standards compliance including REACH, CE, and RoHS, and is manufactured in Australia.

This development kit is ideal for use in embedded systems, Raspberry Pi projects, education in STEM fields, and other applications that require a reliable and versatile colour display interface. The package offers a complete solution for developers looking to integrate high-quality visual output and interactive controls in their designs.

Features a 4.3 inch diagonal display size with 480x272 pixel resolution for clear images. Non-touch screen technology with DIABLO16 graphics processor for advanced display capabilities. Includes multiple configurable GPIO including analog inputs and communication interfaces.

Onboard 32kb SRAM memory for application code and data management. Equipped with a 4GB micro-SD card and slot for enhanced data storage. Supports PWM audio output and multiple SPI channels for versatile interfacing. Compact module dimensions suitable for embedded integration.

Standards compliant with REACH, CE, and RoHS ensuring quality and safety. Intended for embedded applications, Raspberry Pi, and STEM education development projects. Manufactured in Australia, ensuring reliability and build quality.
