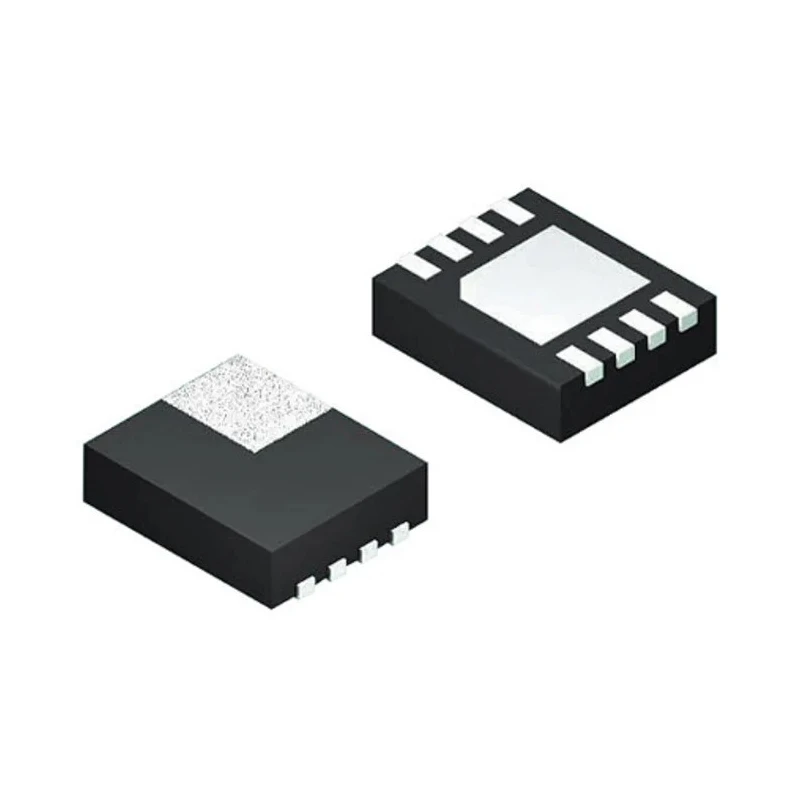

Texas Instruments Buffer IC 1 Driver 1 Receiver LVDS, 800Mbps Data Rate, 8-Pin LLP DS90LV001TLD/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 800μm |
| Length | 3mm |
| Model | DS90LV001TLD/NOPB |
| Mount Type | Surface |
| Output type | LVDS |
| Series | DS90LV001 |
| Input Type | LVDS |
| Maximum Operating Temperature | 85°C |
| Sub Type | Buffer |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Number of Elements per Chip | 1 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Number of Drivers | 1 |
| Number of Receivers | 1 |
| Transmission Data Rate | 800Mbps |
| Differential Input High Threshold Voltage | 100mV |
| Differential Input Low Threshold Voltage | -100mV |
Key Features
- Supports low-voltage differential signaling for efficient data communication.
- Operates with a supply voltage range of 3 to 3.6 volts.
- Features differential input high and low threshold voltages of 100mV and -100mV respectively.
- Surface mount device with compact dimensions of 3mm length and 800μm height.
- Built-in ESD protection enhances device reliability during handling and operation.
- RoHS compliant ensuring environmental safety and compliance.
- Operational temperature range from -40°C to 85°C, suitable for diverse environments.
- Ideal for applications including Firewire, SATA, and SCSI interfaces.
Product Description
Texas Instruments DS90LV001TLD/NOPB Buffer IC is a specialized device featuring 1 driver and 1 receiver designed to handle LVDS signals efficiently. Its high-speed data transfer capability supports transmission rates up to 800Mbps, making it suitable for modern electronic applications requiring fast and reliable interface communications.
This IC operates within a supply voltage range of 3V minimum and 3.6V maximum, ensuring stable performance across various power scenarios. The device's differential input thresholds are precisely designed at 100mV for high and -100mV for low, facilitating accurate signal detection in low-voltage differential signaling systems.
The component comes in a surface mount 8-pin Low-Leakage Plastic Package (LLP), with compact physical dimensions of 3mm in length and 800 micrometers in height, allowing for space-efficient PCB designs. It integrates ESD protection to guard against electrostatic discharge damage during manufacturing and operation, enhancing its durability.
Operating comfortably in a temperature range from -40°C to 85°C, this buffer IC is suitable for industrial and commercial applications in varying environmental conditions. Additionally, it complies with RoHS standards, ensuring it meets environmental regulatory requirements.
This buffer IC is particularly beneficial in high-speed data transmission applications such as Firewire, SATA, and SCSI interfaces, providing reliable communication performance in electronic devices and systems.
Supports low-voltage differential signaling for efficient data communication. Operates with a supply voltage range of 3 to 3.6 volts. Features differential input high and low threshold voltages of 100mV and -100mV respectively.
Surface mount device with compact dimensions of 3mm length and 800μm height. Built-in ESD protection enhances device reliability during handling and operation. RoHS compliant ensuring environmental safety and compliance.
Operational temperature range from -40°C to 85°C, suitable for diverse environments. Ideal for applications including Firewire, SATA, and SCSI interfaces. Discover more semiconductor and interface IC solutions at EnvMart for your industrial and electronic design needs.
Explore more products in our LVDS Interface Ics category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum data transmission rate of this buffer IC is 800Mbps, allowing for efficient data communication in electronic applications.
This model operates within a supply voltage range of 3V to 3.6V, ensuring stable performance across various power scenarios.
The differential input high threshold voltage is 100mV, while the low threshold voltage is -100mV, facilitating accurate signal detection.
The device has compact dimensions of 3mm in length and 800μm in height, making it suitable for space-efficient PCB designs.
Yes, it includes built-in ESD protection to enhance reliability during handling and operation, safeguarding against electrostatic discharge damage.
This model is ideal for applications involving Firewire, SATA, and SCSI interfaces, providing reliable communication performance.
It complies with RoHS standards, ensuring it meets environmental regulatory requirements for safety and compliance.
This device is a surface mount type, designed for compact and efficient integration into electronic circuits.
The input type is LVDS, and it also outputs LVDS signals, making it suitable for low-voltage differential signaling applications.
The country of origin for this buffer IC is India.
