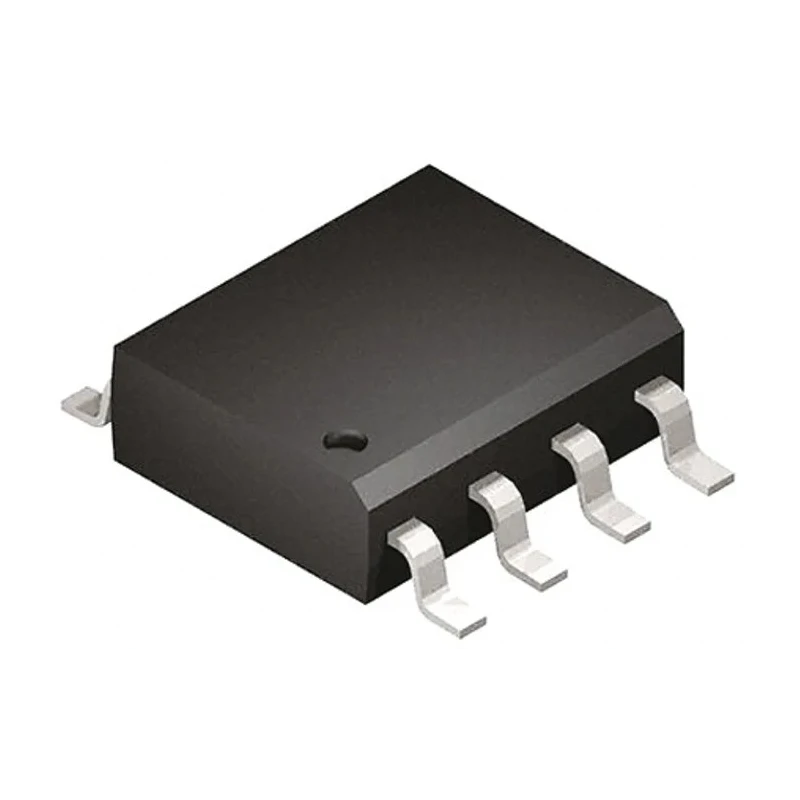

onsemi Repeater IC 1 HSTL LVPECL LVDS 8-Pin Surface Mount Package FIN1101K8X
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 700μm |
| Length | 2.3mm |
| Model | FIN1101K8X |
| Mount Type | Surface |
| Output type | LVDS |
| Series | FIN1101 |
| Input Type | HSTL, LVPECL |
| Maximum Operating Temperature | 85°C |
| Package Type | US |
| Sub Type | Repeater |
| Minimum Operating Temperature | -40°C |
| Pin Count | 8 |
| Number of Elements per Chip | 1 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Number of Drivers | 1 |
| Number of Receivers | 1 |
| Transmission Data Rate | 1600Mbps |
| Differential Input High Threshold Voltage | 100mV |
| Differential Input Low Threshold Voltage | -100mV |
Key Features
- Operates with a transmission data rate up to 1600 Mbps.
- Features 1 driver and 1 receiver for signal repeat and integrity.
- Supports differential input high and low threshold voltages of 100 mV and -100 mV respectively.
- Operates with supply voltage from 3 V to 3.6 V.
- Electronic component packaged in an 8-pin US surface mount package.
- Suitable for high-speed communication protocols like Firewire, SATA, and SCSI.
- ESD protection implemented to enhance reliability.
- Designed to operate in a temperature range from -40°C to 85°C.
Product Description
onsemi FIN1101K8X is a high-performance LVDS repeater integrated circuit designed for high-speed data transmission applications. It features one driver and one receiver, supporting HSTL and LVPECL differential input types and outputting LVDS signals. The transmission data rate can reach up to 1600 Mbps, making it suitable for applications demanding high-speed interconnects such as Firewire, SATA, and SCSI interfaces.
This repeater IC comes in an 8-pin US surface mount package, enabling easy integration into modern PCB designs and space-saving applications. It functions reliably in a supply voltage range of 3 V to 3.6 V and operates under harsh environmental conditions with a temperature rating from -40°C up to 85°C. The differential input thresholds are set at 100 mV (high) and -100 mV (low), ensuring robust signal detection and integrity across transmission lines.
With ESD protection included, this component assures enhanced ruggedness and longer life in industrial and commercial electronics. Its compact size, including a length of 2.3 mm and height of 700 μm, allows for efficient use of PCB area. The FIN1101K8X series does not comply with specific automotive standards but is designed for reliable LVDS signal repeat functions in industrial and communications equipment.
Operates with a transmission data rate up to 1600 Mbps. Equipped with one driver and one receiver element per chip. Supports input types HSTL and LVPECL for differential signaling. Outputs LVDS signals with stable thresholds.
Surface mount 8-pin US package optimizes PCB layout. Supply voltage range from 3 V to 3.6 V for flexible power design. Temperature operation range from -40°C to 85°C supports industrial use. ESD protection enhances component durability.
Dimensions permit compact assembly with length 2.3 mm and height 700 μm.
This product is ideal for electronic component manufacturers requiring LVDS Interface Ics optimized for high-speed data transmission in interface applications. It is specially suited to industrial, communication, and computing sectors where signal integrity and speed are critical. For extra design assistance, DesignSpark software is available to download, facilitating PCB and 3D mechanical design integration.
Explore more semiconductor and LVDS interface solutions at EnvMart for your advanced electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum transmission data rate of this model is 1600 Mbps.
It supports HSTL and LVPECL differential input types.
It operates within a supply voltage range of 3 V to 3.6 V.
The dimensions include a length of 2.3 mm and a height of 700 μm.
It operates in a temperature range from -40°C to 85°C.
This IC contains one driver and one receiver per chip.
It outputs LVDS signals.
Yes, ESD protection is included to enhance reliability.
The differential input high threshold voltage is 100 mV, and the low threshold voltage is -100 mV.
It comes in an 8-pin US surface mount package.
It is suitable for high-speed communication protocols like Firewire, SATA, and SCSI.
The country of origin for this product is India.
