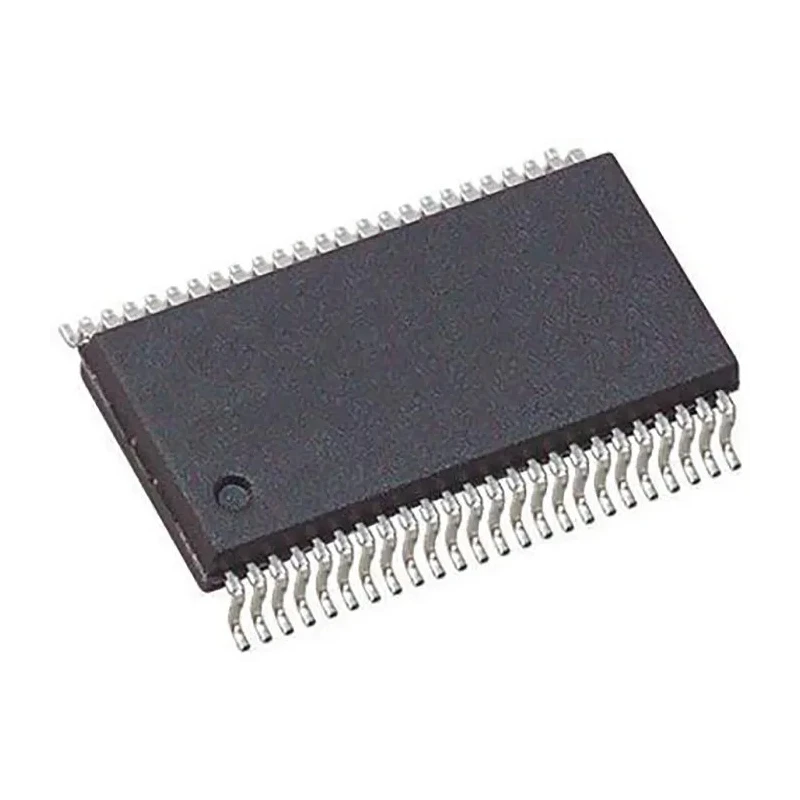

onsemi Repeater IC 8 Driver 8 Receiver HSTL LVPECL LVDS 800Mbps 3-3.6V 48-Pin TSSOP FIN1108MTDX
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 900μm |
| Length | 12.5mm |
| Model | FIN1108MTDX |
| Mount Type | Surface |
| Output type | LVDS |
| Series | FIN1108 |
| Input Type | HSTL, LVPECL |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Sub Type | Repeater |
| Minimum Operating Temperature | -40°C |
| Pin Count | 48 |
| Number of Elements per Chip | 8 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Number of Drivers | 8 |
| Number of Receivers | 8 |
| Transmission Data Rate | 800Mbps |
| Differential Input High Threshold Voltage | 100mV |
| Differential Input Low Threshold Voltage | -100mV |
| ON Semiconductor FIN1108MTD, LVDS Repeater, 3 → 3.6 V, 48-Pin, TSSOPBrand | Fairchild Semiconductor |
Key Features
- Operates within a supply voltage range of 3 to 3.6 volts.
- Features a 48-pin TSSOP surface-mount package suitable for compact PCB designs.
- Designed for robust ESD protection enhancing device reliability.
- Supports differential input voltage thresholds of +100mV and -100mV for high signal integrity.
- Wide operating temperature range from -40°C to 85°C suitable for industrial environments.
- Chip height is 900 micrometers and length measures 12.5 millimeters.
- Absence of automotive certification indicates use in general electronic applications.
- Ideal for high-speed communication protocols including Firewire, SATA, and SCSI.
Product Description
onsemi FIN1108MTDX is a highly integrated repeater IC featuring 8 drivers and 8 receivers, configured for differential signaling standards including HSTL, LVPECL at inputs, and LVDS at outputs. This device operates at a transmission rate of 800Mbps, making it suitable for high-speed data communication systems.
It is housed in a compact 48-pin thin shrink small outline package (TSSOP) designed for surface mount technology, facilitating efficient board space usage in electronic assemblies. The supply voltage required ranges from a minimum of 3V up to a maximum of 3.6V, providing flexibility in low-voltage system designs.
The IC supports differential input thresholds of +100mV (high) and -100mV (low), ensuring accurate signal detection and minimal noise interference, integral for sensitive data transmission environments.
Engineered for durability, this component includes ESD protection and operates reliably across a broad temperature spectrum from -40°C to 85°C, accommodating demanding industrial, communications, and computing applications.
Dimensions of the device include a height of 900 micrometers and a length of 12.5 millimeters. It is not specifically qualified to automotive standards but excels in LVDS communication tasks across systems requiring fast and reliable data exchanges.
Common use cases for the FIN1108MTDX encompass interface functions in Firewire, SATA, and SCSI protocols where low-voltage differential signaling is critical. This repeater IC helps maintain signal integrity over longer cable distances and complex PCB layouts.
Operates from 3 to 3.6 volts supply voltage. Provides 8 drivers and 8 receivers in a single chip. Supports HSTL and LVPECL input types with LVDS output type. Offers 800Mbps transmission data rate for high-speed applications.
Packaged in 48-pin TSSOP for surface mounting. Robust ESD protection enhances device durability. Wide operating temperature range from -40°C to +85°C. Compact physical dimensions of 12.5mm length and 900μm height.
Explore additional onsemi products and similar semiconductor interface ICs in EnvMart’s comprehensive catalog for industrial, communication, and electronic system integration needs.
Explore more products in our LVDS Interface Ics category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The repeater IC supports a maximum transmission data rate of 800Mbps, making it suitable for high-speed data communication applications.
It operates within a supply voltage range of 3 to 3.6 volts, providing flexibility for low-voltage system designs.
This model features 8 drivers and 8 receivers, allowing for efficient data handling in communication systems.
It supports HSTL and LVPECL input types, ensuring compatibility with various signaling standards.
The output type of this repeater IC is LVDS, which is essential for low-voltage differential signaling applications.
The IC has a length of 12.5 millimeters and a height of 900 micrometers, making it suitable for compact PCB designs.
It operates within a wide temperature range from -40°C to 85°C, suitable for industrial environments.
Yes, it is designed with robust ESD protection, enhancing the reliability of the device in sensitive applications.
This model is packaged in a 48-pin TSSOP (Thin Shrink Small Outline Package) suitable for surface mount technology.
No, it does not have specific automotive certification and is intended for general electronic applications.
It supports differential input voltage thresholds of +100mV for high and -100mV for low, ensuring high signal integrity.
This repeater IC is ideal for high-speed communication protocols including Firewire, SATA, and SCSI, where low-voltage differential signaling is critical.
