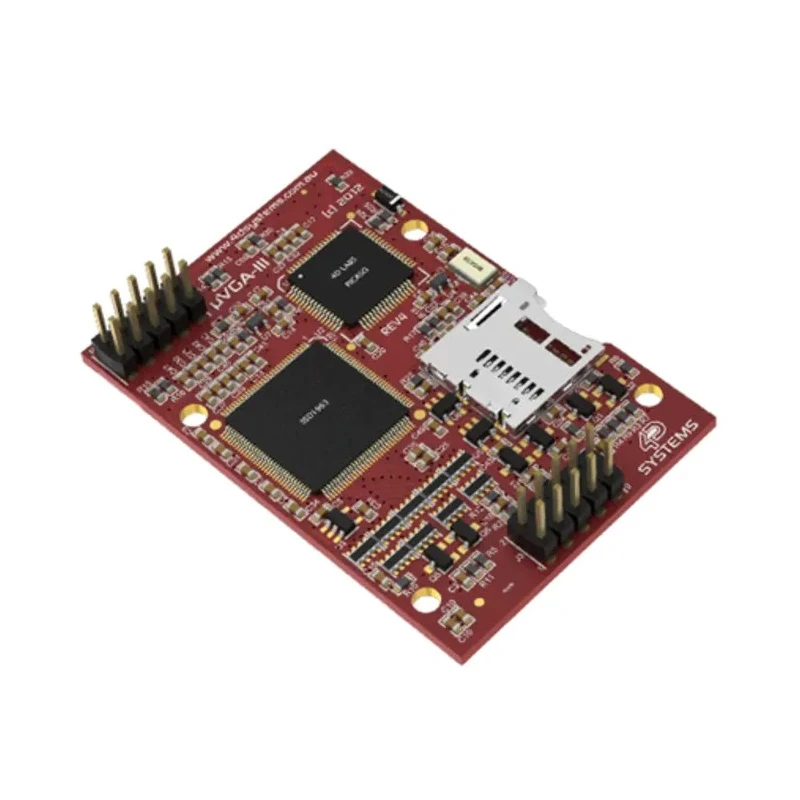

4D Systems VGA-III Standalone Graphics Controller Starter Kit SK-uVGA-III

4D Systems SK-uVGA-III Graphics Display Development Kit is a standalone VGA controller starter kit featuring the advanced PICASO graphics controller. It delivers high-quality graphical output on LCDs and monitors, supporting color depths up to 65,000 colors with resolutions of 320 x 240 pixels (QVGA), 640 x 480 pixels (VGA), and 800 x 480 pixels (WVGA).

The module integrates an extensible virtual engine architecture (EVE) enabling smooth animation, video, icons, and full-color image display. With interfaces such as 4 Wire, SPI, CPU, UART, I2C, and GPIO, it is versatile for various embedded electronic applications.

The kit includes several peripheral features: 13 GPIO pins for flexible input/output control, two asynchronous hardware serial ports for communication, a microSD memory card socket supporting extended storage, 15K bytes of onboard flash memory, and 14K bytes of SRAM for graphics operations. Additionally, it provides a PWM audio pin and 8 timers (16-bit) for precise timing control.

Compact in size (39 mm x 57.2 mm x 11 mm), the device also offers a 15-pin standard VGA connector and a 30-pin header for I/O expansion. It operates on a power supply ranging from 4V to 5.5V and complies with RoHS environmental standards.

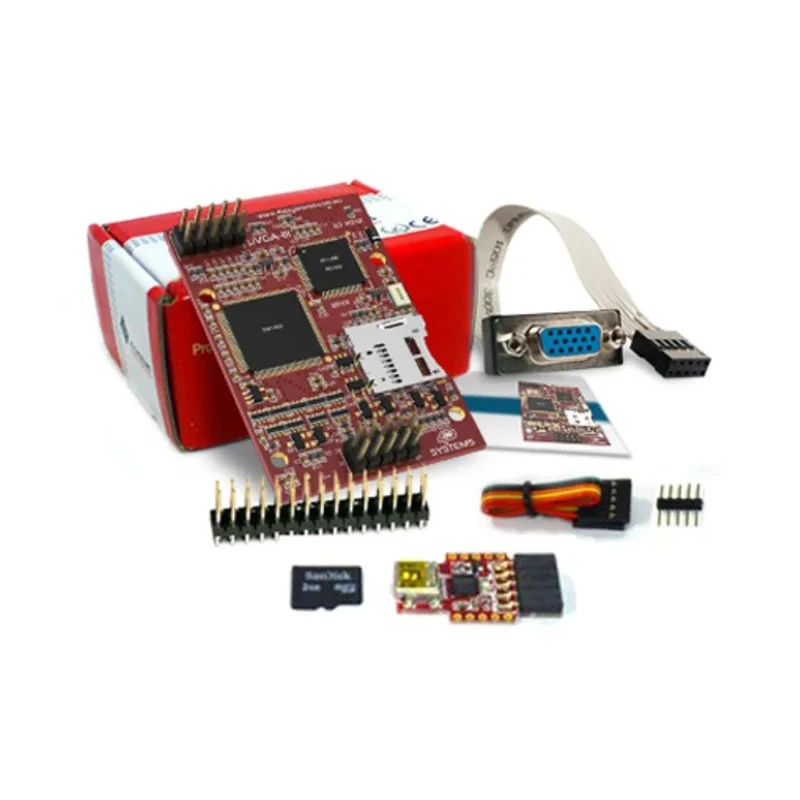

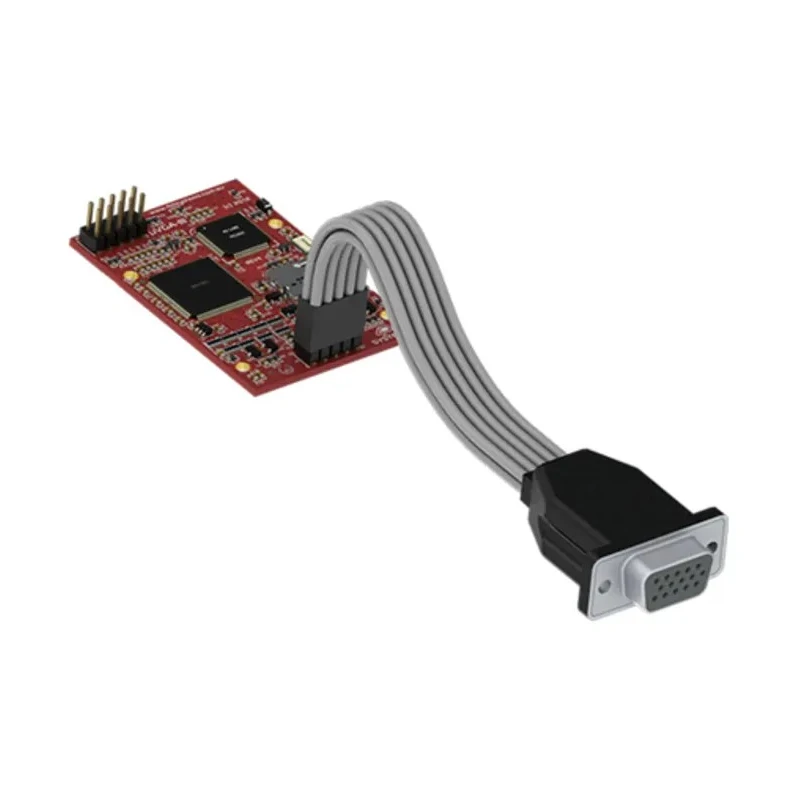

The starter kit package includes a 150 mm 5-way female-to-female jumper cable, a 5-way male-to-male adaptor, a 30-way male SMT pin header, a 15-pin standard VGA connector, and a quick start user guide to assist initial setup.

This versatile display development kit is suitable for industrial, laboratory, embedded systems, and electronic development applications requiring robust graphical interfaces with easy programming via Workshop4 IDE and 4DGL graphics language.

Supports QVGA, VGA, WVGA high-resolution display output. Multiple interface options including SPI, UART, and I2C ensure connectivity flexibility. Onboard memory and microSD support allow for complex graphic data handling.

Compact size and standard VGA connector facilitate integration into existing systems. Includes starter kit accessories for quick assembly and prototyping. Compliant with RoHS for environmental safety. Explore further Display Development Kits and components in the Electronics & Electricals catalog at EnvMart.
