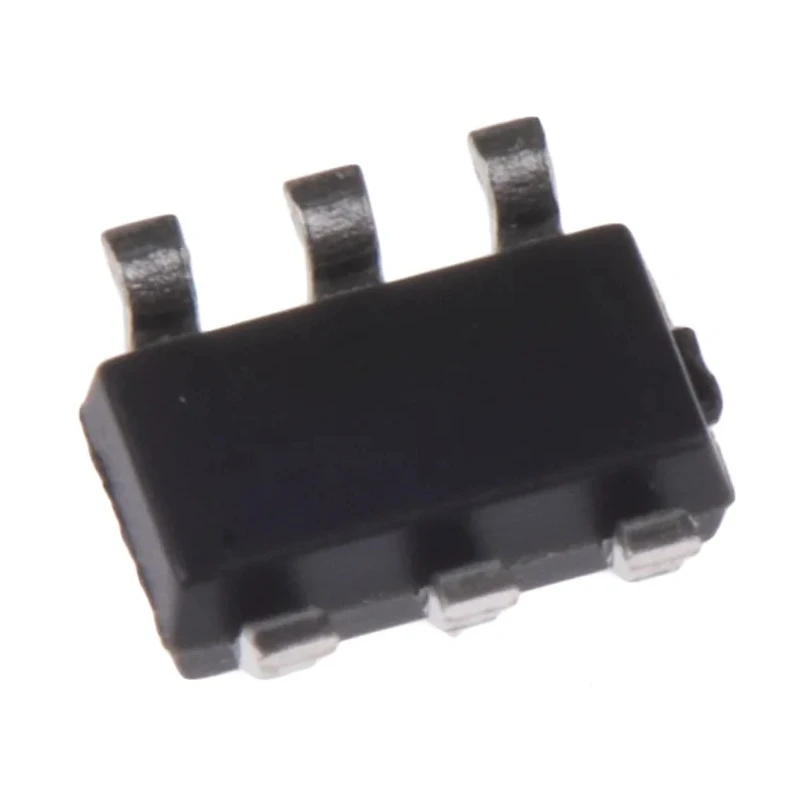

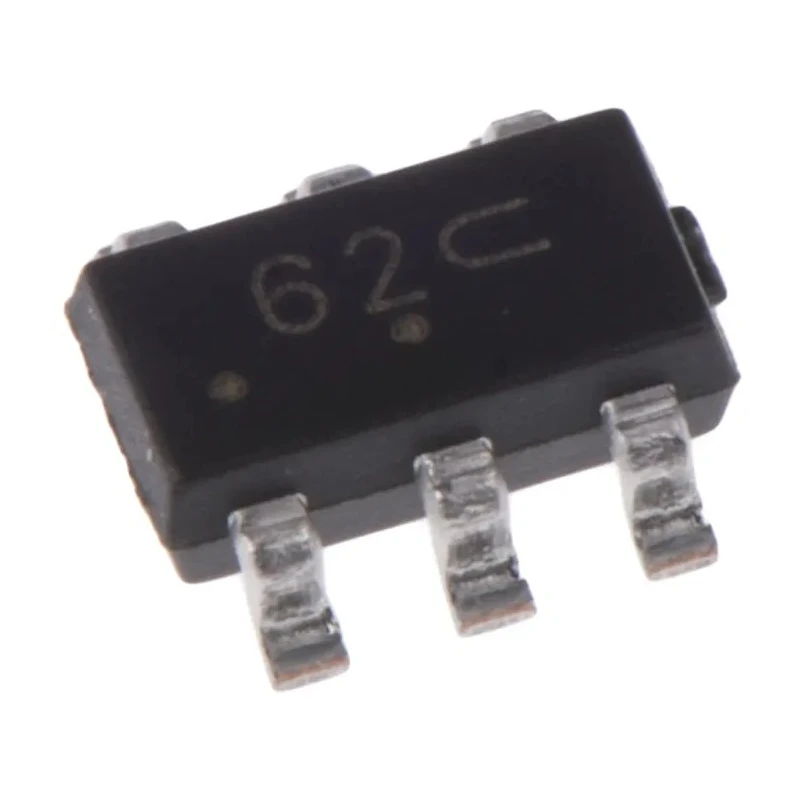

onsemi 2-Element Uni-Directional TVS Diode Array 500W, 6-Pin TSOP NUP2201MR6T1G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 0.94mm |
| Length | 3mm |
| Model | NUP2201MR6T1G |
| Width | 1.5mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | TSOP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 6 |
| Number of Elements per Chip | 2 |
| Clamping Voltage VC | 20V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Complex Array |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Peak Pulse Power Dissipation Pppm | 500W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 25A |
| Maximum Reverse Leakage Current | 5μA |
Key Features
- Offers uni-directional transient voltage suppression for electronic circuit protection.
- Compact TSOP package with 6 pins for efficient PCB layout.
- High peak pulse power dissipation rating of 500W ensures robust surge handling.
- Minimum breakdown voltage of 6V, making it ideal for low-voltage IC protection.
- Features ESD protection compliant with the AEC-Q101 automotive standard.
- Maximum peak pulse current of 25A for reliable performance in transient events.
- Surface mount design facilitates automated placement in mass production.
Product Description
The onsemi NUP2201MR6T1G is a 2-element uni-directional TVS diode array designed for advanced transient voltage suppression and circuit protection. With its high 500W peak pulse power dissipation and uni-directional configuration, this diode array provides robust defense for sensitive semiconductor components against electrical surges and ESD events.
Delivered in a low-profile 6-pin TSOP package, the device is engineered for modern PCB layouts, minimizing space requirements while delivering maximum surge protection. Its minimum breakdown voltage of 6V and maximum reverse stand-off voltage of 5V enable targeted protection for low-voltage integrated circuits and signal lines. ESD compliance meets automotive standards (AEC-Q101), ensuring suitability in both industrial and automotive electronics environments.
The NUP2201MR6T1G excels in applications such as communication interfaces, industrial control systems, consumer electronics, and automotive modules where transient suppression is critical. The array’s two protection elements per chip optimize protection for differential pairs and related lines, making it a versatile solution for designers.
With peak pulse current handling capabilities of up to 25A, the device reliably clamps voltage spikes and preserves data integrity in sensitive circuits. Surface mount capability ensures streamlined installation in automated manufacturing. Its operating temperature range from -40°C to 125°C and ultra-low leakage current (5μA) offer stable performance even in challenging conditions.
The device reflects typical onsemi reliability with no certifications claimed for specific product, and is suitable for demanding industrial, automotive, and commercial electronic platforms. Use cases include circuit boards for networking equipment, control modules, signal processing components, and interface protection in high-density electronics.
To browse additional TVS diode arrays, automotive diodes, and advanced circuit protection solutions, explore the full onsemi range and the TVS Diode Array section in the Semiconductor category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The onsemi NUP2201MR6T1G has a peak pulse power dissipation rating of 500W, ensuring robust surge handling capabilities.
The minimum breakdown voltage for the NUP2201MR6T1G is 6V, making it suitable for low-voltage IC protection.
This diode array can handle a maximum peak pulse current of 25A, which helps in clamping voltage spikes effectively.
The dimensions of this model are 3mm in length, 1.5mm in width, and 0.94mm in height.
The operating temperature range for the NUP2201MR6T1G is from -40°C to 125°C, allowing stable performance in various conditions.
This diode array features a surface mount design, facilitating automated placement in mass production.
Yes, the NUP2201MR6T1G is compliant with the AEC-Q101 automotive standard, making it suitable for automotive applications.
The NUP2201MR6T1G features 2 elements per chip, optimizing protection for differential pairs and related lines.
The clamping voltage (VC) for the NUP2201MR6T1G is 20V, providing effective voltage clamping during transient events.
The maximum reverse stand-off voltage (Vwm) for this diode array is 5V, which helps in protecting sensitive circuits.
The maximum reverse leakage current for the NUP2201MR6T1G is 5μA, indicating low leakage during operation.
This model is suitable for applications such as communication interfaces, industrial control systems, consumer electronics, and automotive modules where transient suppression is critical.
