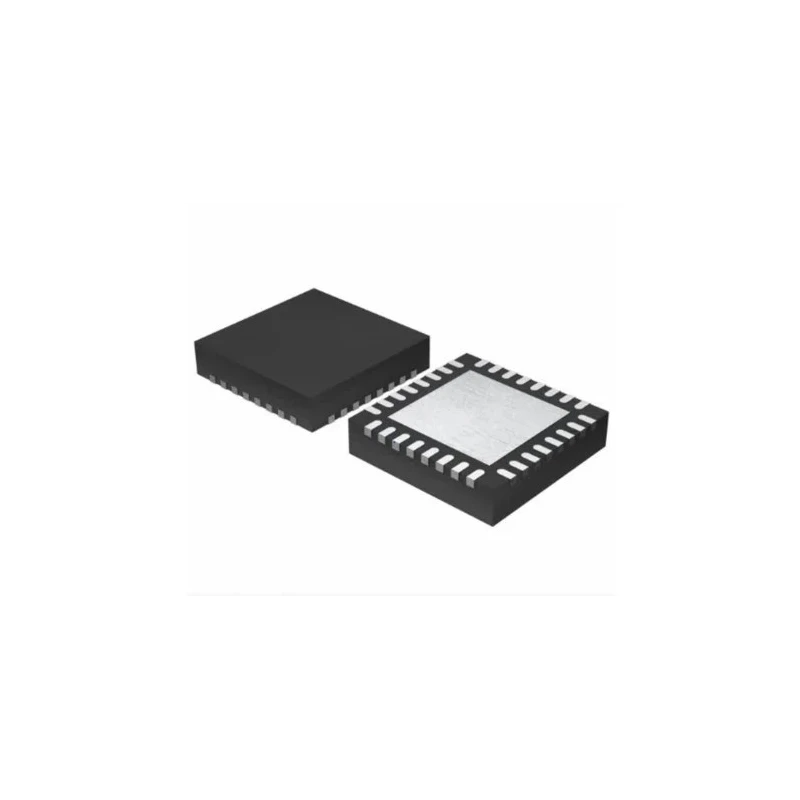

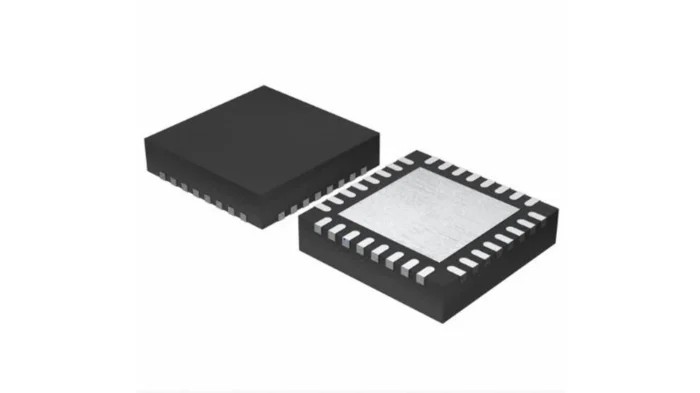

STMicroelectronics Electronic Fuse IC 18V, 60A Output Current, Surface Mount QFN 32 Pin STEF12H60MAPUR
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 950μm |
| Length | 5mm |
| Model | STEF12H60MAPUR |
| Mount Type | Surface |
| Series | STEF12H60M |
| Output Current | 60A |
| Maximum Operating Temperature | 125°C |
| Package Type | QFN |
| Minimum Operating Temperature | -40°C |
| Maximum Input Voltage | 18V |
| Minimum Input Voltage | 5V |
| Pin Count | 32 |
| Fault management | latch-off or auto-retry versions |
Key Features
- Integrated 0.85 mOhm power MOSFET reduces power loss and heat generation.
- Adjustable current limit enhances protection against overcurrent conditions.
- Input undervoltage lockout for safe operational thresholds.
- Accurate current monitoring and temperature sensing for reliable performance.
- Programmable turn-on time allows customization of device response.
- Fault management options include latch-off or auto-retry functionality.
- Device operates within temperature range -40°C to 125°C for wide environmental suitability.
- Compact QFN package with 32 pins facilitating integration into various electronic systems.
Product Description
STMicroelectronics STEF12H60MAPUR Electronic Fuse IC is a highly integrated power management device designed for 12 V DC power line protection with a maximum input voltage of 18V and output current capacity of 60A. It is delivered in a compact QFN package with 32 pins, optimized for surface mount applications.
This electronic fuse integrates a low resistance 0.85 mOhm MOSFET that minimizes conduction losses and supports up to 125°C maximum operating temperature, ensuring reliable performance under demanding conditions. The device includes adjustable current limit settings, undervoltage lockout, and precise monitoring of current and temperature, supporting accurate fault detection and safe operational control.
Designed for industrial and automotive electronics, this fuse IC protects circuits by limiting output current during overloads. Programmable turn-on time and enable/disable pin provide flexible control options. Fault management supports both latch-off and auto-retry modes to suit diverse application needs.
Additional features include internal MOSFET self-diagnostics, parallel device operation capability, and comprehensive thermal protection, making the STEF12H60MAPUR ideal for harsh environments requiring robust power control and safety.
Integrated 0.85 mOhm Power MOSFET for low conduction loss. Adjustable current limit ensures precise overcurrent protection. Input undervoltage lockout protects device and circuit integrity. Accurate current and temperature monitoring signals available.
Fault management configurable as latch-off or auto-retry. Surface mount QFN package with 32 pins supports compact PCB layout. Operating temperature range from -40°C up to 125°C. Supports parallel operation for enhanced current capacity.
This Electronic Fuse IC is suitable for use in industrial power management systems, automotive electronics, and other applications requiring reliable protection and fault detection in power lines.
Explore more electronic components and power management devices from STMicroelectronics and related categories on EnvMart for your electronics projects and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output current of this electronic fuse IC is 60A.
It supports a maximum input voltage of 18V.
The operating temperature range is from -40°C to 125°C.
This model is delivered in a compact QFN package with 32 pins.
The device supports fault management options including latch-off and auto-retry functionality.
The minimum input voltage is 5V.
It includes adjustable current limit settings and input undervoltage lockout for enhanced protection against overcurrent conditions.
The height of the QFN package is 950μm.
Yes, this electronic fuse IC supports parallel operation for enhanced current capacity.
It features an integrated power MOSFET with a resistance of 0.85 mOhm, which reduces power loss and heat generation.
This electronic fuse IC is suitable for industrial power management systems and automotive electronics requiring reliable protection.
It offers accurate current monitoring and temperature sensing for reliable performance and fault detection.
