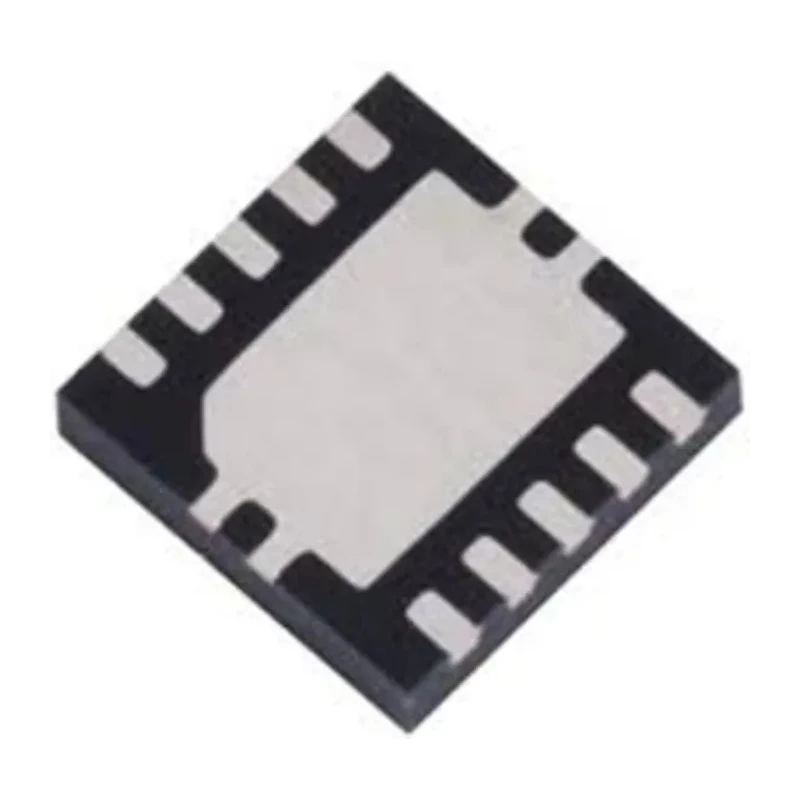

Toshiba Electronic Fuse 18V Surface Mount WSON Package 5A Output Current TCKE805NA,RF(S
Specifications
| Country of Origin | India |
|---|---|
| Brand | Toshiba |
| Height | 750μm |
| Length | 3mm |
| Model | TCKE805NA,RF(S |
| Mount Type | Surface |
| Series | TCKE805 |
| Output Current | 5A |
| Maximum Operating Temperature | 85°C |
| Package Type | WSON |
| Minimum Operating Temperature | -40°C |
| Maximum Input Voltage | 18V |
| Minimum Input Voltage | -0.3V |
| Pin Count | 10 |
Key Features
- This electronic fuse supports a maximum input voltage of 18V.
- It features a minimum operating temperature of -40°C and a maximum of 85°C.
- The device is housed in a compact WSON package with a height of 750μm and length of 3mm.
- Includes reverse current blocking FET control functionality for enhanced protection.
- Provides reusable fuse capability with short circuit and over current limit protection.
- The component has 10 pins suitable for surface mounting.
- It does not conform to automotive standards but is suitable for general industrial and electronic applications.
- Designed for reliable power management in semiconductor circuits.
Product Description
Toshiba TCKE805NA,RF(S Electronic Fuse 18V is a high performance surface mount electronic fuse designed for power management circuits requiring efficient overcurrent protection. Featuring a maximum input voltage rating of 18V and a 5A output current capability, this component ensures circuit safety by limiting current during fault conditions.
The fuse is housed in a WSON package measuring 3mm in length with a 750μm height, compact enough for modern electronic assemblies. It operates reliably in harsh environments with temperature ranges from -40°C to 85°C. The device also incorporates a reverse current blocking FET control which enhances the protection by preventing undesired current flow reversal.
This reusable electronic fuse offers short circuit protection and over current limit features, making it ideal for semiconductor power management ICs and other demanding electronic applications where circuit integrity is critical. With its 10 pins and surface mount design, it fits seamlessly into PCB layouts for industrial, laboratory, and commercial electronics systems.
Though it does not meet automotive standard certifications, it supports a wide variety of industrial electronics use cases including power supplies, electronic controls, and embedded systems requiring resettable overcurrent protection.
This Electronic Fuse supports a maximum input voltage of 18V. It features a minimum operating temperature of -40°C and a maximum of 85°C. The device is housed in a compact WSON package with a height of 750μm and length of 3mm.
Includes reverse current blocking FET control functionality for enhanced protection. Provides reusable fuse capability with short circuit and over current limit protection. The component has 10 pins suitable for surface mounting.
It does not conform to automotive standards but is suitable for general industrial and electronic applications. Designed for reliable power management in semiconductor circuits. EnvMart offers a comprehensive selection of high-quality electronic components including fuses tailored for industrial and commercial power management solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The electronic fuse supports a maximum input voltage of 18V.
This model has an output current capability of 5A.
The WSON package has a length of 3mm and a height of 750μm.
It operates within a temperature range of -40°C to 85°C.
The component features 10 pins suitable for surface mounting.
The reverse current blocking FET control functionality enhances protection by preventing undesired current flow reversal.
Yes, it provides reusable fuse capability with short circuit and over current limit protection.
It is suitable for general industrial and electronic applications, particularly in power management circuits.
No, it does not conform to automotive standards but is suitable for general industrial use.
It uses a surface mount design.
The minimum input voltage is -0.3V.
The country of origin for this electronic fuse is India.
