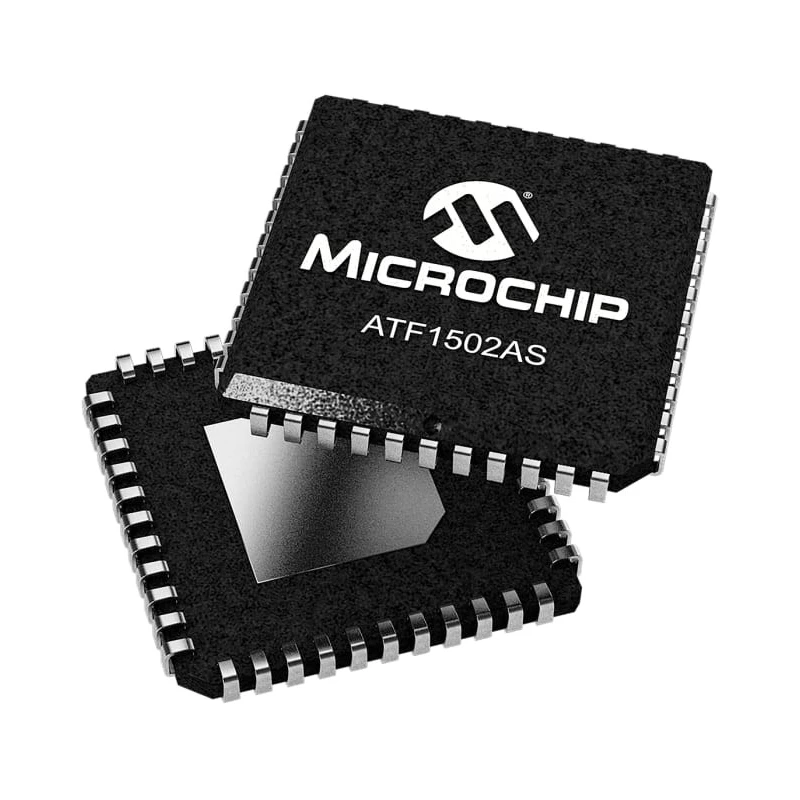

Microchip Complex Programmable Logic Device , ATF15xx EEPROM, 32 Macro Cells, 32 I/O, 25 ns, 2 Logic ATF1502ASL-25AU44

Free Delivery in India | Lowest Global Shipping Charges

Microchip Complex Programmable Logic Device , ATF15xx EEPROM, 32 Macro Cells, 32 I/O, 25 ns, 2 Logic ATF1502ASL-25AU44

Name: Microchip Complex Programmable Logic Device , ATF15xx EEPROM, 32 Macro Cells, 32 I/O, 25 ns, 2 Logic ATF1502ASL-25AU44
Brand: Microchip
SKU: 93373
Price: 5.83 USD
Availability: InStock



Category Programmable Logic ICs Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	1.05mm
Length	10.1mm
Model	ATF1502ASL-25AU44
Mount Type	Surface
Memory type	EEPROM
Series	ATF15xx
Maximum Operating Temperature	85°C
Package Type	TQFP
Minimum Operating Temperature	-40°C
Pin Count	44
Maximum Supply Voltage	5.25V
Minimum Supply Voltage	4.75V
Maximum Propagation Delay Time	25ns
Maximum Operating Frequency	125MHz
Number of Macro Cells	32
Number of User I/Os	32
Number of Logic Blocks/Elements	2

Key Features

ATF15xx series EEPROM-based CPLD with 32 macro cells for flexible digital designs.
32 user I/O pins provide broad connectivity for signals and peripherals.
125 MHz maximum operating frequency enables high-speed logic operations.
Supports in-system programmability for rapid prototyping and production.
Surface mount TQFP package with 44 pins suits modern PCB layouts.
25 ns propagation delay time for fast response in critical applications.
Operates on supply voltage range of 4.75 - 5.25 V, compatible with common power rails.
Wide operating temperature range from -40°C to 85°C for industrial environments.

Product Description

Microchip ATF1502ASL-25AU44 is a complex programmable logic device (CPLD) engineered for demanding embedded and industrial applications. Featuring ATF15xx EEPROM architecture, the device includes 32 macro cells and supports 32 user input/output pins to accommodate a wide range of digital functions. The maximum propagation delay time of 25 ns ensures rapid response, making it suitable for time-critical logic operations in automated systems, communications, and instrumentation.

32 macro cells and 32 user I/Os provide flexible logic development for industrial, laboratory, and commercial hardware. EEPROM memory technology offers persistent storage with re-programmability, making design iterations seamless.

In-system programmability allows direct configuration on target boards, simplifying deployment and upgrades. Surface mount configuration (TQFP, 44 pins, 10.1 mm length, 1.05 mm height) facilitates dense PCB integration and automated assembly.

Supports wide operating voltage (4.75 - 5.25V) and temperature range (-40°C to 85°C), suited for harsh environments in manufacturing and automation. Individual output enable control enables complex interfacing scenarios, ensuring adaptability in multi-signal applications.

Typical uses for the ATF1502ASL-25AU44 CPLD include digital signal processing in industrial control systems, laboratory instrumentation, automated test equipment, and custom logic circuits for commercial electronics. Its EEPROM memory and in-system programmability ensure long-term versatility and easy upgrades.

The device enables designers to ideate, create, and collaborate across projects that require quick prototyping, robust hardware security, and adaptability to evolving digital requirements. Installation is straightforward with surface mount TQFP packaging, and it withstands demanding operating conditions.

Recommended for engineers and system integrators in industrial automation, embedded development, laboratory equipment design, and commercial electronics. Packaged and ready for efficient production and assembly processes.

Widely used in programmable logic device applications including signal routing, protocol conversion, and hardware management tasks. Browse more Microchip programmable logic devices and industrial semiconductor solutions in the EnvMart catalog for advanced electronics projects.
