Lattice Semiconductor Complex Programmable Logic Device ispMACH EEPROM 128 Cells, 64 I/O, 7.5 ns, 36 Logic LC4128V-75TN100C

Lattice Semiconductor LC4128V-75TN100C is a Complex Programmable Logic Device from the ispMACH series, featuring EEPROM memory technology. It includes 128 macro cells and 64 user I/O pins, supporting intricate logic designs with 36 logic blocks. The device has a maximum propagation delay of 7.5 ns and operates at frequencies up to 400 MHz. It supports in-system programmability for convenient configuration after deployment.

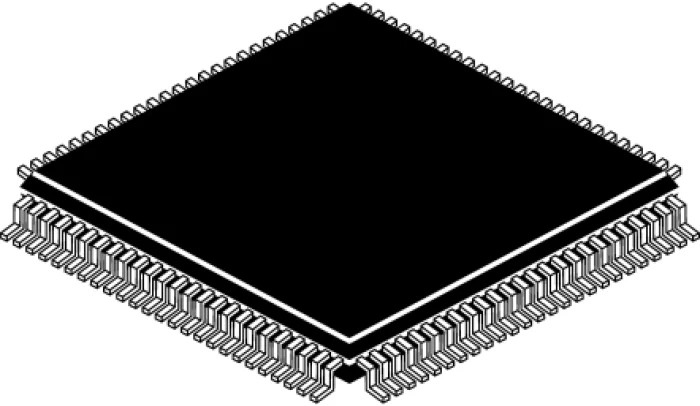

Its surface mount package is a 100-pin thin quad flat package (TQFP), designed for efficient PCB layout with dimensions of 14 mm length and 1.4 mm height. Operating voltages range from 3 V minimum up to 3.6 V maximum, with operational temperatures from 0°C to 90°C, making it suitable for various industrial and automotive applications. The device incorporates individual output enable control to enhance its integration flexibility.

Certified to automotive standard AEC-Q100, this CPLD is ideal for reliable use in automotive and industrial systems. Its EEPROM-based architecture ensures non-volatile storage of programmed logic functions, facilitating consistent operation and easy reprogramming. The compact size and high performance make it suitable for embedded systems, digital signal processing, and programmable control tasks.

Additional features include re-programmability support and design compatibility with multiple PCB design tools. This device is a robust solution for engineers developing programmable logic solutions for commercial, industrial, and automotive applications requiring rapid logic processing and configurability.

Utilizes EEPROM memory technology for reliable data retention. Supports in-system programmability for flexible application use. Maximum propagation delay time is 7.5 nanoseconds, enabling fast signal processing. Features 36 logic blocks/elements for complex logic implementation.

Designed for surface mount with a TQFP package type and 100 pins. Operating temperature range from 0°C to 90°C suitable for industrial environments. Individual output enable control enhances circuit design flexibility. Supports automotive standard AEC-Q100, indicating robust reliability.

Maximum supply voltage is 3.6 V with a minimum supply voltage of 3 V. Compact form factor with a height of 1.4 mm and length of 14 mm. Explore the comprehensive range of programmable logic devices at EnvMart for advanced electronics design requirements.
