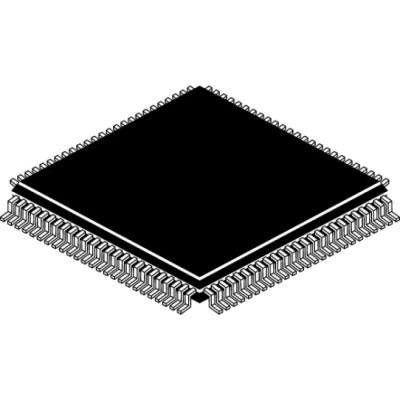

Lattice Semiconductor Complex Programmable Logic Device ispMACH EEPROM 256 Cells, 64 I/O, 7.5 ns, 3V-3.6V LC4256V-75TN100C

Lattice Semiconductor LC4256V-75TN100C is a high-performance complex programmable logic device from the ispMACH family designed with EEPROM technology. It consists of 256 macro cells and 64 user input/output pins, suitable for complex logic implementations in industrial and automotive electronic systems.

This device supports in-system programmability and re-programmability, enabling flexible updates in embedded applications. It operates at a high maximum frequency of 400MHz and offers a low propagation delay time of 7.5 nanoseconds, which is critical for timing-sensitive circuit designs.

Housed in a compact TQFP package with 100 pins and surface mount technology, the device facilitates easy integration on printed circuit boards while maintaining a small footprint. Its operating supply voltage ranges from 3.0V to 3.6V, compatible with a wide variety of logic levels and power requirements.

The module features individual output enable control, giving the designer fine control over signal output, enhancing complex logic routing scenarios. It adheres to the automotive AEC-Q100 standard, making it suitable for demanding automotive electronics and industrial automation environments requiring temperature resilience from 0°C up to 90°C.

Applications include programmable logic implementations, custom control systems, and advanced embedded device integrations within industrial, automotive, and electronic manufacturing sectors. Its robust build and flexible programmability make the LC4256V-75TN100C an essential component for system designers seeking reliable high-speed logic solutions.

Built on the ispMACH family with 256 macro cells for complex logic functions. Features 64 user I/Os enabling versatile connectivity. EEPROM memory ensures in-system programmability and re-programmability support. Operates at a maximum frequency of 400MHz with a propagation delay of 7.5 nanoseconds.

Compact TQFP package with 100 pins facilitates surface mounting and reliable integration. Works within a voltage range from 3V minimum to 3.6V maximum supply voltage. Suitable for automotive applications compliant with AEC-Q100 standard.

Operating temperature range spans 0°C to 90°C ensuring durability under industrial environments. Includes individual output enable control for flexible logic operations. Physical dimensions of 14mm length and 1.4mm height provide a low profile design.
