Lattice Semiconductor Complex Programmable Logic Device ispMACH EEPROM 32 Cells, 30 I/O, 7.5 ns, 36 Logic LC4032V-75TN44C

Lattice Semiconductor LC4032V-75TN44C is a complex programmable logic device (CPLD) from the ispMACH family designed for versatile electronic applications. This device incorporates 32 macro cells, enabling integration of multiple logic functions with high density and performance. With 30 user input/output pins and 36 logic blocks, it supports complex designs requiring multiple programmable logic elements.

It operates at a maximum propagation delay time of 7.5 nanoseconds, ensuring fast signal processing, and supports maximum operating frequency up to 400 MHz. The device uses EEPROM memory type which allows for re-programmability and in-system programming, providing flexibility for design modifications during development or deployment.

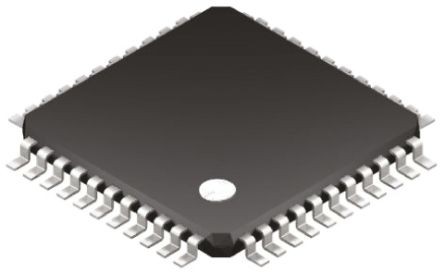

Designed for surface mounting, the LC4032V-75TN44C comes in a TQFP package housing 44 pins, promoting easy PCB integration and space-saving layouts. Operating voltage ranges from 3 V minimum to 3.6 V maximum, compatible with standard logic levels. The device also offers individual output enable control, allowing precise management of output signals.

It is suitable for automotive-grade applications and meets AEC-Q100 standards for reliability. The component functions reliably between 0°C and 90°C, making it adaptable to various environmental conditions. Physical dimensions include 10 mm length and 1 mm height, contributing to compact system designs.

This CPLD is ideal for industrial, electronic component design, and research & development environments where programmable logic with high speed and reliability is critical. It supports a range of applications including telecommunications, automotive electronics, and embedded systems.

Operates on a supply voltage range of 3 to 3.6 V. Supports in-system programmability for flexible applications. Comes in a TQFP surface mount package with 44 pins. Certified to automotive standard AEC-Q100. Handles maximum operating frequency up to 400 MHz.

Features individual output enable control for precise signal management. Operates within temperature range from 0°C to 90°C. Compact physical dimensions with a 10 mm length and 1 mm height. Discover more Programmable Logic ICs and semiconductor products for advanced electronics projects at EnvMart.
