Lattice Semiconductor Complex Programmable Logic Device ispMACH EEPROM 64 Cells, 32 I/O, 7.5 ns, 36 Labs LC4064V-75TN48C

Lattice Semiconductor LC4064V-75TN48C is a complex programmable logic device (CPLD) from the ispMACH family, incorporating EEPROM memory technology. It features 64 macro cells and 32 user input/output pins that enable sophisticated programmable logic implementations for electronic design applications.

This device supports high-speed operation with a maximum propagation delay time of 7.5 nanoseconds and a maximum operating frequency of 400 MHz, making it suitable for demanding control and timing-critical industrial, automotive, and consumer electronic systems.

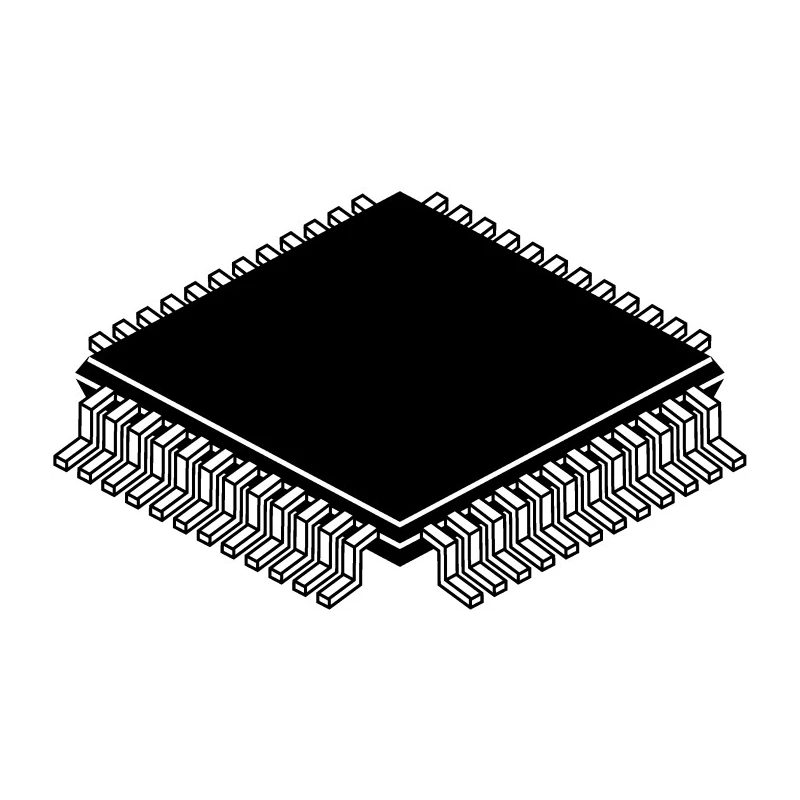

The LC4064V-75TN48C uses a Thin Quad Flat Package (TQFP) with 48 pins in a surface mount configuration. This compact footprint (1 mm height, 7 mm length) facilitates integration into space-constrained printed circuit boards. The device operates over a temperature range from 0°C to 90°C and supports a supply voltage between 3 V and 3.6 V, enabling compatibility with common power rail standards.

Designed to automotive standard AEC-Q100, this CPLD ensures robust performance in automotive and harsh environments. Additional features include individual output enable control and full in-system programmability, allowing dynamic reconfiguration during device operation.

This programmable logic IC is ideal for use in industrial automation, automotive electronics, telecommunications, and other complex digital systems requiring flexible logic expansion and customization.

Maximum propagation delay time of 7.5 ns. 36 logic blocks/elements for versatile logic implementation. EEPROM memory for reliable reprogramming. In-system programmability support. Surface mount TQFP package with 48 pins.

Operating voltage: 3 to 3.6 V. Operating temperature range: 0°C to 90°C. Automotive standard compliance: AEC-Q100. Maximum operating frequency: 400 MHz. Individual output enable control. Set your designs apart with the LC4064V-75TN48C, combining performance and programmability in a compact, automotive-grade programmable logic device.
