| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.05mm |
| Length | 6.6mm |
| Model | 74LCX245MTCX |
| Mount Type | Surface |
| Output type | 3 State |
| Series | 74LCX245 |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 20 |
| Number of Elements per Chip | 1 |
| Maximum Supply Voltage | 3.6V |
| Logic Family | LCX |
| Logic Function | Buffer |
| Minimum Supply Voltage | 2V |
| Maximum High Level Output Current | -24mA |
| Maximum Propagation Delay Time @ CL | 9ns |
| Direction Type | Bi-Directional |
| Maximum Low Level Output Current | 24mA |
| Translation | Bi-Directional |

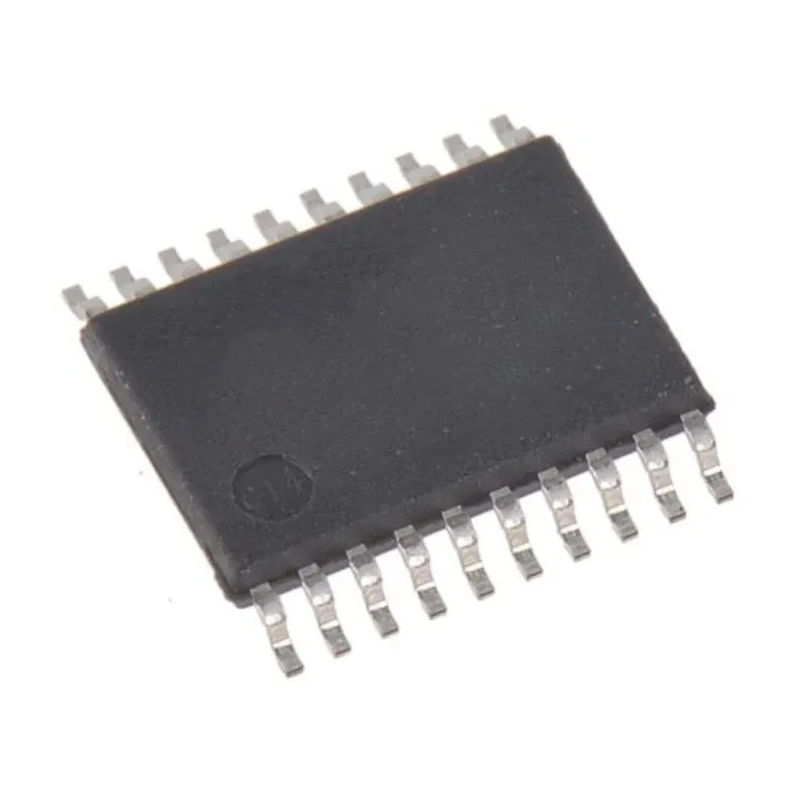

onsemi 74LCX245MTCX Voltage Level Shifter Buffer 20-Pin TSSOP is engineered for industrial and electronic applications requiring reliable voltage translation and buffering. This bi-directional device supports low voltage systems operating between 2.3V and 3.6V while interfacing seamlessly with 5V signal environments.
The device integrates eight non-inverting buffers with tri-state outputs designed for bus oriented architectures ensuring robust data direction control via the T/R# pin. The OE# pin facilitates disabling outputs by placing ports in a high impedance state, enabling safe live insertion and withdrawal scenarios without signal disruption.
Fabricated with advanced CMOS technology, the 74LCX245MTCX delivers high-speed performance with propagation delay as low as 7.0 ns at 3.3V VCC, while maintaining ultra-low power consumption. Its ±24 mA output drive capability supports demanding load conditions.
The device complies with strict ESD standards, providing protection of over 2000V human body model and 200V machine model thresholds. Operating temperature ranges from -40°C to 85°C make this device suitable for automotive and industrial environments excluding certified automotive applications.
Features like noise and EMI reduction circuitry enhance signal integrity in complex electronic systems. The compact TSSOP package with minimal footprint (1.05 mm height and 6.6 mm length) allows easy integration into densely packed PCBs.
Eight non-inverting bi-directional buffers. 3-STATE outputs with direction and output enable controls. 5V tolerant inputs and outputs. Low power dissipation CMOS technology. High-speed operation with max 7.0 ns propagation delay.
±24 mA output drive current capability. ESD protection exceeding 2000V human body model. Operating temperature range -40°C to 85°C.
This voltage level shifter buffer is ideal for electronic component, power management, data communication, and embedded system applications where voltage translation and buffering are required. Compatible across multiple industrial, laboratory, and commercial electronics systems.
