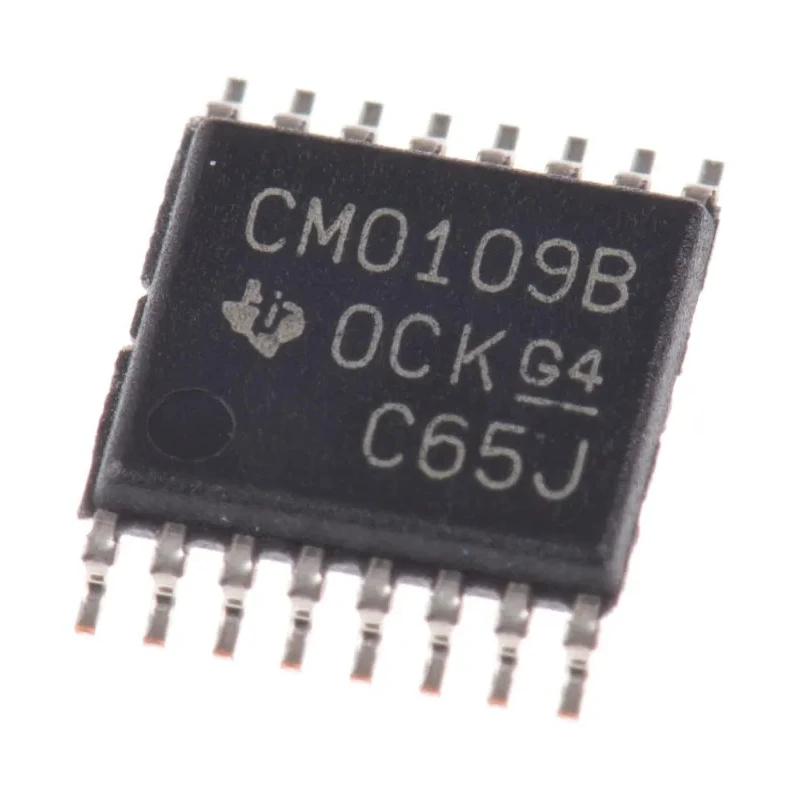

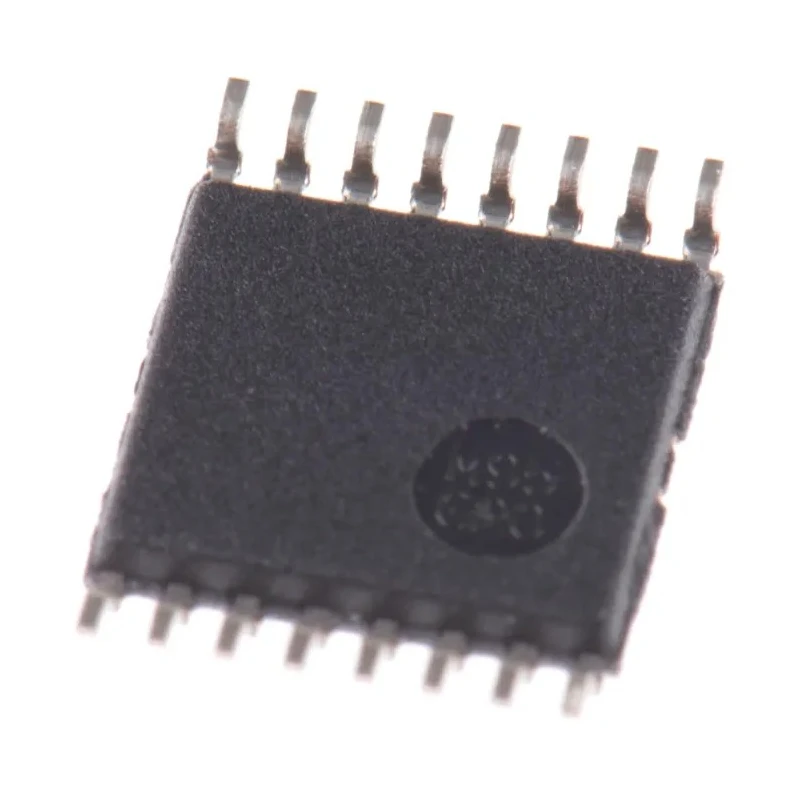

Texas Instruments Voltage Level Shifter 4 Elements 16-Pin TSSOP CD40109BPW

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments Voltage Level Shifter 4 Elements 16-Pin TSSOP CD40109BPW

Name: Texas Instruments Voltage Level Shifter 4 Elements 16-Pin TSSOP CD40109BPW
Brand: Texas Instruments
SKU: 407512
Price: 2.04 USD
Availability: InStock



Category Voltage Level Shifter Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	1.15mm
Length	5mm
Model	CD40109BPW
Mount Type	Surface
Output type	3 State
Series	CD40109
Maximum Operating Temperature	125°C
Package Type	TSSOP
Minimum Operating Temperature	-55°C
Pin Count	16
Number of Elements per Chip	4
Maximum Supply Voltage	18V
Logic Family	4000
Logic Function	Voltage Level Shifter
Minimum Supply Voltage	3V
Maximum High Level Output Current	-4.2mA
Maximum Propagation Delay Time @ CL	600ns
Direction Type	Bi-Directional
Maximum Low Level Output Current	4.2mA
Translation	Voltage Level Shifter
Wide operating voltage range	3 to 18V

Key Features

Wide operating voltage range from 3V to 18V allows versatile application.
Surface mount package type TSSOP with 16 pins ensures compact PCB footprint.
Maximum propagation delay time at CL is 600ns for efficient signal translation.
Outputs feature 3-state logic with maximum low level output current of 4.2mA.
Industrial temperature range operation from -55°C to 125°C for harsh environments.
Logic family 4000 CMOS technology provides low supply current and high noise immunity.
Bi-directional translation capability simplifies voltage level shifting tasks in mixed-voltage systems.
Compact dimensions with height of 1.15mm and length of 5mm support dense PCB layouts.

Product Description

The Texas Instruments CD40109BPW is a high-performance Voltage Level Shifter designed for translating signals between different voltage domains in electronic applications. It belongs to the 4000 logic family CMOS series and incorporates 4 voltage level shifting elements in a 16-pin TSSOP surface mount package.

With a wide supply voltage range of 3V to 18V, this bi-directional level shifter supports various mixed voltage systems commonly found in industrial, laboratory, and electronics manufacturing environments. The device offers a maximum propagation delay of 600 nanoseconds, delivering timely and reliable signal translation critical for synchronous digital circuits.

Its 3-state output type and maximum low-level output current of 4.2 mA facilitate robust interfacing with different loads. The operating temperature range from -55°C to 125°C ensures that the component remains stable under harsh environmental conditions, including industrial automation and instrumentation.

Compact physical dimensions of 1.15 mm height and 5 mm length make the CD40109BPW suitable for space-constrained PCB designs. It is ideal for applications requiring voltage translation among microcontrollers, sensors, and other logic ICs operating at varied supply voltages in telecommunications, power management, and embedded systems.

Though this device does not carry special automotive approvals, it boasts reliable performance and adherence to industry standards within general electronic circuits and signal translation tasks.

Wide 3 to 18 V operating voltage range supports multiple logic levels. Bi-directional translation for flexible signal interfacing between different voltage domains. Compact 16-pin TSSOP surface mount package for space-saving PCBs.

4000 CMOS logic family ensures low supply current and high noise immunity. Industrial-grade temperature range (-55°C to 125°C) for harsh environment use. Fast propagation delay enhances speed and accuracy in signal processing.

Three-state outputs enable effective bus interfacing and isolation. 4 translation elements in a single chip reduce component count and complexity. Discover comprehensive Texas Instruments semiconductor components on EnvMart for advanced electronics design and industrial applications.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The CD40109BPW operates within a voltage range of 3V to 18V, allowing it to support various mixed voltage systems.

The maximum propagation delay time at CL for the CD40109BPW is 600 nanoseconds, ensuring efficient signal translation.

This model incorporates 4 voltage level shifting elements within a single chip, reducing component count and complexity.

It features a 3-state output type, which facilitates effective bus interfacing and isolation.

This voltage level shifter operates within an industrial temperature range of -55°C to 125°C, suitable for harsh environments.

The dimensions of this model are 1.15 mm in height and 5 mm in length, making it compact for PCB layouts.

The maximum low-level output current for the CD40109BPW is 4.2 mA, allowing it to interface with different loads effectively.

It belongs to the 4000 logic family, which provides low supply current and high noise immunity.

Yes, this model supports bi-directional translation, simplifying voltage level shifting tasks in mixed-voltage systems.

The CD40109BPW comes in a TSSOP surface mount package type, which ensures a compact PCB footprint.

The maximum high-level output current for the CD40109BPW is -4.2 mA, enabling it to drive various loads effectively.

This voltage level shifter is ideal for applications requiring voltage translation among microcontrollers, sensors, and other logic ICs in telecommunications and power management.
