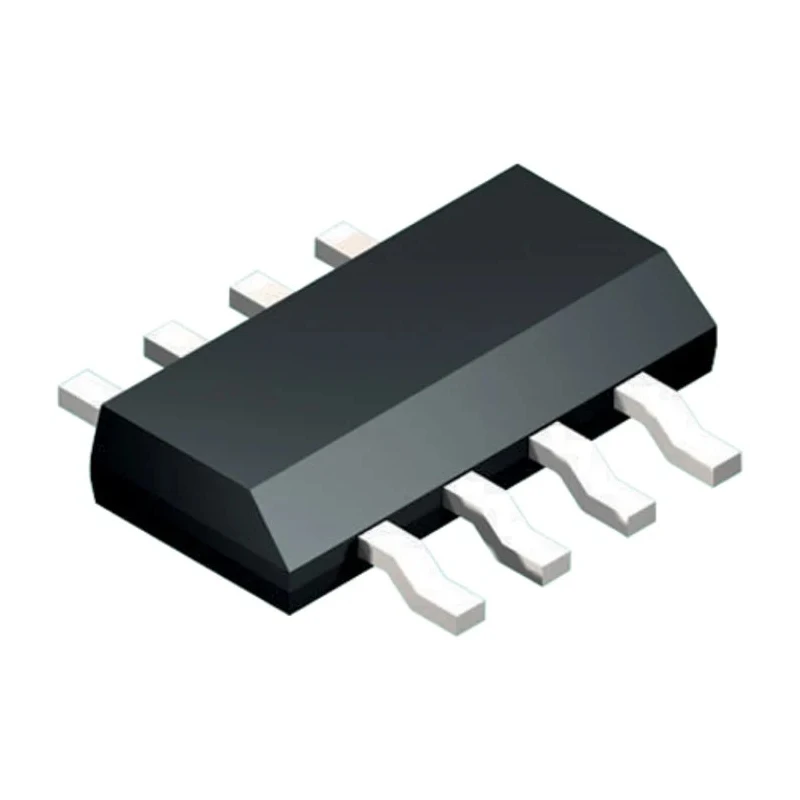

Texas Instruments Voltage Level Shifter Bus Transceiver 8-Pin Surface Mount, 1.65 to 5.5 V Operating Voltage SN74LVC2T45DCTR

Texas Instruments SN74LVC2T45DCTR is a Voltage Level Shifter bus transceiver designed for modern semiconductor applications requiring voltage translation between different logic levels. This 8-pin surface mount device operates efficiently across a broad voltage span from 1.65 V to 5.5 V, enabling compatibility in diverse low-voltage CMOS and TTL logic environments.

The bi-directional bus transceiver contains a single element per chip and features 3-state outputs. It supports input compatibility with LVTTL and TTL logic families, while providing LVCMOS outputs. This makes it well suited for interfacing between different voltage domains in embedded, industrial, or consumer electronic systems.

With a maximum propagation delay of only 4.4 ns at specified load conditions, the SN74LVC2T45DCTR ensures fast signal transmission essential for timing-critical designs. The device is housed in a compact surface mount package measuring approximately 2.4 mm in length, 2.1 mm in height, and 800 μm in width, facilitating dense PCB layouts.

Its electrical characteristics include a maximum low-level output current of 32 mA and a maximum high-level output current of -32 mA, providing strong drive capability. Rated for an operating temperature range from -40°C to 85°C, the component is suitable for demanding industrial and commercial applications.

Part of the SN74LVC2T family, this voltage level translator ensures seamless logic level shifting and signal integrity. It is ideal for use in semiconductor electronics, communication systems, and embedded device circuits.

Operates with a wide voltage range from 1.65 V to 5.5 V suitable for low-voltage applications. Bi-directional bus transceiver with a single logic element per chip. Provides 3-state outputs and supports LVTTL/TTL input compatibility with LVCMOS output.

Maximum propagation delay time of 4.4 ns for rapid signal translation. Compact surface mount package measuring 2.4 mm length, 2.1 mm height, and 800 μm width. Maximum low-level output current of 32 mA and maximum high-level output current of -32 mA.

Industrial operating temperature range from -40°C to 85°C. Part of the SN74LVC2T series offering reliable voltage level translation for electronic components. Ideal for semiconductor and electronic circuit applications requiring level shifting.
