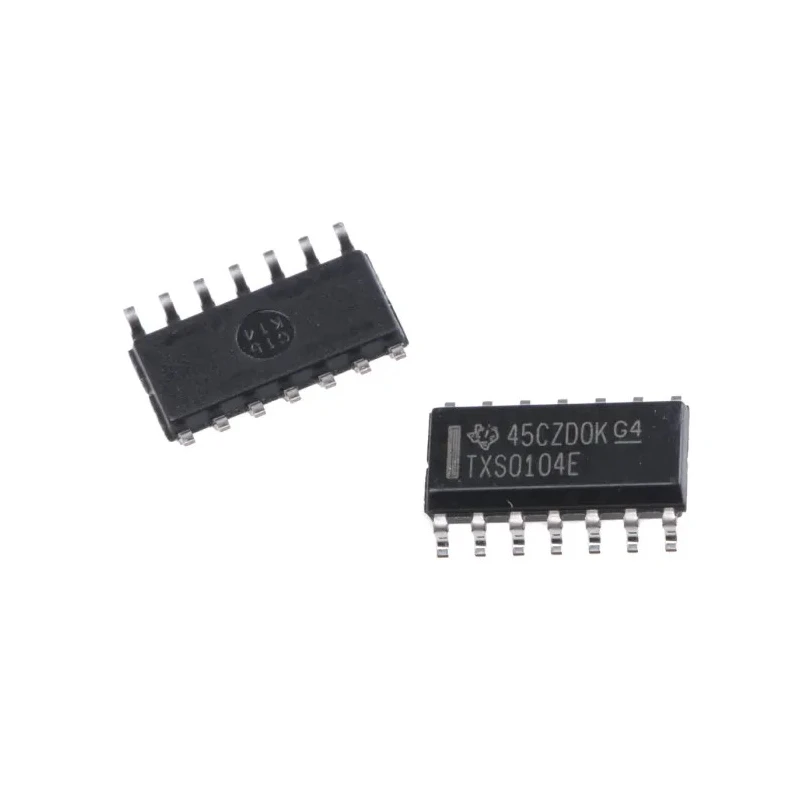

Texas Instruments Voltage Level Shifter 4-Channel Bi-Directional Translator 14-Pin SOIC TXS0104ED

Texas Instruments model TXS0104ED is a high-performance Voltage Level Shifter designed for bi-directional translation of up to four logic signal channels. Housed in a compact 14-pin SOIC surface-mount package with dimensions 8.65 mm length and 1.58 mm height, this device efficiently translates voltage levels between 1.65 V and 5.5 V supply ranges, making it suitable for modern mixed-voltage systems.

The TXS0104ED supports an open drain output type, delivering maximum low level output current of 1 mA and maximum high level output current of -0.02 mA, ensuring flexible interfacing options. It features a maximum propagation delay time of 6.8 ns at specified load capacitance, allowing reliable and fast signal translation without significant latency.

Operating reliably over a temperature range from -40°C to 85°C, it meets demanding industrial requirements. This voltage level translator is widely applied in electronic components, semiconductor devices, printed circuit board design, and embedded system interfacing where different logic voltage levels must be harmonized.

Designed for surface mount assembly, the device enhances space-efficient PCB layouts and improves mechanized assembly processes. It belongs to the TXS0104E series, recognized for high-quality and dependable voltage level shifting capabilities by Texas Instruments.

Supports bi-directional voltage translation for up to 4 channels. Operates with supply voltages from 1.65 V to 5.5 V. Maximum propagation delay of 6.8 ns ensures fast signal translation. Compact and surface mount 14-pin SOIC package for efficient PCB integration.

Wide operating temperature range from -40°C to +85°C. Open drain output type allows flexible interfacing. Ideal for electronics, industrial, laboratory, and manufacturing applications.

This product listing provides engineers and designers with a reliable voltage level shifting solution suitable for diverse electronic control and signal interfacing tasks. Discover more components and detailed specifications by exploring the Electronics & Electricals category at EnvMart.
