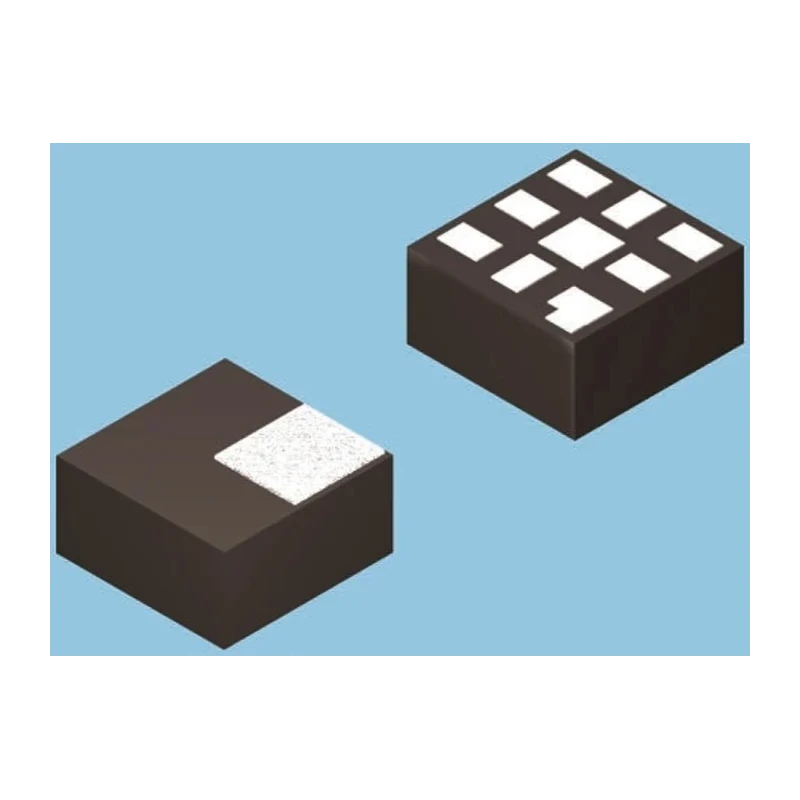

onsemi Voltage Level Shifter Bi-Directional Logic Level Translator 1 Element 8-Pin UMLP FXMAR2102UMX

onsemi FXMAR2102UMX is a high-performance Bi-Directional Voltage Level Shifter and Logic Level Translator designed to translate voltage levels between different logic families. It features a single logic element per chip housed in an 8-pin UMLP surface mount package. The device operates over a supply voltage range of 1.65V to 5.5V, making it suitable for a wide array of industrial and electronic applications where logic signal compatibility is required.

The FXMAR2102UMX offers a maximum propagation delay of 7 nanoseconds at a specified load capacitance (CL), ensuring fast and reliable signal translation. It supports 3-state output logic, which facilitates flexible interfacing with various microcontrollers and digital systems.

The device is designed for rugged environments, capable of operating in temperatures from minus 40°C up to 85°C, which suits it well for use in industrial automation, embedded electronics, laboratory instruments, and communication devices. Its low height of 525 micrometers and compact length of 1.4 millimeters help reduce PCB space requirements and improve system design.

This product is manufactured under the FXMAR2102 series by onsemi, with no specific automotive qualification, targeting general-purpose semiconductor applications. It ensures a maximum output current of 50 mA at low logic level and -50 mA at high logic level, supporting efficient device performance.

Typical applications include signal voltage translation in mixed-signal systems, industrial controls, data acquisition, and embedded device interfacing where logic level compatibility is critical. This component supports electrical and electronics manufacturers and system integrators aiming to achieve high modularity and signal integrity in their circuits.

Operates between 1.65V and 5.5V supply voltage. Propagation delay time of 7 nanoseconds for fast switching. Three-state output for versatile logic interfacing. Surface mount UMLP package for compact board design. Temperature range from -40°C to 85°C supports harsh environments.

Single element chip simplifies logic design. Maximum 50 mA output current in both low and high states. No automotive qualification, ideal for general industrial use. Compact dimensions with 525μm height and 1.4mm length.

This onsemi FXMAR2102UMX Voltage Level Shifter is an essential component for designers seeking reliable and efficient voltage translation solutions for complex electronic and industrial systems. Explore further electronic components and translators in EnvMart to enhance your system designs and optimize performance.
