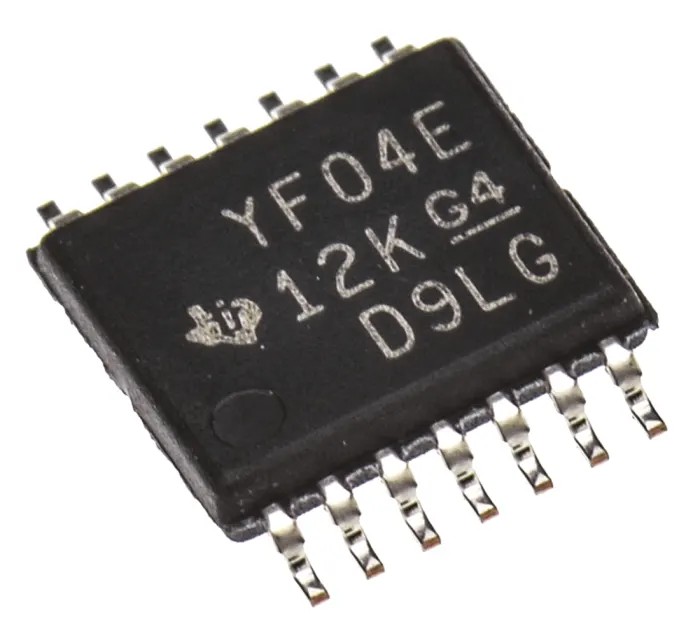

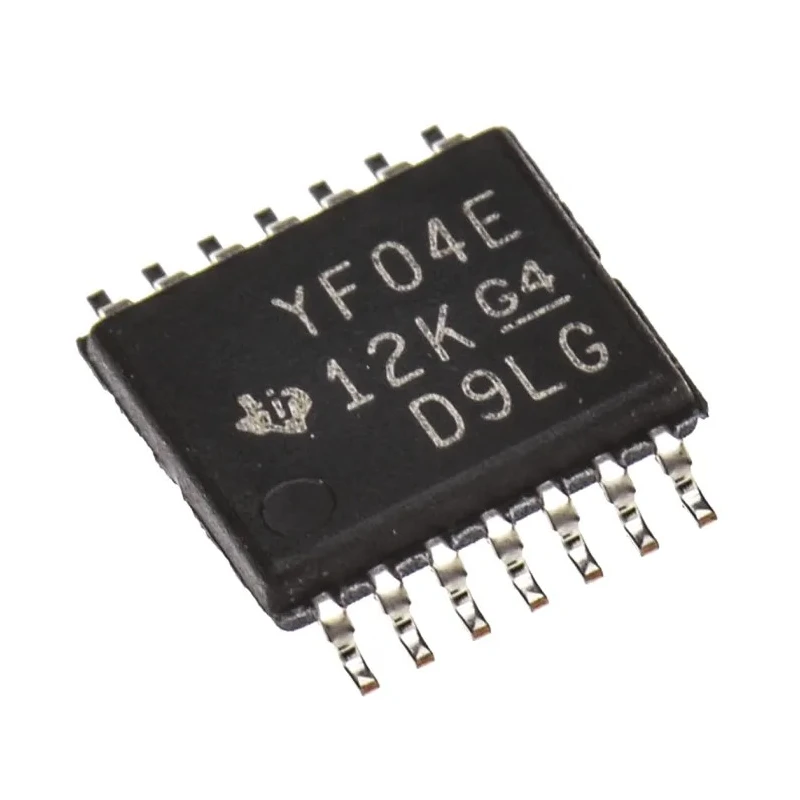

Texas Instruments Voltage Level Shifter 4 Elements 14-Pin TSSOP Bi-Directional TXS0104EPWR

Texas Instruments TXS0104EPWR Voltage Level Shifter is a bi-directional voltage level translator incorporating 4 elements in a compact 14-pin TSSOP surface-mount package. It supports voltage levels from 1.65V up to 5.5V, making it suitable for interfacing between different logic voltage families in modern electronic circuits. The device provides reliable, low-delay translation with a maximum propagation delay time of 6.8 nanoseconds at the specified load conditions, essential for high-speed digital designs.

This voltage level translator uses an open-drain output type and can source and sink currents with maximum low output current at 1 mA, and minimal high-level output current leakage. It operates across a wide ambient temperature range from -40°C to 85°C, ensuring performance in varied industrial environments.

The TXS0104EPWR is built for surface mounting on PCBs using a 14-pin TSSOP package, with physical dimensions of 5 mm length and 1.15 mm height, facilitating compact PCB layouts.

Common industrial and electronic applications include digital logic interfacing, communication systems, and embedded controller integration in devices requiring voltage compatibility across subsystems.

Supports bi-directional voltage level shifting for interfacing different logic voltages. Operates with a minimum supply voltage of 1.65V and maximum of 5.5V. Maximum propagation delay time of 6.8 nanoseconds at specified load conditions.

Open-drain output type with a maximum low-level output current of 1 mA and maximum high-level output current of -0.02 mA. Compact surface-mount TSSOP package measuring 5 mm in length and 1.15 mm in height. Operates reliably across a temperature range from -40°C to 85°C.

Series TXS0104E with no automotive standard compliance. Designed for use in logic voltage translation applications in industrial and electronic systems. Explore additional Texas Instruments semiconductor products and Voltage Level Shifters on EnvMart for comprehensive industrial electronics solutions.
