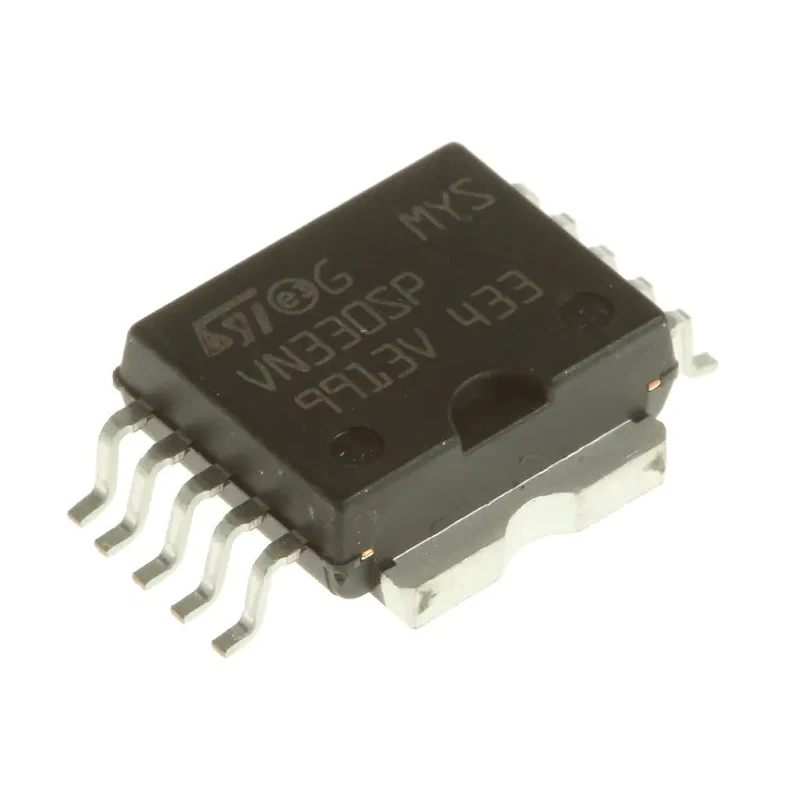

STMicroelectronics High Side 4 Solid State Relay Power Switch IC 10-Pin PowerSO Package VN330SP-E

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics High Side 4 Solid State Relay Power Switch IC 10-Pin PowerSO Package VN330SP-E

Name: STMicroelectronics High Side 4 Solid State Relay Power Switch IC 10-Pin PowerSO Package VN330SP-E
Brand: STMicroelectronics
SKU: 357132
Price: 10.92 USD
Availability: InStock



Category Power Switch ICs Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	3.65mm
Length	9.5mm
Model	VN330SP-E
Width	7.6mm
Mount Type	Surface
Number of inputs	4
Maximum Operating Temperature	150°C
Package Type	PowerSO
Minimum Operating Temperature	-40°C
Operating Current	700mA
Number of outputs	4
Standards/Approvals	IEC 61131-2
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	714-1161PBrand: STMicroelectronicsManufacturers Part No.: VN330SP-E
Pin Count	10
Maximum Supply Voltage	45V
Minimum Supply Voltage	1V
Switch On Resistance RdsOn	0.4Ω

Key Features

Integrates logic interface and protection features with the power stage for high-side configurations.
Offers a low on resistance (RdsOn) of 0.4Ω for minimal power loss.
Supports 4 outputs and 4 inputs enabling multiple load control.
Operates within a wide temperature range from -40°C to 150°C.
Rated for a maximum supply voltage of 45V and operating current of 700mA.
Compact surface-mount design with dimensions of 9.5 mm length, 7.6 mm width, and 3.65 mm height.
Complies with IEC 61131-2 standards ensuring reliability and safety.
Ideal for industrial, power management, and electronic component applications.

Product Description

STMicroelectronics VN330SP-E is an intelligent High Side Power Switch incorporating logic interfaces, drivers, diagnostic and protection features merged with a power stage optimized for high-side load switching.

This Solid State Relay Power Switch IC includes 4 outputs and 4 inputs within a 10-Pin PowerSO surface-mount package, facilitating compact and efficient integration into power management circuits.

With a low switch-on resistance of 0.4Ω, it minimizes power dissipation and improves overall system efficiency. The device supports operating voltages from 1V minimum supply up to 45V maximum supply, and an operating current of 700mA, suited to moderate power loads.

Thermal performance is designed to handle operation in harsh industrial environments with a temperature tolerance of -40°C to 150°C, meeting IEC 61131-2 safety standards. Its dimensions (9.5 mm length, 7.6 mm width, 3.65 mm height) and surface mount configuration optimize PCB space usage for modern electronic designs.

Integrates logic interface and high-side power stage for seamless control. Low RdsOn value reduces energy losses. Multiple input/output channels enhance flexibility in circuit design. Wide operating temperature ensures reliability in various environments.

Compliant with industrial safety standard IEC 61131-2. Compact PowerSO package supports space-saving PCB layouts. Suitable for use in industrial automation, power management, and electronic component applications.

This STMicroelectronics device is a reliable choice for industrial and laboratory applications requiring efficient power switching control. Explore more options in Power Management ICs and Power Switch ICs on EnvMart for comprehensive industrial solutions.
