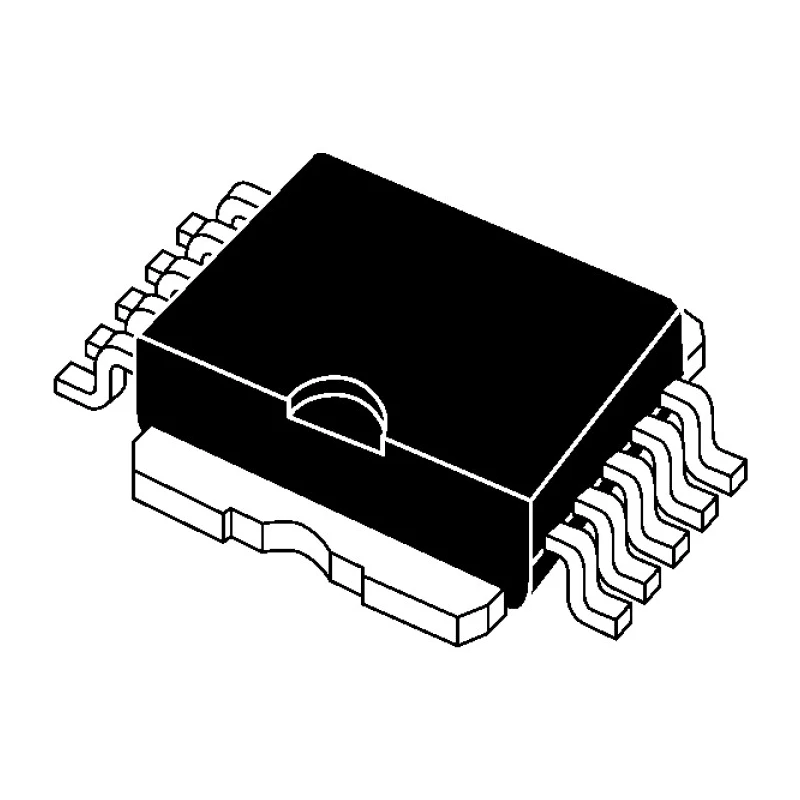

STMicroelectronics High Side 4 Output Solid State Relay Power Switch IC 10-Pin PowerSO VN340SPTR-E
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 3.65mm |
| Length | 7.6mm |
| Model | VN340SPTR-E |
| Width | 9.5mm |
| Mount Type | Surface |
| Number of inputs | 4 |
| Series | VN340SP-E |
| Maximum Operating Temperature | 125°C |
| Package Type | PowerSO |
| Minimum Operating Temperature | -40°C |
| Operating Current | 1mA |
| Number of outputs | 4 |
| Standards/Approvals | IEC 61131-2 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 714-1173Brand: STMicroelectronicsManufacturers Part No.: VN340SPTR-EDistrelec Article No.: 303-74-386 |
| Pin Count | 10 |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 1V |
| Switch On Resistance RdsOn | 0.2Ω |
Key Features
- Features 4 outputs and 4 inputs for versatile control.
- Low switch on resistance of 0.2 ohms ensures efficient operation.
- Operates within a voltage range from 1V to a maximum of 36V.
- Designed for surface mount with compact 10-pin PowerSO package.
- Wide operating temperature from -40°C to 125°C for reliability in harsh environments.
- IEC 61131-2 standard compliant for industrial applications.
- Low operating current of 1mA minimizes power consumption.
- Intelligent high side power switch technology with integrated diagnostics and protection.
Product Description
STMicroelectronics VN340SPTR-E is a high side 4-output solid state relay power switch integrated circuit in a 10-pin PowerSO package designed for advanced power management. This intelligent power switch integrates the logic interface, driver circuits, and diagnostic protection to deliver robust high side switching capabilities for controlling loads in electronic and industrial systems.
The device offers a low switch on resistance (RdsOn) of 0.2 ohms, minimizing power loss and heat generation during operation. With a broad supply voltage operating range of 1V minimum up to 36V maximum, VN340SPTR-E suits a wide variety of power system requirements.
The IC supports 4 separate inputs and outputs, enabling flexible control of multiple loads. It is designed for surface mounting to enable efficient PCB assembly and compact hardware design. The compact dimensions of 7.6mm length, 9.5mm width, and 3.65mm height make it convenient for space-constrained applications.
This power switch IC is compliant with IEC 61131-2 standards, ensuring reliable performance under industrial conditions, including extreme temperatures from -40°C to 125°C. Its low operating current of 1mA further contributes to power efficiency in embedded systems.
4 outputs and 4 inputs for multi-channel control. Low RdsOn of 0.2 Ω reduces losses. Voltage range 1V to 36V. 10-pin PowerSO surface-mount package. Operating temperature range -40°C to 125°C. IEC 61131-2 industrial standard compliant.
Low operating current of 1mA. Compact dimensions for PCB design. Integrated diagnostics and protection features. Suitable for automotive and industrial applications.
STMicroelectronics VN340SPTR-E is optimal for power management in automotive electronic control units, industrial automation, HVAC controls, and other applications where high side switching and solid state reliability are critical. It enables designers to build safer, more efficient power control solutions.
Browse our comprehensive selection of Power Switch ICs from STMicroelectronics and other leading semiconductor manufacturers to meet your industrial electronics needs.
