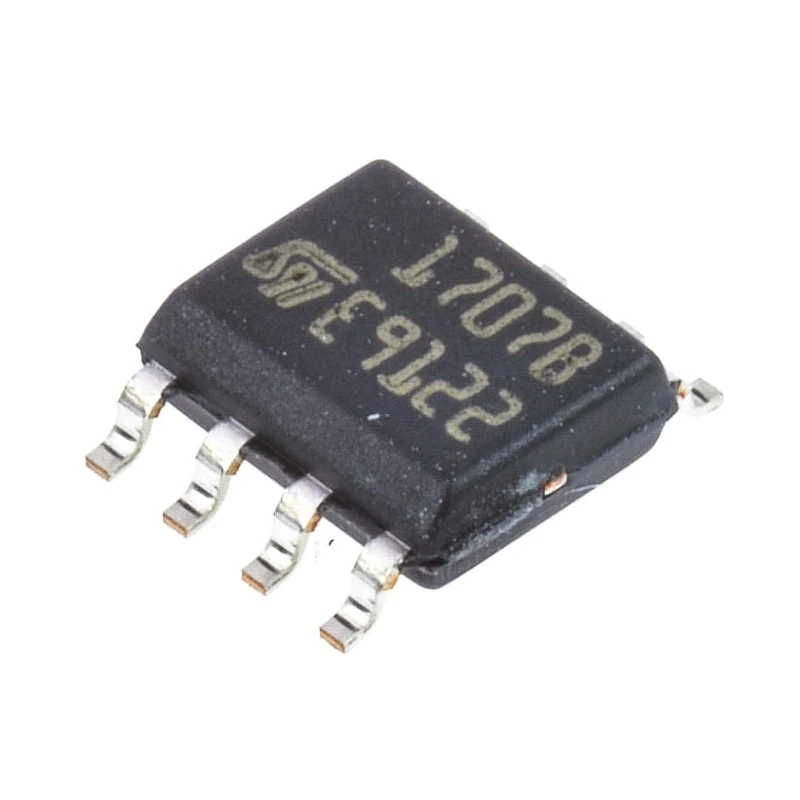

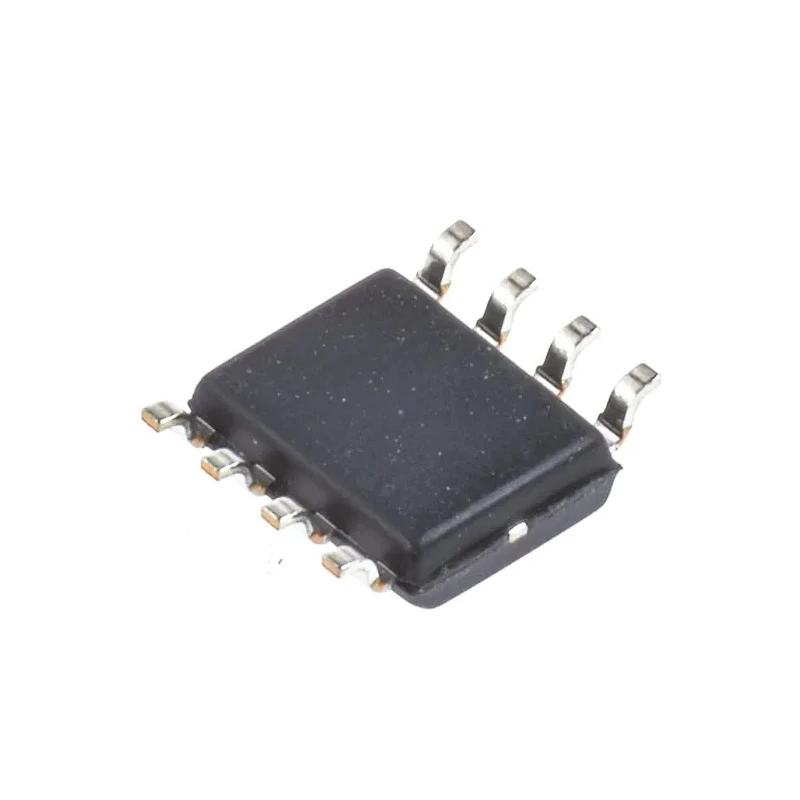

STMicroelectronics 0.5A Intelligent High and Low Side Power Switch IC 8-Pin SOIC TDE1707BFP
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.25mm |
| Length | 5mm |
| Model | TDE1707BFP |
| Width | 4mm |
| Mount Type | Surface |
| Number of inputs | 1 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -25°C |
| Operating Current | 500mA |
| Number of outputs | 2 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 714-7897PBrand: STMicroelectronicsManufacturers Part No.: TDE1707BFP |
| Pin Count | 8 |
| Maximum Supply Voltage | 50V |
| Minimum Supply Voltage | -10V |
| Two output configurations | Load to Ground (High Side Mode) and Load to positive Supply Voltage (Low side Mode) |
Key Features
- Operates from a minimum supply voltage of -10V up to a maximum of 50V.
- Equipped with 2 outputs and 1 input for versatile switching configurations.
- Surface mount package in an 8-pin SOIC form factor for compact PCB integration.
- Operating current rated at 500mA with thermal shutdown protection.
- Features adjustable delay on switch-on and indicator status LED driver.
- Provides supply and output reversal protection for enhanced device safety.
- Designed to operate within -25°C to 85°C temperature range.
- Suitable for automotive applications, compliant with no specific automotive standards.
Product Description
STMicroelectronics TDE1707BFP Power Switch IC is an intelligent device featuring high and low side switching capabilities. Designed for power management in electronic systems, this 8-pin SOIC package IC is suitable for controlling loads with up to 0.5A operating current and supports supplies up to 50V.
This IC includes built-in thermal shutdown and protection against supply and output reversal, ensuring safe operation in demanding environments. The device supports two output configurations allowing flexible use in various circuit designs: Load to Ground (High Side Mode) and Load to positive Supply Voltage (Low Side Mode).
Additional features include an adjustable delay at switch-on, an indicator LED driver for status monitoring, and a +5V regulated auxiliary voltage. With a compact footprint of 5mm x 4mm x 1.25mm, the TDE1707BFP is ideal for space-constrained applications on surface mount boards.
Operating temperature ranges from -25°C to 85°C, making it suitable for industrial, automotive, and general electronic use cases. This product is designed to increase reliability and efficiency in power control circuits within semiconductor, power management, and electronic components sectors.
Operates between -10V and 50V supply voltage. Two output configurations enable versatile circuit design. Thermal shutdown enhances device safety. Adjustable switch-on delay for controlled load application. Indicator LED driver for easy status visualization.
Compact SOIC 8-pin surface mount package. Suitable for both automotive and industrial power applications. Wide operating temperature range (-25°C to 85°C). Support for intelligent power switching in embedded systems. Discover more in the Electronics & Electricals category at EnvMart, featuring top semiconductor components from STMicroelectronics and other leading manufacturers.
Explore more products in our Power Switch ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TDE1707BFP has an operating current rated at 500mA.
It operates from a minimum supply voltage of -10V up to a maximum of 50V.
This model supports two output configurations: Load to Ground (High Side Mode) and Load to positive Supply Voltage (Low Side Mode).
The operating temperature range for the TDE1707BFP is from -25°C to 85°C.
It comes in an 8-pin SOIC package with dimensions of 5mm x 4mm x 1.25mm.
Yes, it is equipped with built-in thermal shutdown protection for enhanced safety during operation.
The indicator LED driver allows for easy status visualization of the device's operation.
Yes, it is suitable for automotive applications, although it does not comply with specific automotive standards.
The height of this model is 1.25mm.
This power switch IC has 1 input.
It uses surface mount technology for installation.
The TDE1707BFP is manufactured in India.
