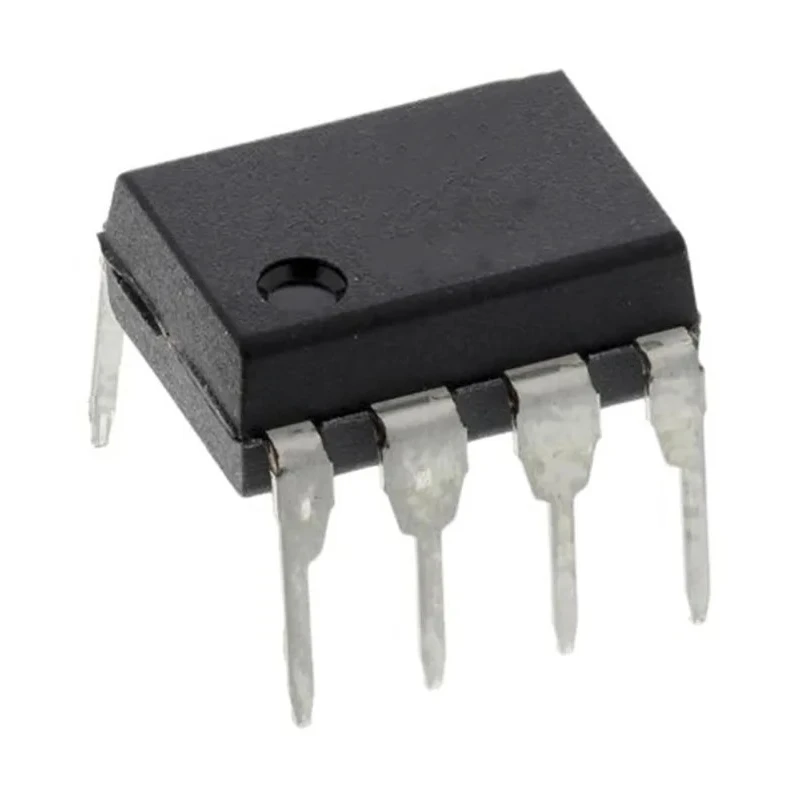

Renesas Electronics Programmable Timer Circuit 1 Internal Timer, 8-Pin PDIP, 2V to 18V Supply, ICM7555IPAZ

Renesas Electronics ICM7555IPAZ is a programmable timer circuit featuring a single internal timer integrated within an 8-pin PDIP package. It supports a wide supply voltage range from 2V to 18V and operates reliably within the temperature limits of -25°C to 85°C.

This device is a highly stable 555 timer controller capable of producing accurate timing pulses. In monostable operation mode, the timing delay is controlled by one external resistor and capacitor, while in astable mode, the frequency and duty cycle are accurately controlled with two external resistors and one capacitor.

The compact dimensions (length 10.16 mm and height 4.95 mm) and through-hole mount type make this timer easy to integrate into various printed circuit boards for industrial, electronic development, manufacturing, and educational applications.

The timer circuit is RoHS compliant, supporting environmentally safe electronics manufacturing standards. Through-hole mounting for robust board assembly. Wide operating temperature range from -25°C to 85°C. AC/DC supply voltage range of 2V to 18V.

Single internal timer for precise timing control. Compact 8-pin PDIP package design. Suitable for clock, timing, and frequency generation circuits across industrial and electronic domains.

This product is ideal for use in industrial electronics, timing controls, frequency generation, and electronic prototyping, supporting a broad array of timing applications where stability and precision are crucial.
