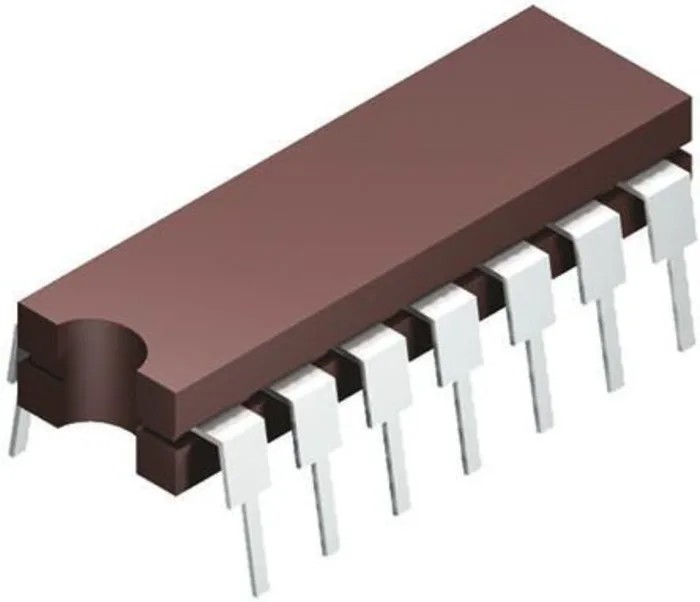

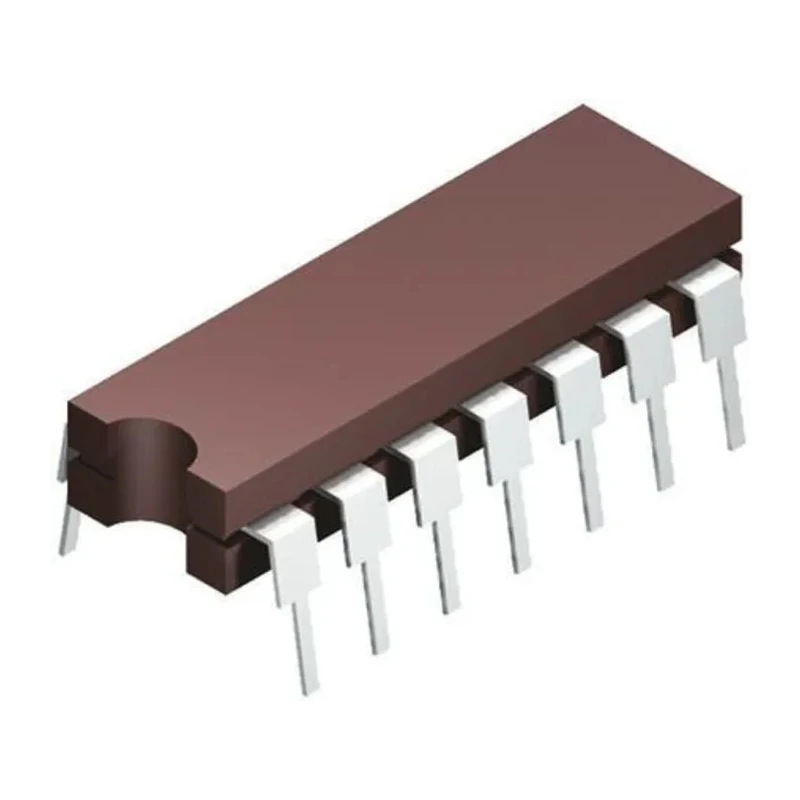

Renesas Electronics Programmable Timer Circuit Dual 1MHz 14-Pin PDIP 2 Timers ICM7556IPDZ

Renesas Electronics ICM7556IPDZ is a high-precision programmable timer circuit featuring two internal timers operating at 1MHz frequency within a 14-pin PDIP (Plastic Dual In-line Package) for through-hole mounting. This dual timer IC is designed for stability and accuracy in timing pulse generation and control across a broad voltage range from 2V to 18V, making it suitable for both low and high voltage electronic applications.

Operating reliably from -25°C to 85°C, this timer IC is engineered for diverse temperature conditions ensuring consistent performance in industrial and commercial uses. Its compact size with dimensions of 19.68mm length and 4.95mm height facilitates minimal PCB footprint.

This RoHS-compliant device does not meet automotive standards but fits well in general electronics, power management circuits, and embedded systems that require stable monostable or astable operation modes. The dual timers can be configured to produce accurate timing pulses controlled externally by resistors and capacitors, allowing flexibility for a wide variety of timing intervals from microseconds to days.

The ICM7556IPDZ's 14-pin PDIP package offers easy handling and soldering for through-hole circuit designs, enhancing durability and assembly convenience in prototypes and production runs. It is an ideal choice for developers requiring precise timing generation with low noise and stable frequency characteristics.

The IC integrates two internal timer circuits providing dual timing outputs for multi-functional use. The operation voltage spans from 2V minimum to 18V maximum supporting various power supply conditions. Robust operating temperature range from -25°C to 85°C suits indoor and controlled environment deployments.

Compact PDIP package simplifies mounting and circuit board layout with 14 pins for connectivity. Supports both monostable and astable timer circuit configurations enabling customizable pulse width and frequency generation.

Applications include automation, signal processing, timing generators, delay circuits, and pulse-width modulation controllers. Fully RoHS compliant ensuring environmental safety and regulatory conformity. Not suitable for automotive applications as per specified standards.

Explore the Renesas Electronics range and other semiconductor components to optimize your electronic designs for performance and reliability with the ICM7556IPDZ programmable Timer Circuit and related timer ICs on EnvMart.
