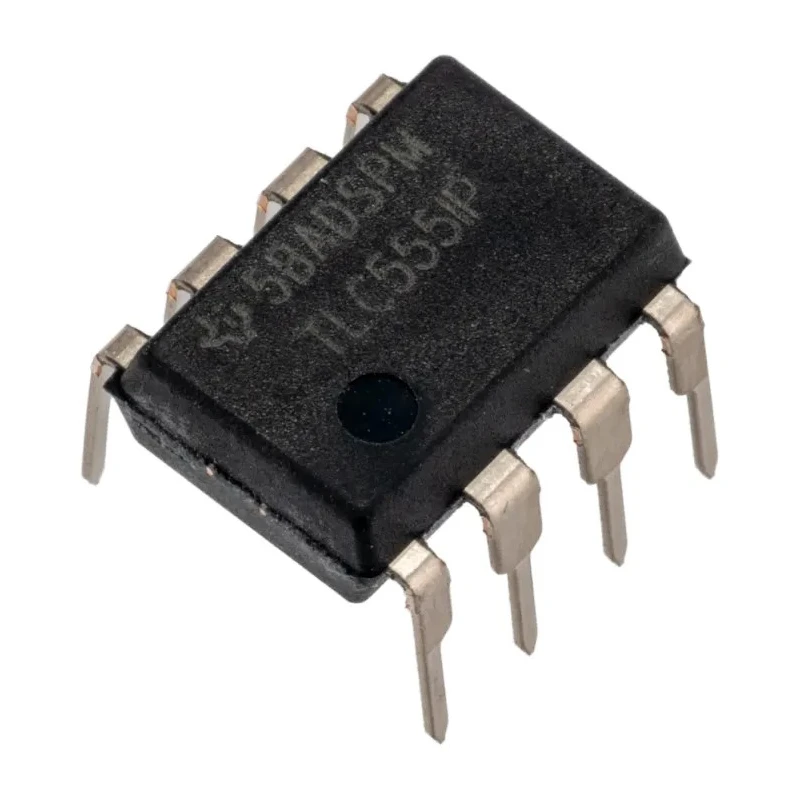

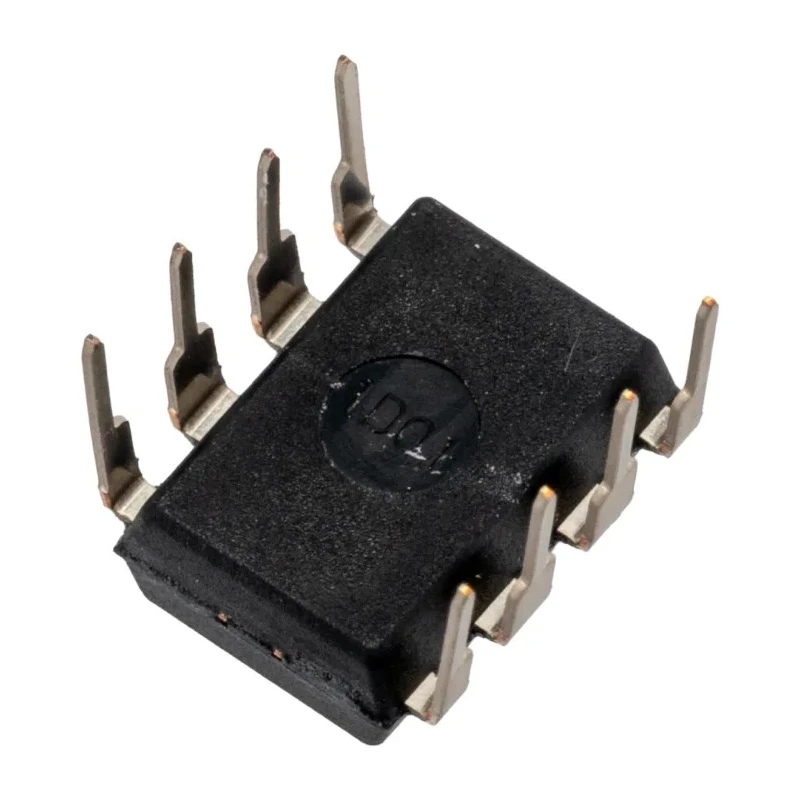

Texas Instruments Timer Circuit 1 Internal Timer 8-Pin PDIP 3-15V 75ns Propagation Delay TLC555IP

Texas Instruments TLC555IP Timer Circuit is a highly stable precision timing device with 1 internal timer in 8-pin PDIP package, designed for accurate generation of time delays and timing pulses. It supports both monostable (one-shot) and astable (oscillator) modes allowing timing periods from microseconds to minutes.

The device operates within a supply voltage range of 3 to 15 volts and offers a maximum propagation delay time of 75 nanoseconds under specified test conditions using a 10pF load. It is suitable for through-hole mounting on printed circuit boards due to its PDIP package type, measuring 9.81mm in length and 4.57mm in height.

Rated for operating temperatures from -40°C to 85°C, this timer circuit ensures dependable performance in diverse environmental conditions common in industrial, laboratory, and electronic manufacturing settings.

These timers are commonly applied in electronics prototyping, instrumentation, control systems, and digital timing circuits requiring low power consumption and high timing accuracy. The TLC555IP is part of the trusted Texas Instruments TLC series, benefiting from proven design and reliability standards.

This timer generates precise timing signals suitable for monostable and astable operations. Compatible with a wide voltage range from 3V to 15V for versatile circuit design. Offers quick propagation delay of less than 75 nanoseconds at standard test conditions.

Packaged in an 8-pin PDIP form factor for convenient through-hole mounting. Operates efficiently within industrial temperature standards from -40°C to 85°C. Compact dimensions allow integration in space-sensitive electronic assemblies.

Used extensively in industrial, laboratory, electronic control, and automation applications. Part of the TLC series known for precision timing solutions.

This Texas Instruments timer circuit facilitates reliable operation in applications such as electronic timing, pulse generation, and waveform creation in various sectors including industrial machines, measurement instrumentation, and laboratory setups. For detailed design applications and mechanical drawings, refer to Texas Instruments technical documentation and datasheets for the TLC555IP.
