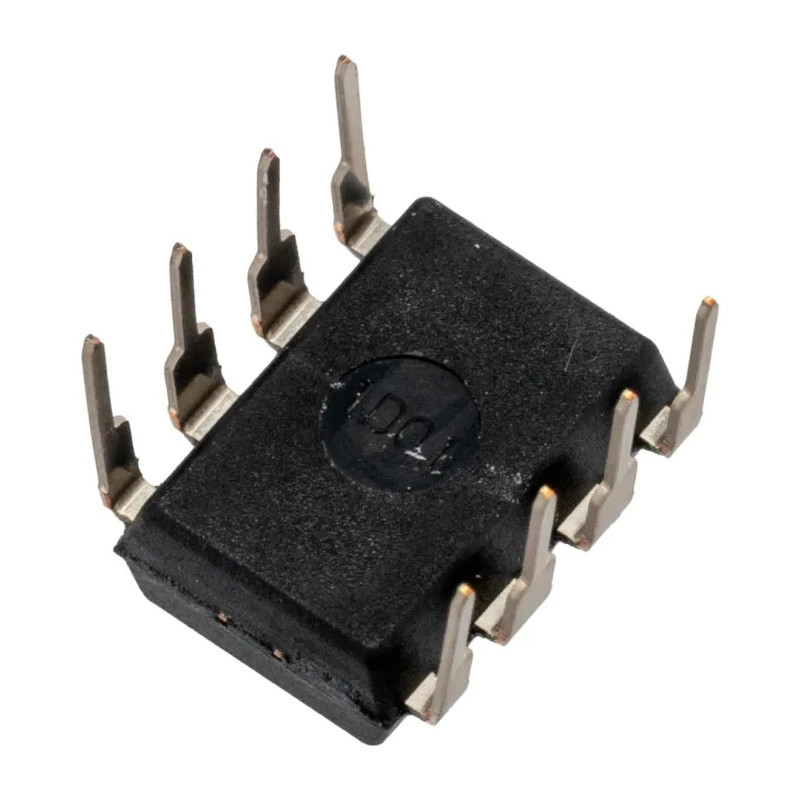

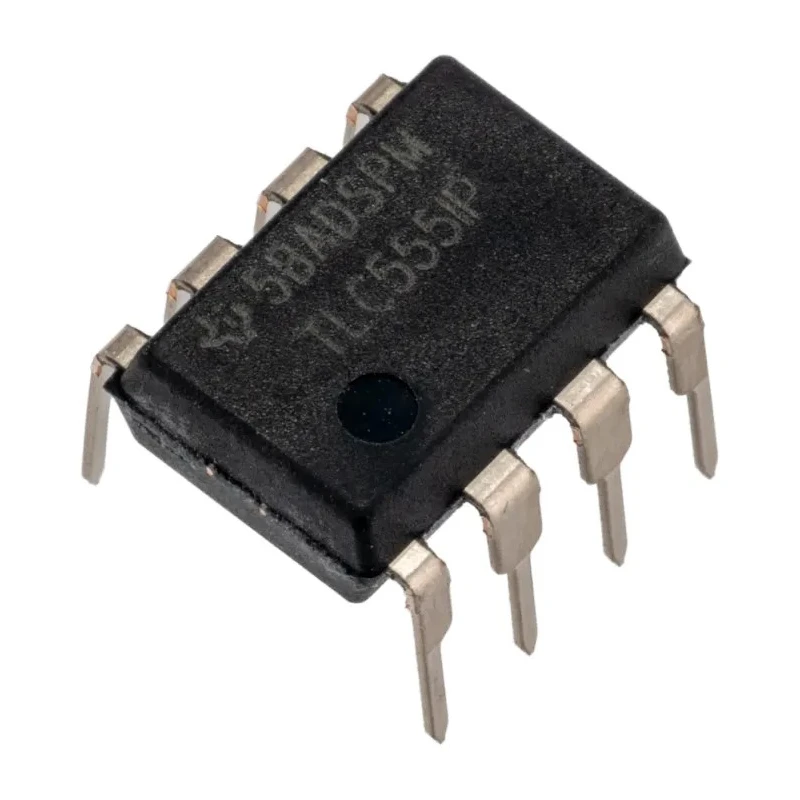

Texas Instruments Timer Circuit 3V-15V 8-Pin PDIP Through Hole TLC555IP

Texas Instruments TLC555IP is a robust timer circuit housed in an 8-pin PDIP package designed for through hole mounting. It operates with a minimum supply voltage of 3V and a maximum of 15V, delivering stable and precise timing control. The device contains a single internal timer capable of generating accurate time delays and timing pulses.

The timer supports both monostable (one-shot) and astable (oscillator) modes, allowing timing periods from less than a microsecond to several minutes. Its maximum propagation delay time of 75ns under a 10pF test condition ensures quick response suitable for various timing applications in electronics design.

Operating temperature ranges from -40°C to 85°C, making it suitable for harsh operating environments. It offers compact dimensions of 9.81mm in length and 4.57mm in height, facilitating easy integration into PCBs and other electronic assemblies.

Texas Instruments TLC555IP is widely used in industrial, laboratory, construction, and consumer electronics sectors for generating accurate timer pulses and switching functions. The device's design ensures low power consumption while maintaining high precision.

This timer circuit is supplied in a tube packaging ready for insertion into production machinery, enhancing manufacturing efficiency. It is a key component in many timing, oscillator, pulse generation, and switching circuits.

Operates with supply voltages from 3V to 15V for versatile use. Includes a single internal timer for precise delays or pulses. Through hole mounting with 8-pin PDIP package ensures compatibility with standard PCB layouts.

Supports operation in monostable and astable modes offering flexibility for timing applications. Maximum propagation delay of 75ns under standard test conditions for fast response. Compact size with length 9.81mm and height 4.57mm for space-saving design.

Suitable for harsh environments with operating temperature range -40°C to 85°C. Widely used across industrial, laboratory, and electronics manufacturing sectors. Explore the Electronics & Electricals category at EnvMart for additional semiconductor and Timer Circuit components.
