STMicroelectronics Real Time Clock 44 bit Binary D:D:M:Y:C SPI Interface 28-Pin SOH Surface M41T94MH6F

The STMicroelectronics M41T94MH6F is a high-precision Real Time Clock peripheral designed to provide reliable and accurate timing for electronic systems. This clock supports a 44-bit binary date and time format with date components arranged as Day:Day : Month : Year : Century, making it suitable for applications demanding exact timekeeping and extended date range.

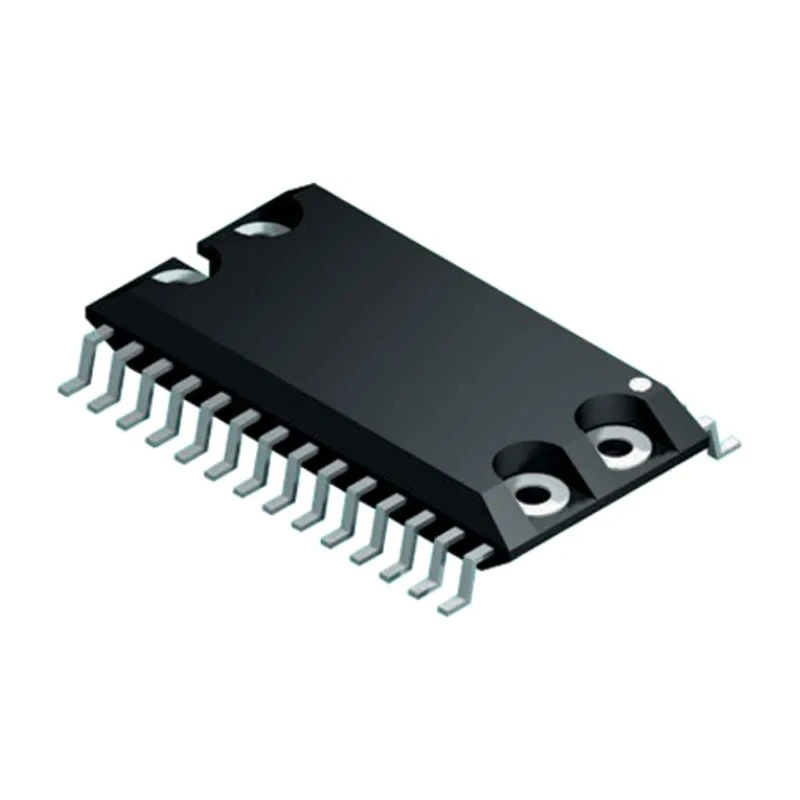

This device features a 28-pin Small Outline Housing (SOH) surface-mount package, facilitating minimal footprint on printed circuit boards and compatibility with automatic assembly lines. It can operate from a low supply voltage of 2.7 V up to 5.5 V, supporting a broad range of power source options. The wide operating temperature range from minus 40 to plus 85 degrees Celsius makes it highly suitable for rugged industrial, automotive, and outdoor environments.

Communication with the M41T94MH6F is achieved through an SPI interface, delivering fast and efficient data exchange with microcontrollers or processors in embedded designs. The compact dimensions (18.49 mm length, 8.89 mm width, and 2.69 mm height) make it ideal for space-constrained applications such as industrial automation, instrumentation, and consumer electronics.

It does not include automotive certifications but meets standard commercial and industrial requirements. 44 bit binary memory providing accurate date and time storage. Supports binary date format D:D:M:Y:C for flexible time data handling.

Operates within a voltage range of 2.7 V to 5.5 V for versatile power supply compatibility. Designed for surface mounting in a 28-pin Small Outline Housing (SOH) package. Wide operating temperature range from -40°C to 85°C suitable for harsh environments.

Uses SPI interface for efficient serial communication. Compact physical dimensions: Length 18.49 mm, Width 8.89 mm, Height 2.69 mm. Manufactured in Malaysia ensuring high-quality semiconductor standards.

This Real Time Clock is widely used in electronic components assemblies, power management modules, industrial instruments, and automation controls where precise timing is critical. It is ideally suited for applications requiring non-volatile timekeeping through system power cycles.
