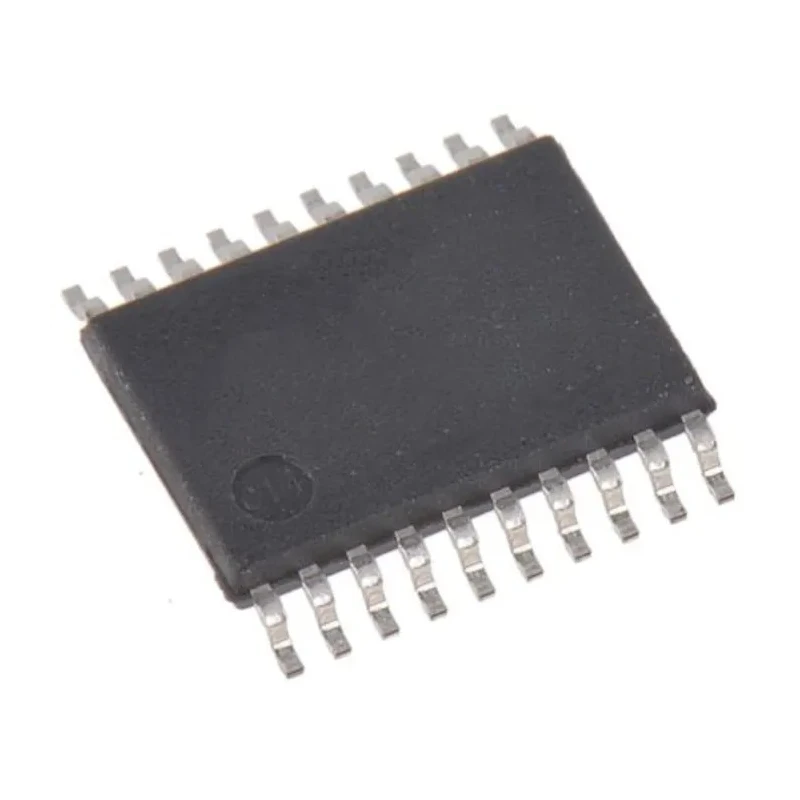

onsemi Voltage Level Shifter Buffer 1 Buffer 20-Pin TSSOP 74VHC541MTCX
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.05mm |
| Length | 6.6mm |
| Model | 74VHC541MTCX |
| Mount Type | Surface |
| Output type | 3 State |
| Series | 74VHC541 |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 20 |
| Number of Elements per Chip | 1 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | VHC |
| Logic Function | Buffer |
| Minimum Supply Voltage | 2V |
| Maximum High Level Output Current | -8mA |
| Maximum Propagation Delay Time @ CL | 9ns |
| Direction Type | Bi-Directional |
| Maximum Low Level Output Current | 8mA |
| Translation | Buffer |
Key Features
- Provides high-speed propagation delay of typically 3.5 ns at VCC = 5V.
- Features low power dissipation with ICC max 4 μA at 25°C ambient.
- Ensures high noise immunity with VNIH and VNIL at 28% VCC minimum.
- Operating temperature range from -40°C to 85°C for industrial use.
- Compatible with 74HC541 in pin and function, facilitating easy replacement.
- Supports 3-state output type for flexible digital circuit integration.
- Surface mount package type TSSOP with 20-pin count.
- Maximum supply voltage of 5.5 V and minimum supply voltage of 2 V.
Product Description
onsemi 74VHC541MTCX Voltage Level Shifter Buffer is a high-performance, bi-directional buffer integrated circuit designed for voltage level shifting in digital electronic systems. Featuring a 20-pin TSSOP surface-mount package, this buffer ensures efficient signal transmission with low power consumption and high noise immunity, making it suitable for industrial, commercial, and electronic control applications.
The device offers a typical propagation delay (tPD) of 3.5 ns at 5 V VCC, providing rapid signal processing capabilities. Its low quiescent current (ICC) of 4 μA at 25°C and typical low noise output voltage (VOLP) of 0.9 V enhance overall system performance and reliability.
Designed for operation across a wide temperature range from -40°C to 85°C, the 74VHC541MTCX is well suited for harsh environmental conditions and industrial applications. The buffer supports a 3-state output configuration, allowing flexible interfacing in complex digital circuits.
This onsemi buffer is pin and function compatible with the 74HC541, easing design transitions or replacements. It accepts supply voltages between 2 V and 5.5 V, providing versatile power options for various electronic systems.
The device's high noise immunity (VNIH and VNIL at 28% VCC minimum) ensures accurate data transmission, reducing the risk of erroneous signals in noisy environments. Its compact package size facilitates space-saving PCB layouts.
High-speed propagation delay of 3.5 ns typical at 5 V. Low power dissipation (ICC max 4 μA at 25°C). High noise immunity (28% VCC minimum). Wide operating temperature range (-40 to 85°C). Pin and function compatible with 74HC541.
3-state output for digital circuit flexibility. Surface mount TSSOP package with 20 pins. Supply voltage range from 2 V to 5.5 V. Low noise typical VOLP of 0.9 V. Suitable for industrial, laboratory, electronic control, and commercial applications.
This product is a reliable choice for applications requiring voltage translation, buffering, and level shifting in semiconductor circuits. Its design and specifications meet the demands of modern high-speed electronic systems.
Explore more semiconductors and Voltage Level Shifters at EnvMart to find components suitable for your next electronic design or repair project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The typical propagation delay for the 74VHC541MTCX is 3.5 ns at a supply voltage of 5 V.
This unit operates within a temperature range of -40°C to 85°C, making it suitable for industrial applications.
It accepts a supply voltage range from 2 V to 5.5 V, providing flexibility for various electronic systems.
The TSSOP package of this buffer has a total of 20 pins.
The 74VHC541MTCX supports a 3-state output type, allowing for flexible integration in digital circuits.
Yes, it is pin and function compatible with the 74HC541, facilitating easy replacements in designs.
The maximum quiescent current (ICC) at 25°C is 4 μA, indicating low power dissipation.
The maximum high-level output current is -8 mA, which is important for driving loads in digital circuits.
The device features high noise immunity with VNIH and VNIL at a minimum of 28% VCC, ensuring reliable signal transmission.
The height of the TSSOP package for this model is 1.05 mm.
This buffer belongs to the VHC logic family, which is known for its high-speed performance.
It is suitable for industrial, laboratory, electronic control, and commercial applications requiring voltage translation and buffering.
