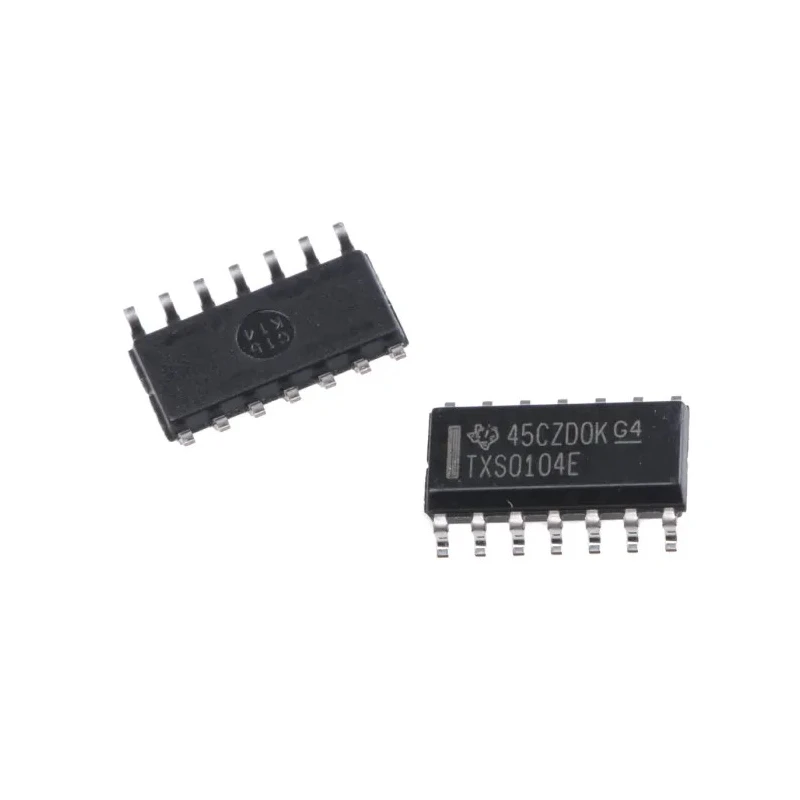

Texas Instruments Voltage Level Shifter TXS0104ED, 4-Channel Bi-Directional Voltage Level Translator, 14-Pin SOIC TXS0104ED
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 8.65mm |
| Model | TXS0104ED |
| Mount Type | Surface |
| Output type | Open Drain |
| Series | TXS0104E |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 709-3309Brand: Texas InstrumentsManufacturers Part No.: TXS0104ED |
| Pin Count | 14 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | Translator |
| Logic Function | Voltage Level Translator |
| Minimum Supply Voltage | 1.65V |
| Maximum High Level Output Current | -0.02mA |
| Maximum Propagation Delay Time @ CL | 6.8ns |
| Direction Type | Bi-Directional |
| Maximum Low Level Output Current | 1mA |
| Translation | Voltage Level |
Key Features
- Supports bi-directional voltage translation without external direction control.
- Maximum propagation delay time is 6.8 nanoseconds at CL.
- Operates over a supply voltage range of 1.65V to 5.5V for flexible interfacing.
- Features open drain output type and a logic family designed as translator.
- Operating temperature range spans from -40°C to 85°C for reliable industrial use.
- Compact 14-pin surface mount SOIC package with a length of 8.65mm and height of 1.58mm.
- Includes 4 elements per chip suitable for multiple channel applications.
- Maximum low level output current is 1mA and maximum high level output current is -0.02mA.
Product Description
The Texas Instruments TXS0104ED voltage level shifter is a precision 4-channel bi-directional voltage level translator designed to interface devices operating at different logic voltages. This device supports voltage translation between 1.65V to 5.5V, enabling seamless communication between low-voltage and high-voltage devices without requiring an external direction control signal.
Featuring an open drain output type and translator logic family, the TXS0104ED offers efficient voltage translation with low propagation delay times of 6.8 nanoseconds, ensuring minimal signal distortion. The device comes in a compact 14-pin SOIC surface mount package with dimensions of 8.65mm in length and 1.58mm in height, making it suitable for dense PCB layouts.
This voltage level translator maintains robust operation across an industrial temperature range of -40°C to 85°C, ensuring dependable performance in harsh environments typical in industrial, laboratory, manufacturing, and communication equipment applications.
The chip includes 4 elements per device to support multiple simultaneous channels of voltage level shifting with a maximum low level output current of 1mA and a maximum high level output current of -0.02mA, suitable for driving a range of boundary devices.
Supports bi-directional voltage translation without external direction control. Maximum propagation delay time of 6.8 nanoseconds at CL. Operates over supply voltage range of 1.65V to 5.5V. Compact 14-pin SOIC surface mount package.
Operating temperature from -40°C to 85°C. Includes 4 elements per chip suitable for multi-channel use. Maximum output currents: 1mA (low level), -0.02mA (high level).
This high-performance Voltage Level Shifter is ideal for industrial electronics, automated manufacturing equipment, laboratory instrumentation, and communications systems requiring reliable voltage interfacing solutions.
Explore more semiconductor and voltage translation devices at EnvMart to enhance your electronic designs with high-quality components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TXS0104ED operates over a supply voltage range of 1.65V to 5.5V, allowing for flexible interfacing between devices with different voltage levels.
The maximum propagation delay time for the TXS0104ED is 6.8 nanoseconds at CL, ensuring minimal signal distortion during voltage translation.
This model includes 4 elements per chip, making it suitable for multiple channel applications requiring voltage level shifting.
The TXS0104ED comes in a compact 14-pin SOIC package with dimensions of 8.65mm in length and 1.58mm in height.
It features an open drain output type, which is typical for voltage level translators, facilitating bi-directional voltage translation.
The TXS0104ED operates reliably within an industrial temperature range of -40°C to 85°C, suitable for harsh environments.
The maximum low level output current for this model is 1mA, which is suitable for driving various boundary devices.
The maximum high level output current for the TXS0104ED is -0.02mA, allowing for effective voltage translation in bi-directional applications.
No, the TXS0104ED supports bi-directional voltage translation without requiring external direction control, simplifying integration.
The TXS0104ED is designed as a translator logic family, specifically for voltage level translation applications.
This model uses a surface mount type, making it suitable for dense PCB layouts and automated assembly processes.
The TXS0104ED is manufactured in India, ensuring compliance with regional manufacturing standards.
