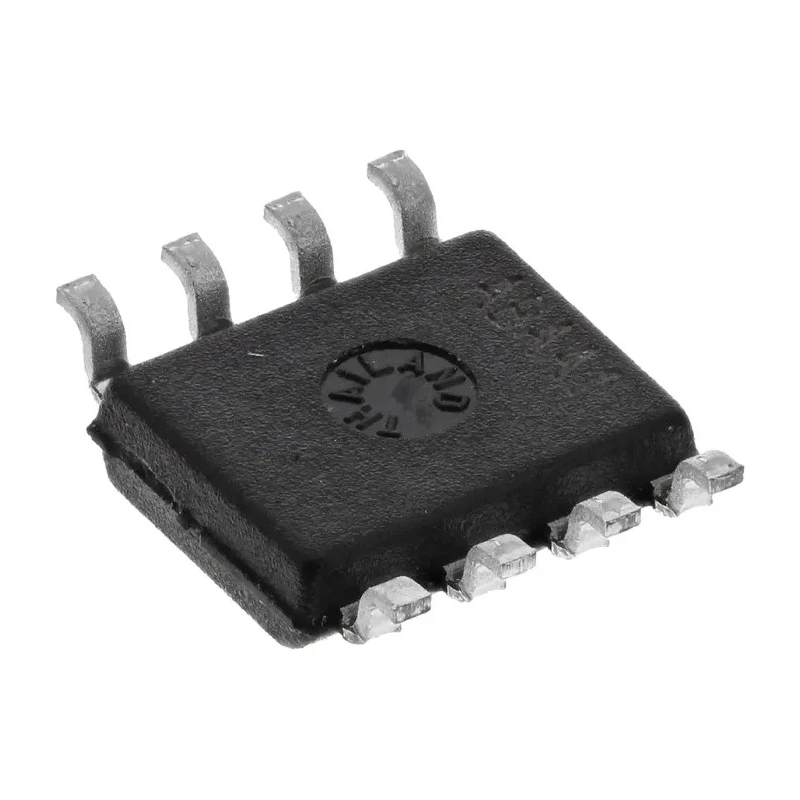

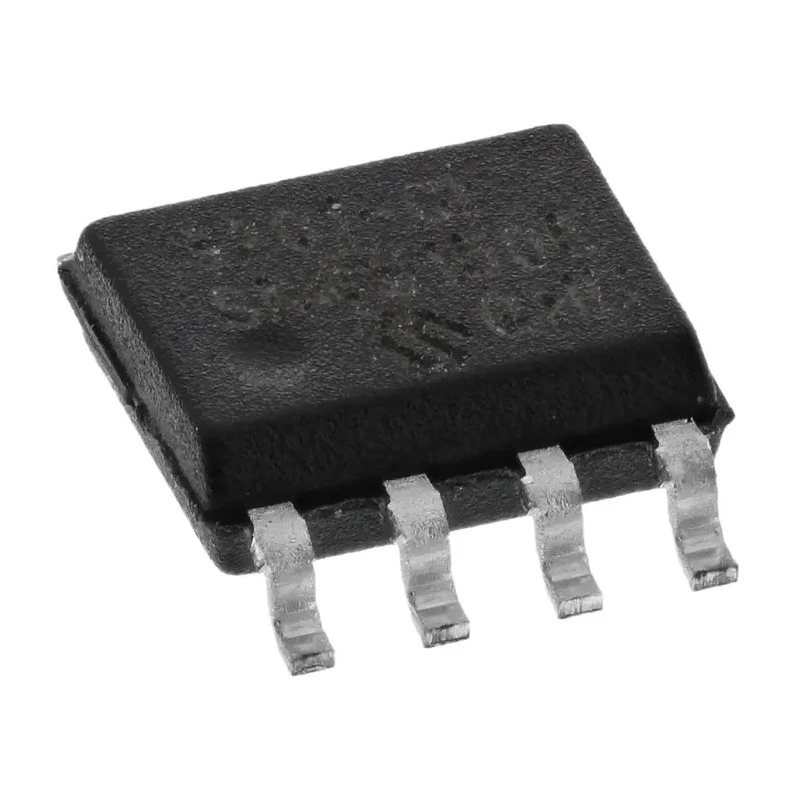

Microchip 12 bit Successive Approximation Register (SAR) ADC 100 ksps 8-Pin SOIC Surface Mount MCP3201-CI/SN
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 12 bit |
| Brand | Microchip |
| Height | 1.44mm |
| Length | 5.01mm |
| Model | MCP3201-CI/SN |
| Mount Type | Surface |
| Sampling rate | 100ksps |
| Series | MCP3201 |
| Input Type | Voltage |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Interface Type | SPI |
| Architecture | SAR |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 5V |
| Number of ADCs | 1 |
Key Features
- Features a single ADC channel with 12-bit resolution.
- Sampling rate up to 100,000 samples per second (100 ksps).
- Implements SPI interface for communication.
- Operates with a supply voltage range of 5.0 V to 5.5 V.
- Operating temperature range from -40°C to +85°C for industrial applications.
- Compact surface mount SOIC package with 8 pins, measuring 5.01 mm length and 1.44 mm height.
- Meets AEC-Q100 automotive standard for reliability.
- Ideal for applications requiring precise voltage-to-digital conversion in embedded systems.
Product Description
Microchip MCP3201-CI/SN is a high-precision analogue-to-digital converter (ADC) featuring 12-bit resolution based on Successive Approximation Register (SAR) architecture. This device supports a sampling rate of 100 ksps and is housed in an 8-pin SOIC surface mount package, making it suitable for compact PCB designs.
Designed for industrial and automotive use, it operates reliably between -40°C to 85°C and complies with the AEC-Q100 automotive standard. The device supports a supply voltage range from 5.0 to 5.5 volts, providing stable performance within this range.
The MCP3201-CI/SN interfaces via SPI, enabling efficient serial communication with microcontrollers and digital signal processors. It includes one ADC channel optimized for precise voltage measurements, suitable in measurement instrumentation, data acquisition systems, and embedded control applications.
This ADC is a valuable component in electronics development focused on power management, sensor interfacing, and signal conversion where size and accuracy are critical. The surface mount SOIC package supports automated assembly and compact system layouts.
Features a single ADC channel with 12-bit resolution. Sampling rate up to 100,000 samples per second (100 ksps). Implements SPI interface for communication. Operates with a supply voltage range of 5.0 V to 5.5 V. Operating temperature range from -40°C to +85°C for industrial applications.
Compact surface mount SOIC package with 8 pins, measuring 5.01 mm length and 1.44 mm height. Meets AEC-Q100 automotive standard for reliability. Ideal for applications requiring precise voltage-to-digital conversion in embedded systems.
For additional information and support, explore EnvMart's Electronics Semiconductors category for compatible components and accessories.
Explore more products in our Analogue to Digital Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features a resolution of 12 bits, allowing for precise voltage measurements.
The maximum sampling rate is 100,000 samples per second (100 ksps).
It operates within a supply voltage range of 5.0 V to 5.5 V.
It operates reliably between -40°C to 85°C, making it suitable for industrial applications.
The device measures 5.01 mm in length and 1.44 mm in height.
It includes a single ADC channel optimized for voltage measurements.
It meets the AEC-Q100 automotive standard for reliability.
It is housed in an 8-pin SOIC surface mount package.
It is based on Successive Approximation Register (SAR) architecture.
The country of origin for this model is India.
