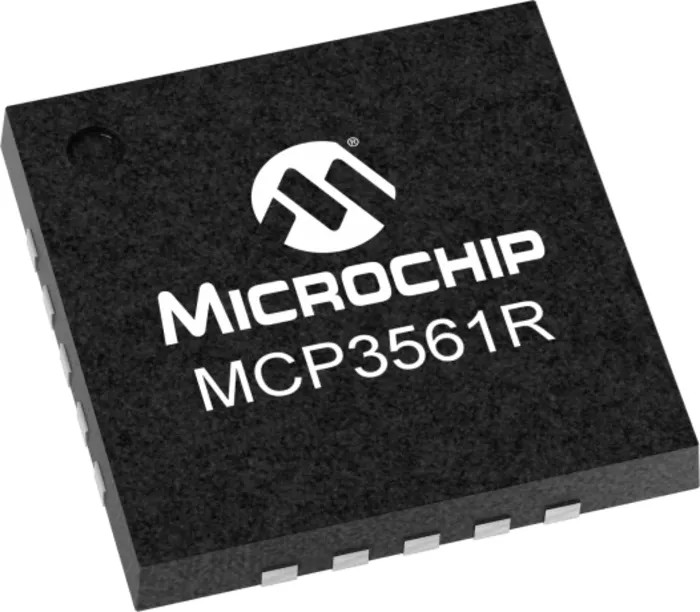

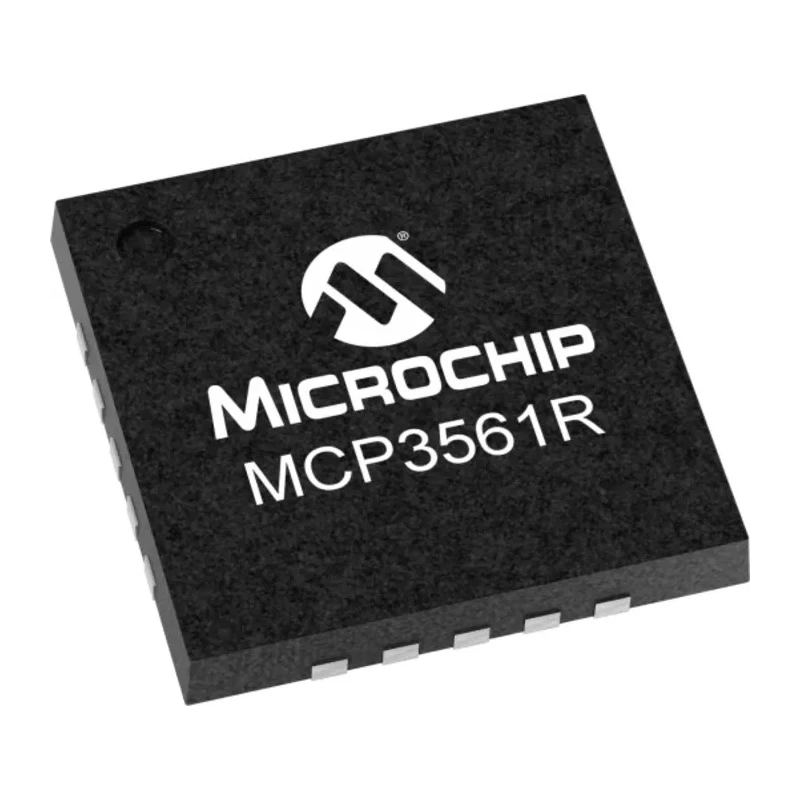

Microchip 24 bit Delta Sigma ADC with 153.6 ksps Sampling Rate, 20-Pin UQFN MCP3561RT-E/NC
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 24 bit |
| Brand | Microchip |
| Height | 0.75mm |
| Length | 4mm |
| Model | MCP3561RT-E/NC |
| Mount Type | Surface |
| Sampling rate | 153.6ksps |
| Series | MCP3561R |
| Input Type | Single Ended, Differential |
| Maximum Operating Temperature | 125°C |
| Package Type | UQFN |
| Minimum Operating Temperature | -40°C |
| Interface Type | SPI |
| Architecture | Delta Sigma |
| Pin Count | 20 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2.7V |
| Number of ADCs | 1 |
Key Features
- Delta Sigma architecture offering 24 bit resolution for precise analog to digital conversion.
- Single channel ADC with both single ended and differential inputs supported.
- Programmable data rate up to 153.6 kSPS suitable for industrial sensor applications.
- Compact 20-pin UQFN surface mount package with low profile dimensions (4 mm length, 0.75 mm height).
- Wide operating voltage range from 2.7 V to 3.6 V and SPI interface for easy microcontroller integration.
- Supports operating temperatures from −40°C to 125°C meeting automotive grade AEC-Q100 standards.
- Ultra low full shutdown current consumption for energy efficient designs.
- Suitable for industrial, manufacturing, laboratory, automotive, and sensor data acquisition systems.
Product Description
Microchip MCP3561RT-E/NC is a high-precision 24 bit Delta Sigma analog to digital converter (ADC) designed for demanding sensor transducer and transmitter applications. Featuring a programmable sampling rate of up to 153.6 kSPS, this device delivers accurate, high-resolution digital output for single-ended or differential input signals.
Packaged in a compact 20-pin UQFN surface mount form factor measuring 4 mm length by 0.75 mm height, it supports a supply voltage range of 2.7 V to 3.6 V and communicates via SPI interface making it ideal for compact embedded electronics and industrial sensor modules.
The MCP3561RT-E/NC operates reliably in harsh environments with minimum operating temperature of −40°C and a maximum of 125°C, certified to meet automotive AEC-Q100 standards. Its ultra low full shutdown current consumption makes it especially suitable for energy-conscious applications.
Key features include a single ADC channel with 24 bit resolution using Delta Sigma architecture for noise-optimised signal conversion, programmable sampling rates, and differential voltage reference inputs for measurement accuracy.
Delta Sigma ADC architecture delivering 24 bit digitization. Supports single ended and differential inputs for sensor versatility. Programmable data rate up to 153.6 ksps. Compact 20-pin UQFN surface mount package. Wide voltage supply range 2.7 V to 3.6 V with SPI interface.
Operating temperature range −40°C to 125°C, automotive grade AEC-Q100 certified. Low shutdown current consumption for power efficiency. Ideal for industrial automation, measurement systems, and automotive sensors.
Microchip design tools and documentation support integration including 3D models, schematics, and footprints available for efficient PCB layout. This ADC is suitable for embedded system engineers seeking precision analog signal digitization with robust performance under broad environmental conditions.
Explore our extensive Electronic Components catalog on EnvMart for additional semiconductor and data conversion solutions optimized for industrial, laboratory, and automotive applications.
Explore more products in our Analogue to Digital Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum sampling rate of this model is 153.6 kSPS, making it suitable for high-speed data acquisition applications.
It features a resolution of 24 bits, allowing for precise analog to digital conversion.
This ADC supports both single-ended and differential input types, providing flexibility for various sensor applications.
The MCP3561RT-E/NC operates within a temperature range of -40°C to 125°C, suitable for harsh environments.
This model operates with a supply voltage range from 2.7 V to 3.6 V, accommodating various power supply configurations.
It utilizes an SPI interface for easy integration with microcontrollers and other digital systems.
This ADC is packaged in a 20-pin UQFN surface mount package, measuring 4 mm in length and 0.75 mm in height.
Yes, it is certified to meet automotive grade AEC-Q100 standards, ensuring reliability in automotive applications.
It employs Delta Sigma architecture, which optimizes signal conversion for noise reduction and accuracy.
The MCP3561RT-E/NC features ultra low full shutdown current consumption, making it suitable for energy-efficient designs.
This ADC is suitable for industrial automation, measurement systems, automotive sensors, and laboratory applications.
Microchip provides design tools and documentation, including 3D models, schematics, and footprints for efficient PCB layout.
