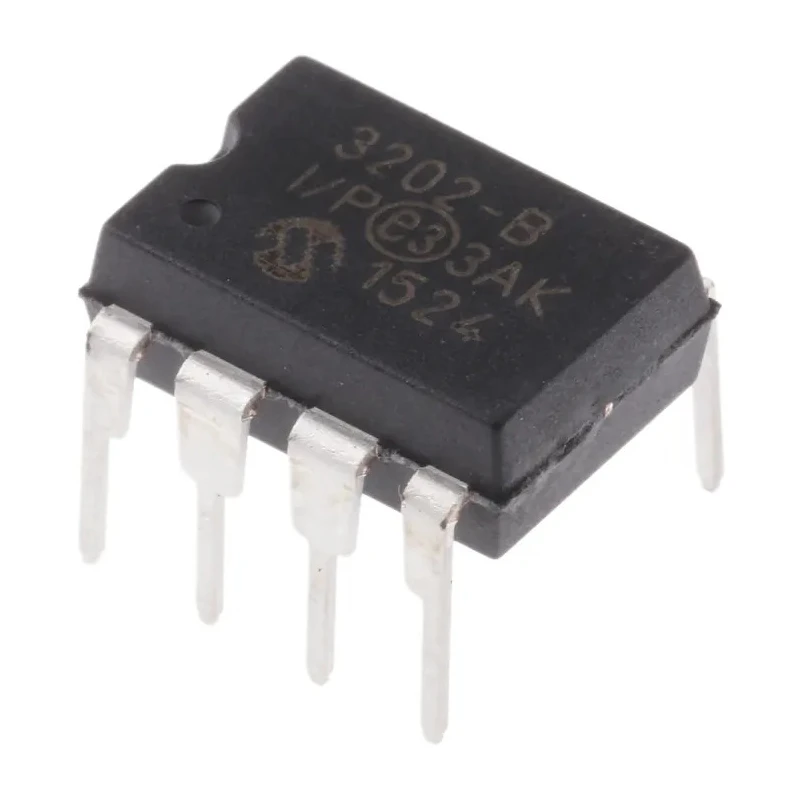

Microchip SAR 2 Channels 12 Bit ADC 100 ksps 8-Pin PDIP MCP3202-BI/P
Specifications
| Country of Origin | Thailand |
|---|---|
| Resolution | 12 bit |
| Brand | Microchip |
| Height | 9.14mm |
| Length | 10.16mm |
| Model | MCP3202-BI/P |
| Mount Type | Through Hole |
| Sampling rate | 100ksps |
| Series | MCP3202 |
| Input Type | Voltage |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Interface Type | SPI |
| Architecture | SAR |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
| Number of ADCs | 2 |
Key Features
- Features a high-speed 12-bit SAR ADC architecture optimized for precision data conversion.
- Supports two ADC channels allowing simultaneous voltage input measurements.
- Operates with SPI interface facilitating easy microcontroller communication.
- Designed for through-hole mounting with an 8-pin PDIP package.
- MCP3202 series provides input voltage range with minimum supply voltage of 2.7V and maximum of 5.5V.
- Suitable for operation in temperatures from -40°C to 85°C, complying with AEC-Q100 automotive standards.
- Compact dimensions with height 9.14mm and length 10.16mm for space-efficient PCB layouts.
- Manufactured in Thailand and designed for industrial and automotive applications.
Product Description
Microchip MCP3202-BI/P is a precision successive approximation register (SAR) analogue-to-digital converter (ADC) featuring 12-bit resolution and two ADC channels. It operates at a high sampling rate of 100 ksps, making it suitable for accurate and efficient voltage measurement in various electronic systems. Packaged in an 8-pin PDIP, it is designed primarily for through-hole mounting which facilitates easy PCB integration especially in prototyping and industrial applications.
This ADC supports a Serial Peripheral Interface (SPI) which provides fast and reliable communication with microcontrollers and signal processing units. The input type is voltage, and it can operate in supply voltage ranges from 2.7V to 5.5V, ensuring compatibility with typical embedded power systems.
The device operates effectively over a wide temperature range from -40°C to 85°C and meets the rigorous AEC-Q100 automotive standard, making it suitable for automotive and other demanding environments. Its compact physical dimensions of 9.14mm height and 10.16mm length allow it to be used in space-constrained applications.
Industries such as industrial automation, instrumentation, automotive electronics, data acquisition systems, and embedded electronics benefit from the MCP3202-BI/P due to its accuracy, reliability, and ease of integration. This ADC series helps designers achieve precise analog signal conversion for control and monitoring systems.
High-speed 12-bit SAR ADC architecture. Two simultaneous input voltage channels for measurement. SPI interface for efficient microcontroller communication. 8-Pin PDIP package suitable for through-hole mounting. Operating supply voltage between 2.7V and 5.5V.
Operating temperature range from -40°C to 85°C, AEC-Q100 compliant. Compact size enabling use in tight PCB designs. Manufactured in Thailand ensuring quality and reliability. Explore our Electronics and Semiconductor categories for additional Microchip ADC products and related components to support your design and manufacturing requirements.
Explore more products in our Analogue to Digital Converter category.
