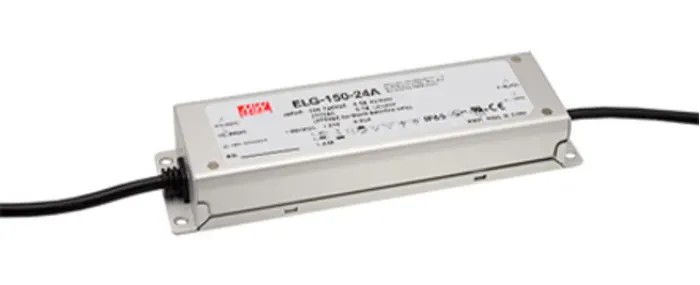

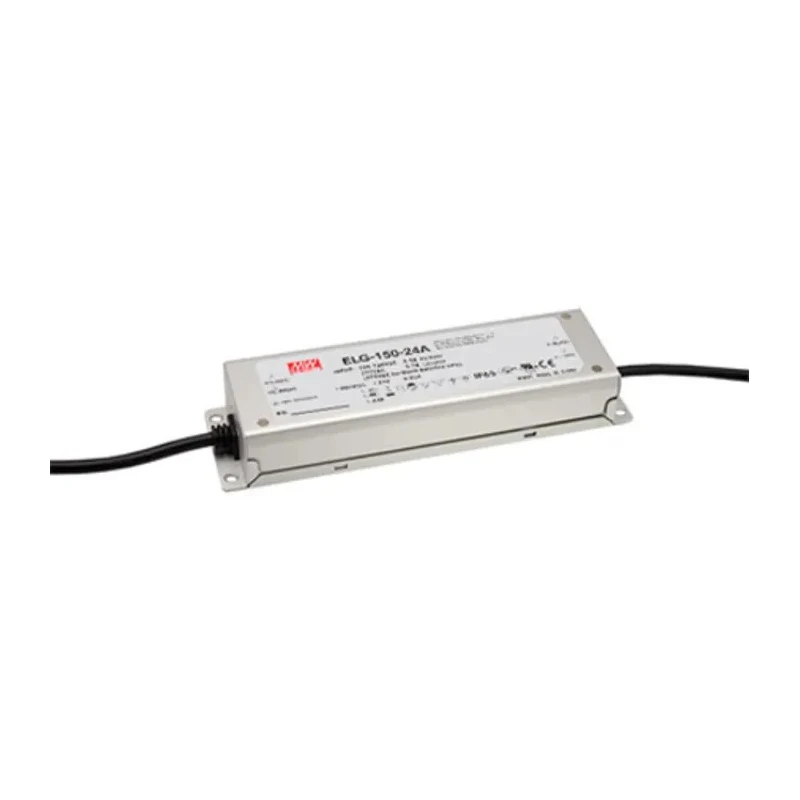

Mean Well Dimmable LED Driver, IP67, 36V Output, 150W, 900mA, AC/DC, Potentiometer Dimming
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Efficiency | Up to 91% |
| Model | IP67 |
| IP Rating | IP67 |
| Mount Type | Screw |
| Series | ELG-150 |
| Configuration | Encapsulated |
| Sub Type | LED Driver |
| Operating Modes | Constant Current/Constant Voltage |
| Number of outputs | 1 |
| Terminal type | Wire |
| Maximum Output Power | 150W |
| Input Voltage | 180, 305, 254, 431V ac |
| Output Voltage | 36V |
| Power Dissipation | 150.1W |
| Standards/Approvals | CB, CE:CCC, cULus Recognized, EN61347-1, EN61347-2-13, EN62384, ENEC, PFC, UL8750 |
| Dimming Operation | Potentiometer |
| Primary Type | AC-DC, DC-DC |
| Driver Current | 900mA |
| Standards/ApprovalsCB, CE | CCC, cULus Recognized, EN61347-1, EN61347-2-13, EN62384, ENEC, PFC, UL8750 |
| CB, CE | CCC, cULus Recognized, EN61347-1, EN61347-2-13, EN62384, ENEC, PFC, UL8750 |
Key Features
- Provides constant current and constant voltage operation.
- Features robust full metal housing with encapsulated configuration.
- Rated for up to 900mA output current, ideal for high-power LED applications.
- Supports potentiometer dimming and PWM signal options for flexibility.
- IP67 rated for excellent water and dust resistance in demanding environments.
- Designed for screw mount installation and wire terminal connections.
- Active power factor correction enhances energy efficiency.
- Suitable for LED street lighting, architectural illumination, bay lighting, and floodlighting.
Product Description
The Mean Well ELG-150-36B LED driver is engineered for reliable, high-efficiency performance in professional lighting installations. Offering a dimmable design capable of delivering up to 150W power at a precise 36V output, this driver supports both constant current and constant voltage modes, making it suitable for a variety of indoor and outdoor LED lighting applications.
The unit's robust IP67-rated full metal enclosure ensures exceptional protection against water and dust ingress, supporting long-term durability in harsh environments. Its encapsulated configuration and fan-less design deliver up to 91% efficiency, reducing maintenance needs and offering quiet operation for architectural, industrial, and commercial lighting projects.
With integrated potentiometer dimming and compatibility with PWM signal dimming protocols, the ELG-150-36B provides flexible, user-friendly control over your lighting system. The screw mount type facilitates secure installation, while wire terminals support easy and reliable electrical connections.
An active power factor correction (PFC) feature improves energy usage across varying loads, adhering to international approvals including CB, CE, CCC, cULus Recognized, EN61347-1, EN61347-2-13, EN62384, ENEC, PFC, and UL8750 standards. The LED driver’s 900mA output current and single output configuration support powerful, efficient illumination for street lighting, architectural projects, bay lighting, and floodlight installations.
Ideal for industrial and outdoor environments, the ELG-150-36B is part of Mean Well's ELG-150 series, widely recognized for high efficiency and versatility in demanding LED driver applications. Whether specifying for manufacturing, municipal infrastructure, or commercial spaces, this model delivers reliable dimming, efficiency, and safety features expected of premium LED drivers.
Provides constant current and constant voltage operation. Features robust full metal housing with encapsulated configuration. Rated for up to 900mA output current, ideal for high-power LED applications. Supports potentiometer dimming and PWM signal options for flexibility.
IP67 rated for excellent water and dust resistance in demanding environments. Designed for screw mount installation and wire terminal connections. Active power factor correction enhances energy efficiency. Suitable for LED street lighting, architectural illumination, bay lighting, and floodlighting.
Browse more LED Drivers and lighting solutions in the Mean Well range at EnvMart for commercial and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 150W.
This LED driver provides a precise output voltage of 36V.
It is rated for an output current of up to 900mA.
The input voltage range for this driver is between 180V and 431V AC.
This unit supports potentiometer dimming and PWM signal dimming options.
The IP rating of this model is IP67, indicating excellent water and dust resistance.
It is designed for screw mount installation and features wire terminal connections for easy setup.
This model has an efficiency rating of up to 91%.
It operates in both constant current and constant voltage modes.
The driver is recognized with several certifications including CB, CE, CCC, cULus, and complies with EN61347-1 and other standards.
The configuration of this model is encapsulated, providing additional protection.
It is suitable for applications such as LED street lighting, architectural illumination, bay lighting, and floodlighting.
