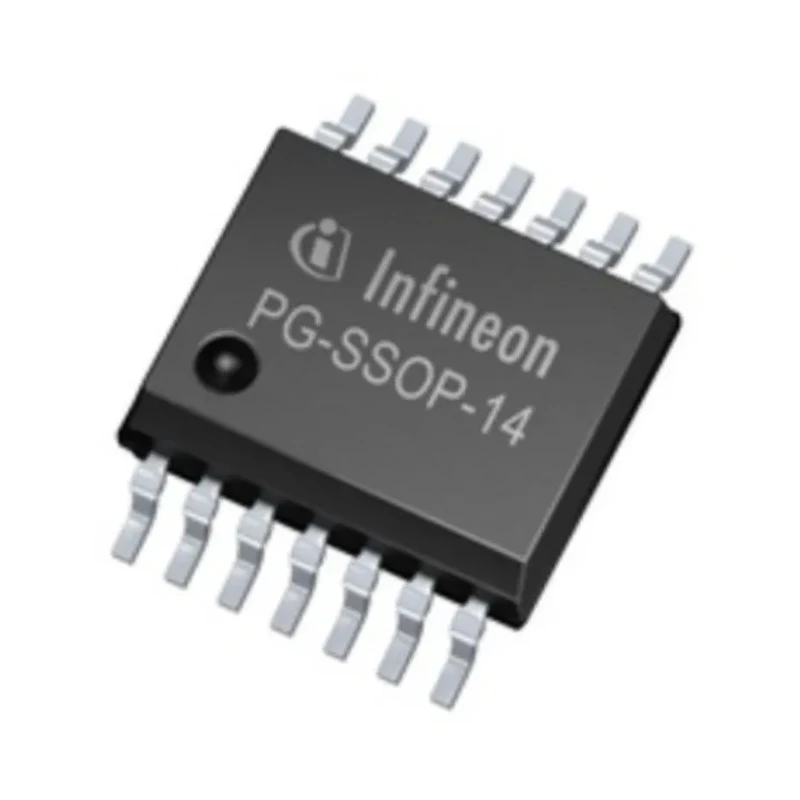

Infineon LED Driver IC 40V 120 mA 14-Pin SSOP-14 TLD1313ELXUMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 1.75mm |
| Length | 4.9mm |
| Model | TLD1313ELXUMA1 |
| Width | 3.9mm |
| Mount Type | Through Hole |
| Series | TLD1313EL |
| Output Current | 120mA |
| Maximum Operating Temperature | 150°C |
| Package Type | SSOP-14 |
| Minimum Operating Temperature | -40°C |
| Maximum Output Power | 1.5W |
| Input Voltage | 40V |
| Standards/Approvals | RoHS |
| Maximum Output Voltage | 40V |
| Number of Pins | 14 |
| Minimum Output Voltage | 5.5V |
| Dimming Operation | PWM |
Key Features
- Capable of controlling LEDs with current up to 120 mA.
- Operates with a PWM dimming method for precise brightness control.
- Features integrated output stages suitable for automotive and industrial LED applications.
- Supports maximum output power of 1.5W ensuring efficient LED driving.
- Designed with through-hole mount type for easy PCB assembly.
- Robust operation from -40°C to 150°C ensures wide temperature range usability.
- Includes undervoltage detection to protect LED circuits.
- Compliant with RoHS standards ensuring environmental safety.
Product Description
The Infineon TLD1313ELXUMA1 LED Driver IC is a high-performance integrated circuit designed for efficient LED control in various industrial and automotive applications. Featuring a 40V input voltage and an output current capability of 120 mA, this device is ideal for controlling LED brightness with precision via PWM dimming. The 14-pin SSOP package provides a compact footprint (4.9mm x 3.9mm x 1.75mm) suitable for dense PCB layouts.
This LED driver IC integrates output stages capable of driving multiple LEDs in series, making it well-suited for automotive lighting where thermal management is crucial. Its operational temperature range from -40°C to 150°C allows it to perform reliably under harsh environmental conditions. Additionally, the device includes undervoltage detection to safeguard LEDs against supply voltage drops.
Designed for through-hole mounting, the TLD1313ELXUMA1 simplifies PCB assembly and maintenance. The chip operates with low current consumption in sleep mode, thus optimizing power efficiency in battery-powered systems. Being RoHS compliant and AEC qualified, it meets stringent environmental and quality standards for modern electronic products.
Capable of controlling LEDs with current up to 120 mA. Operates with PWM dimming for precise brightness control. Integrated output stages for robust LED driving. Maximum output power of 1.5W ensures efficient performance.
Wide operating temperature range from -40°C to 150°C. Includes undervoltage detection for circuit protection. Compact SSOP-14 package measuring 4.9mm by 3.9mm by 1.75mm. Through-hole mount type for ease of installation. RoHS compliant and AEC qualified for quality assurance.
This LED driver is ideal for use in industrial, automotive lighting, display backlighting, and other electronic applications requiring precise and reliable LED control. Explore EnvMart’s comprehensive selection of LED Driver ICs for compatible components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output current of this LED driver is 120 mA.
The TLD1313ELXUMA1 operates with an input voltage of up to 40V.
This model has a maximum output power of 1.5W.
It operates with PWM dimming for precise brightness control.
The dimensions of the SSOP-14 package are 4.9mm in length, 3.9mm in width, and 1.75mm in height.
The operating temperature range is from -40°C to 150°C.
This model is designed for through-hole mounting, which simplifies PCB assembly.
Yes, it includes undervoltage detection to protect the LED circuits.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
It is suitable for industrial and automotive lighting, as well as display backlighting and other electronic applications requiring precise LED control.
This LED driver IC has a total of 14 pins.
It belongs to the TLD1313EL series of LED driver ICs.
