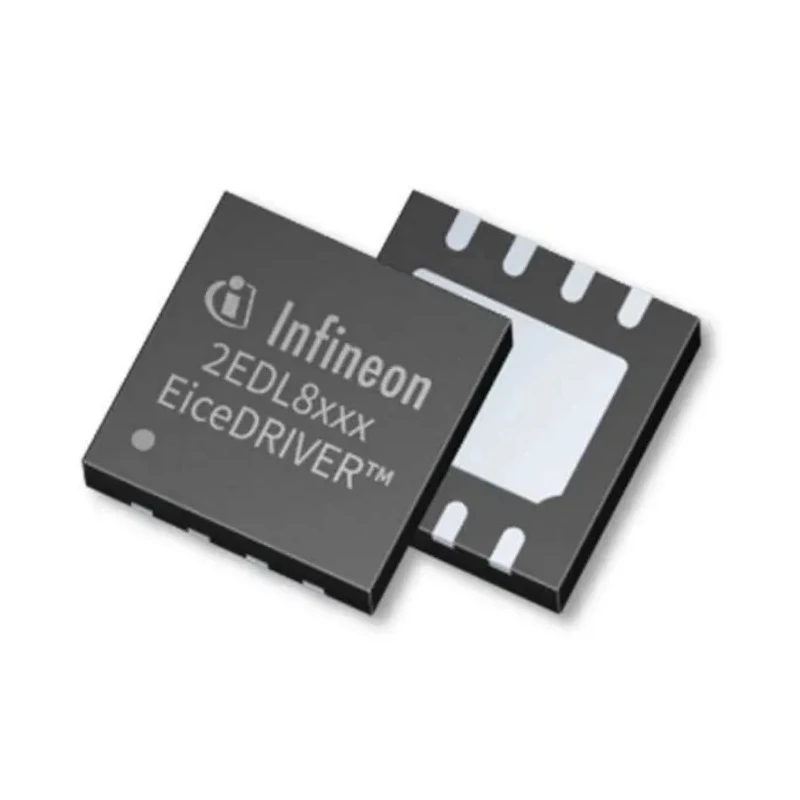

Infineon LED Driver IC, 20V Input Voltage, 4 A Output Current, 8-Pin VDSON-8 Package 2EDL8124GXUMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 1mm |
| Length | 4mm |
| Model | 2EDL8124GXUMA1 |
| Width | 4mm |
| Mount Type | Through Hole |
| Series | 2EDL8124G |
| Output Current | 4A |
| Maximum Operating Temperature | 150°C |
| Package Type | VDSON-8 |
| Minimum Operating Temperature | -40°C |
| Input Voltage | 20V |
| Number of Pins | 8 |
Key Features
- Supports output current of 4 A for robust LED driving performance.
- Operates with a 20V DC input voltage suitable for advanced switching converters.
- Designed with 8 pins in a compact VDSON-8 surface-mount package.
- Minimum operating temperature of -40°C and maximum up to 150°C for wide temperature range applications.
- Offers through-hole mounting type for easy PCB integration.
- Includes built-in hysteresis for enhanced noise immunity on differential inputs.
- Features inherent shoot-through protection for increased system robustness.
- Compact dimensions of 4mm length, 4mm width, and 1mm height for space-saving designs.
Product Description
Infineon 2EDL8124GXUMA1 LED Driver IC is engineered for advanced switching converter applications including telecom and datacom systems requiring reliable and efficient LED driving solutions. Featuring an input voltage rating of 20V DC and an output current capacity of 4 A, this driver IC is housed in a compact 8-pin VDSON-8 package designed for through-hole mounting.
With a robust design that supports operating temperatures from -40°C to 150°C, this device ensures consistent performance in demanding industrial environments. The integrated differential input with built-in hysteresis provides enhanced noise immunity, improving signal stability and system reliability. Additionally, the chip incorporates inherent shoot-through protection to safeguard the system against crossover conduction.
Its compact size of 4mm length by 4mm width and a height of 1mm allows for space-efficient PCB layout, making it suitable for high-density electronic assemblies. Supports output current of 4 A for precise LED control. 20V DC input voltage rating suitable for power-efficient applications.
8-pin VDSON-8 package ensures compact and reliable mounting. Wide operating temperature range from -40°C to 150°C provides durability. Built-in hysteresis enhances noise immunity on differential inputs. Inherent shoot-through protection maintains system robustness.
Through-hole mount type facilitates easy soldering and replacement. Compact form factor allows for space-saving electronic designs. Optimized for telecom and datacom switching converter applications. Non-automotive grade device focused on industrial LED driver use cases.
This Infineon LED Driver IC is an excellent choice for manufacturing, industrial control, telecommunications, and other applications requiring efficient and reliable LED control with high electrical and thermal performance. It is categorized under Electronics & Electricals > Electronics Components > LED Driver IC for easy selection in industrial component catalogs.
Explore more Infineon products and LED Driver IC solutions on EnvMart to meet diverse industrial and commercial electronic component requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Infineon LED Driver IC supports a maximum output current of 4 A, suitable for robust LED driving performance.
It operates with a 20V DC input voltage, making it suitable for advanced switching converter applications.
This unit has an operating temperature range from -40°C to 150°C, allowing it to perform in demanding industrial environments.
This LED driver IC is designed with 8 pins, housed in a compact VDSON-8 package.
It features a through-hole mounting type, which facilitates easy soldering and replacement on PCBs.
The dimensions of this model are 4mm in length, 4mm in width, and 1mm in height, allowing for space-saving designs.
Yes, it includes inherent shoot-through protection, which helps maintain system robustness against crossover conduction.
It is optimized for telecom and datacom switching converter applications, providing efficient and reliable LED control.
The built-in hysteresis enhances noise immunity on differential inputs, improving signal stability and system reliability.
This driver IC is part of the 2EDL8124G series, designed for industrial LED driver use cases.
The country of origin for this LED driver IC is India.
It is housed in a VDSON-8 package, which is compact and suitable for high-density electronic assemblies.
