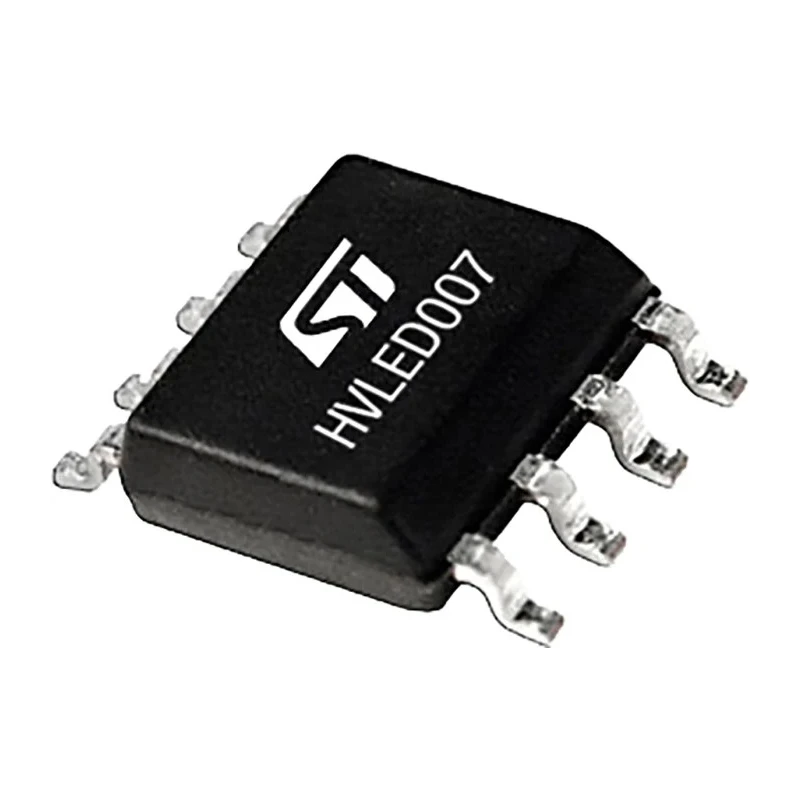

STMicroelectronics 5 Output Display Driver LED Driver 100W Transition Mode 5.5mA HVLED007TR
Specifications
| Country of Origin | Morocco |
|---|---|
| Brand | STMicroelectronics |
| Model | HVLED007TR |
| Mount Type | Surface |
| Series | HVLED007 |
| Sub Type | LED Driver |
| Operating Modes | Transition Mode |
| Number of outputs | 5 |
| Terminal type | Solder |
| Maximum Output Power | 100W |
| Input Voltage | 10.5, 22.5V |
| Power Dissipation | 0.65W |
| Standards/Approvals | EN 61000-3-2 |
| Driver Current | 5.5mA |
| LED Voltage | 0, 1.5V |
Key Features
- Supports a maximum output power of 100 W for LED lighting applications.
- Operates within an input voltage range of 10.5 V to 22.5 V with surface mount type.
- Features a driver current of 5.5 mA and LED voltage of 0 to 1.5 V.
- Equipped with 5 outputs optimized for transition mode operation to ensure efficiency.
- Complies with EN 61000-3-2 standards for electromagnetic compatibility.
- Allows operation in an extended temperature range down to -40 °C for robust performance.
- Incorporates an Input Current Shaper (ICS) for low total harmonic distortion (THD).
- Designed for indoor and outdoor solid-state lighting use cases.
Product Description
STMicroelectronics HVLED007TR is a 5 output display driver LED driver designed for high power factor isolated flyback converters operated in transition mode (quasi-resonant operation). This device delivers a maximum output power of 100 W and a driver current of 5.5 mA, making it suitable for advanced LED lighting systems requiring efficient power management.
The device operates over an input voltage range of 10.5 V to 22.5 V and features a surface mount design with solder terminal type. It supports a LED voltage range from 0 to 1.5 V and dissipates power efficiently at 0.65 W, ensuring reliability and thermal management.
HVLED007TR includes a special Input Current Shaper (ICS) circuit that enables the flyback converter to draw a near-sinusoidal input current with very low total harmonic distortion (THD), less than 10% at full load. It provides extended temperature range operation down to -40 °C while maintaining guaranteed electrical specifications.
The device supports a control input for isolated control loop regulation via phototransistor input and can be adapted for primary-regulated voltage loop control with minimal external circuitry, enhancing design flexibility.
This display driver complies with EN 61000-3-2 electromagnetic compatibility standards and is targeted at both indoor and outdoor solid-state lighting applications requiring high efficiency and robustness.
Maximum output power of 100 W with 5.5 mA driver current. Operational input voltage range of 10.5 to 22.5 V with surface mount package. Designed for transition mode operation with 5 outputs. Input Current Shaper (ICS) for low THD input current.
Extended temperature range down to -40 °C. Suitable for indoor and outdoor LED lighting installations. RoHS compliant with quality certification.
Package includes the HVLED007TR display driver IC intended for high efficiency LED power applications. Manufactured in Morocco, this new product assures compliance and reliability for power electronics and LED lighting systems. Explore more products in the LED Drivers category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 100 W, suitable for LED lighting applications.
It operates within an input voltage range of 10.5 V to 22.5 V.
This model features 5 outputs optimized for transition mode operation.
The driver current for the HVLED007TR is 5.5 mA.
It supports a LED voltage range from 0 to 1.5 V.
The HVLED007TR operates in transition mode, which is designed for efficiency in power management.
This model dissipates power efficiently at 0.65 W.
It complies with EN 61000-3-2 standards for electromagnetic compatibility.
The device allows operation in an extended temperature range down to -40 °C.
It features a surface mount type design with solder terminal type.
This LED driver is manufactured in Morocco.
It is designed for both indoor and outdoor solid-state lighting applications.
