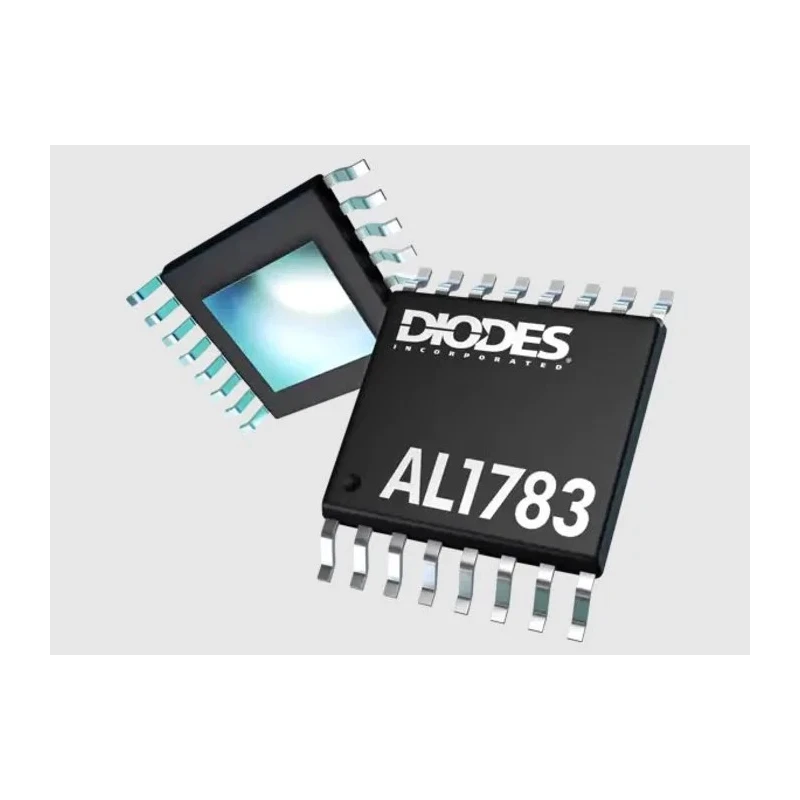

DiodesZetex LED Driver IC 65V 300 mA 1.2W 16-Pin TSSOP-16-EP AL1783T16E-13
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1.25mm |
| Length | 3.02mm |
| Model | AL1783T16E-13 |
| Width | 1.7mm |
| Mount Type | Through Hole |
| Series | AL1783 |
| Output Current | 300mA |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP-16-EP |
| Minimum Operating Temperature | -40°C |
| Maximum Output Power | 1.2W |
| Input Voltage | 65V |
| Maximum Output Voltage | 65V |
| Number of Pins | 16 |
| Automotive Standard | AEC-Q100 |
| Minimum Output Voltage | -0.3V |
| Dimming Operation | PWM |
Key Features
- The device features three independent PWM channel linear LED drivers for precise dimming control.
- Supports fast PWM dimming capable of eliminating e-flicker.
- Includes over temperature protection with thermal fold-back, shutdown, and automatic recovery.
- Operates within a temperature range of -40°C to 125°C suitable for automotive AEC-Q100 standard.
- Packaged in a Through Hole TSSOP-16-EP package with 16 pins for easy mounting.
- Delivers maximum output power of 1.2W and maximum output voltage of 65V.
- Ideal for connected, commercial, industrial, and RGB LED lighting applications.
Product Description
DiodesZetex AL1783T16E-13 LED Driver IC is a versatile three-channel linear LED driver integrated circuit designed to provide precise current control and dimming capabilities for LED lighting solutions. Featuring a 65V input voltage and 300 mA output current, this device is packaged in a compact 16-pin TSSOP-16-EP module suitable for through-hole mounting. Compliance with the AEC-Q100 automotive standard ensures reliability in demanding environments.
The AL1783T16E-13 supports independent PWM dimming control on each output channel, enabling flexible and flicker-free lighting effects especially in RGB LED configurations. Its fast PWM dimming eliminates e-flicker, enhancing visual comfort and device performance. Thermal fold-back, thermal shutdown, and automatic recovery protections safeguard the IC against overheating, making it well suited for industrial and commercial applications.
Operating temperature range of -40°C to 125°C broadens the application scope to automotive and rugged conditions. The device’s compact dimensions of 3.02mm length, 1.7mm width, and 1.25mm height promote space-saving designs.
The device features three independent PWM channel linear LED drivers for precise dimming control. Supports fast PWM dimming capable of eliminating e-flicker. Includes over temperature protection with thermal fold-back, shutdown, and automatic recovery.
Operates within a temperature range of -40°C to 125°C suitable for automotive AEC-Q100 standard. Packaged in a Through Hole TSSOP-16-EP package with 16 pins for easy mounting. Delivers maximum output power of 1.2W and maximum output voltage of 65V.
Ideal for connected, commercial, industrial, and RGB LED lighting applications.
This LED driver IC is ideal for LED lighting systems in industrial automation, commercial signage, architectural lighting, and automotive lighting solutions, offering robust operation and enhanced dimming functionality. It supports both standalone and connected lighting configurations.
Explore a wide range of LED Driver ICs designed for various industrial and commercial LED applications to optimize illumination and control through EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output current of this model is 300 mA.
It operates with an input voltage of up to 65V.
The dimensions of this unit are 3.02 mm in length, 1.7 mm in width, and 1.25 mm in height.
It has an operating temperature range of -40°C to 125°C.
Yes, it supports independent PWM dimming control on each output channel.
It is packaged in a Through Hole TSSOP-16-EP package with 16 pins.
It includes over temperature protection with thermal fold-back, shutdown, and automatic recovery.
Yes, it complies with the AEC-Q100 automotive standard.
The maximum output power is 1.2W.
It is ideal for connected, commercial, industrial, and RGB LED lighting applications.
The minimum output voltage is -0.3V.
It features three independent PWM channel linear LED drivers.
