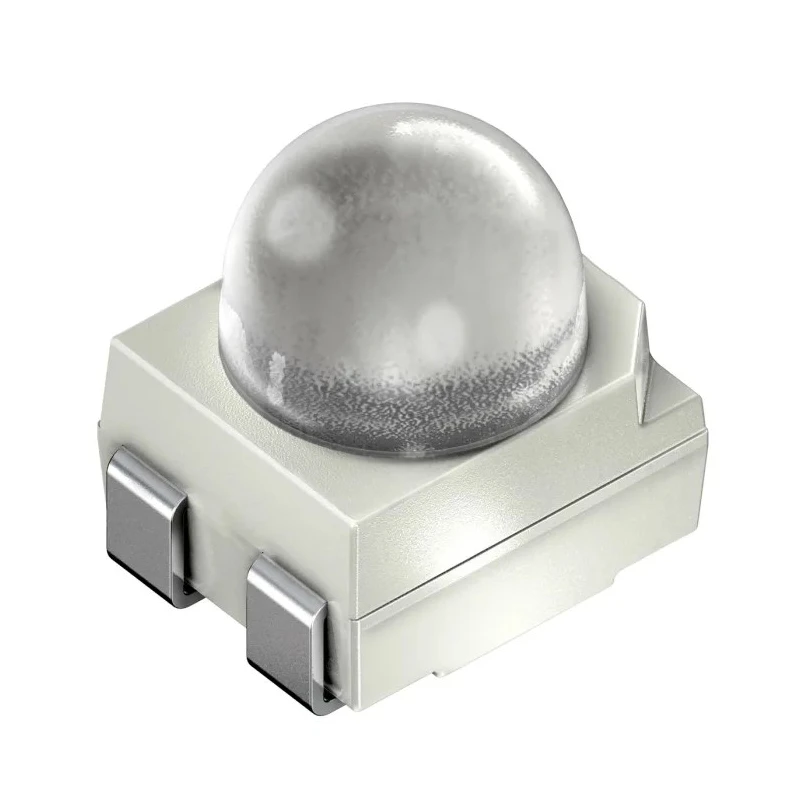

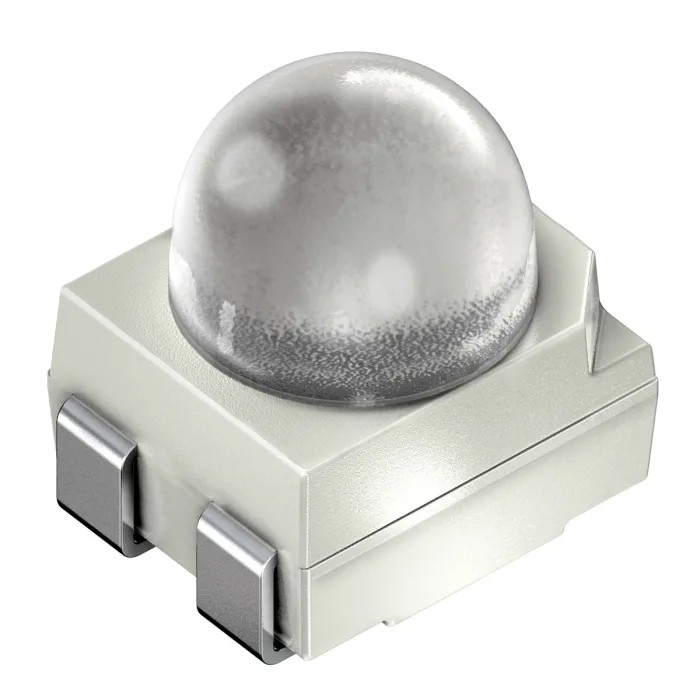

ams OSRAM 2.5 V Red LED PLCC 4 Surface Mount Power TOPLED Lens LS E63F-EAFB-1-1

Free Delivery in India | Lowest Global Shipping Charges

ams OSRAM 2.5 V Red LED PLCC 4 Surface Mount Power TOPLED Lens LS E63F-EAFB-1-1

Name: ams OSRAM 2.5 V Red LED PLCC 4 Surface Mount Power TOPLED Lens LS E63F-EAFB-1-1
Brand: ams OSRAM
SKU: 418537
Price: 0.26 USD
Availability: InStock



Category LED Lens Brand ams OSRAM Condition New

Specifications

Country of Origin	Malaysia
Brand	ams OSRAM
Model	LS E63F-EAFB-1-1
Packaging	Tape & Reel
Mount Type	Surface
Series	Power TOPLED Lens
Maximum forward current	70mA
Viewing angle	30 °
Package Type	PLCC 4
Standards/Approvals	RoHS
LED Colour	Red
Dominant Wavelength	633nm
Forward Voltage	2.5V
Number of Pins	4
LED Luminosity	6.7 cd
Lens Dimensions	3.4 x 3 x 3.7 mm
Lens Shape	Rectangular
LED Luminous Flux	6400 mLm

Key Features

Maximum forward current of 70 mA ensures efficient operation.
Compact PLCC 4 package with a rectangular dome lens shape.
Provides a focused 30° viewing angle for directed illumination.
High luminous flux output of 6400 mLm and luminosity of 6.7 cd.
Lens dimensions of 3.4 x 3 x 3.7 mm with clear finish for optimal light transmission.
Supplied in Tape & Reel packaging for automated assembly.
Complies with RoHS standards ensuring environmentally safe production.
Dominant wavelength is 633 nm, providing deep red color emission.

Product Description

ams OSRAM LS E63F-EAFB-1-1 is a high-performance 2.5 V Red LED housed in a PLCC 4 Surface mount package, designed as part of the Power TOPLED Lens series. This LED features a rectangular dome lens with clear finish, offering a focused viewing angle of 30 degrees that ensures precise light directionality. Rated for a maximum forward current of 70 mA and a forward voltage of 2.5 V, this component delivers a luminous flux of 6400 mLm and a luminosity of 6.7 cd suitable for demanding illumination uses.

This LED is ideal for applications including traffic signaling, backlighting for switches and instrument displays, indoor signage, automotive marker lighting, and symbol illumination in various industrial, commercial, and automotive sectors. Its SMT PLCC-4 package supports efficient heat dissipation and compatibility with automated manufacturing processes. The product meets RoHS environmental standards, reflecting compliance with hazardous substance restrictions.

The lens dimensions (3.4 x 3 x 3.7 mm) and clear lens color provide excellent light output quality, focusing red light at a dominant wavelength of 633 nm. This emission characteristic is particularly suited for signage and indicator uses requiring high visibility and color fidelity.

Maximum forward current of 70 mA for optimal brightness. Compact PLCC 4 package with dome lens shape. Surface mount type supports modern PCB assembly. Focused 30° beam angle for precise lighting applications. High luminous flux and luminosity for bright illumination.

Clear lens finish enhances light emission quality. RoHS compliant for environmental safety. Dominant wavelength of 633 nm for rich red color. Packaging in Tape & Reel ensures production efficiency.

Manufactured in Malaysia, the LS E63F-EAFB-1-1 maintains consistent quality assurance. This component is well-suited for industrial, construction, automotive, and manufacturing lighting tasks requiring reliable, high-intensity red LED light sources. Explore related LED lighting solutions and components for diverse electronic systems at EnvMart.
