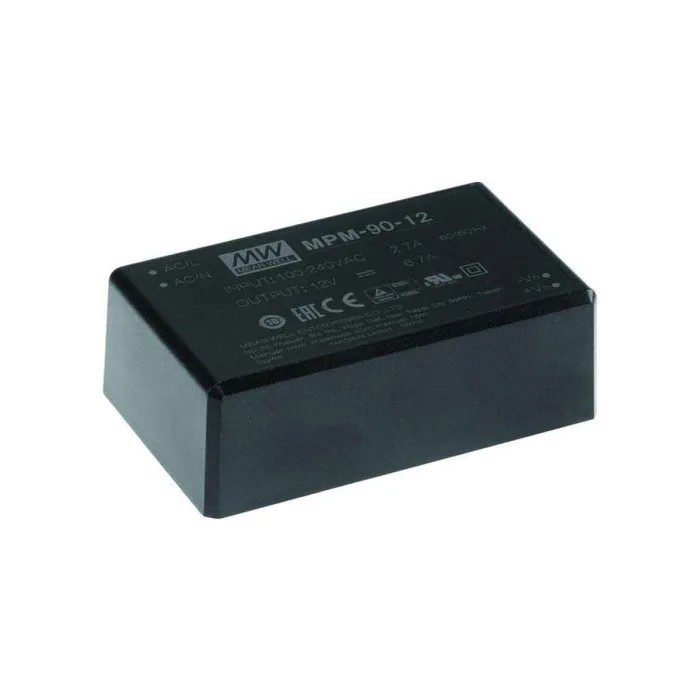

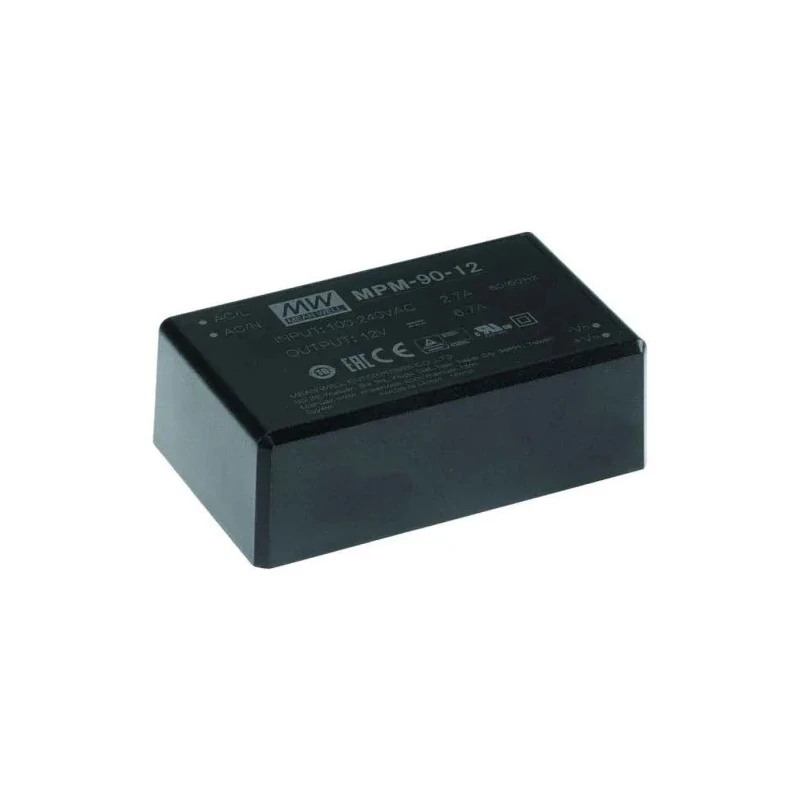

MEAN WELL Switching Power Supply 12V DC 80W, 264V AC Input, Chassis Mount, MPM-90-12

MEAN WELL MPM-90-12 is a high density, small size medical grade switching power supply delivering a stable 12V DC output at 80W power capacity. It is engineered for reliable operation across an input voltage range of 80V AC to 264V AC with a maximum output current of 6.7A. The unit is designed for chassis mounting, making it suitable for industrial, medical, laboratory, and commercial applications requiring efficient and compact power sources.

This power supply features extremely low leakage current and requires no minimum load to maintain stable output, enhancing operational safety and performance endurance. The device achieves an efficiency of 92%, minimizing power wastage and heat generation, thereby improving energy savings and reliability.

The operational temperature range spans from -30°C to 80°C, ensuring performance under rigorous environmental conditions. Its compact dimensions of 87mm by 52mm by 87mm and light weight of 197 grams facilitate easy incorporation into constrained spaces without adding significant load.

MEAN WELL MPM-90-12 meets multiple internationally recognized standards and approvals including UL 62368-1, TUV BS EN/EN 62368-1, CSA C22.2 No. 62368-1, and others, underlining its compliance for both safety and performance benchmarks.

This power supply is essential for applications in industrial instrumentation, medical devices, telecommunications equipment, and other areas requiring stable low voltage DC power. Its chassis mounting and robust build ensure secure installation in system assemblies.

High density small size medical grade power supply. Operates with an input range from 80V AC to 264V AC. Output current rating of 6.7A at 12V DC voltage. Designed with extremely low leakage current and no minimum load requirement.

Efficiency rating of 92% ensures low power loss. Operating temperature ranges from -30°C to 80°C. Compact dimensions of 87mm length, 52mm width, and 87mm depth. Robust chassis mount construction for secure installation. Compliance with multiple standards including UL 62368-1 and TUV EN 62368-1.

Weight of approximately 197 grams for lightweight integration. Explore the MEAN WELL series and other switching power supplies on EnvMart for a wide range of high-quality power solutions tailored to your industrial and commercial needs.
