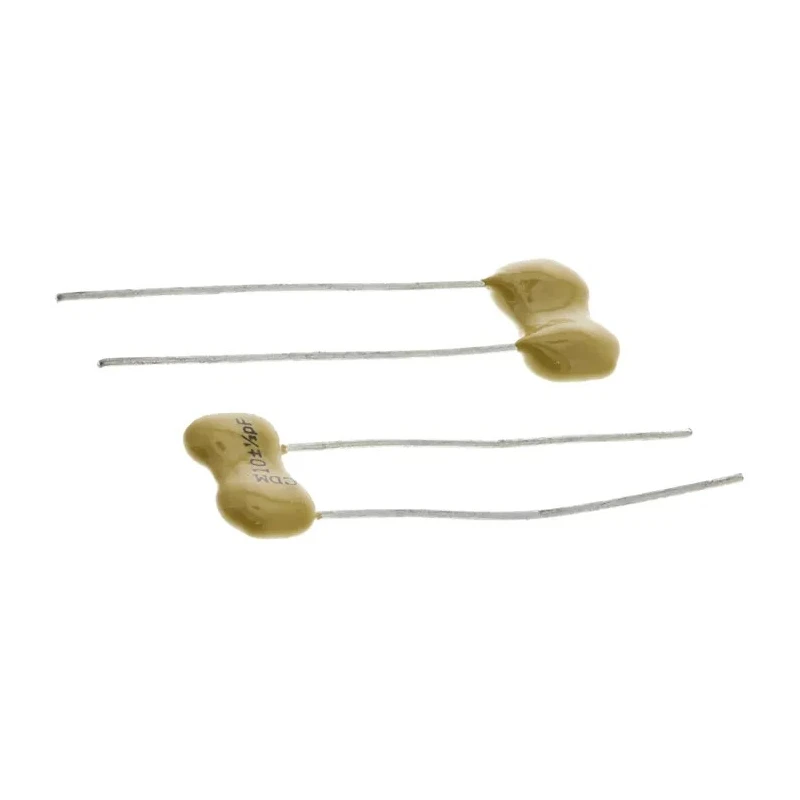

Cornell-Dubilier 10 pF 500V dc 0.5 pF Tolerance Mica Capacitor CD15CD100DO3F

Cornell-Dubilier CD15CD100DO3F 10 pF 500V dc Mica Capacitor from the CD15 series offers high stability and precision, making it ideal for timing and close tolerance electronic applications.

This professional grade flat mica capacitor is constructed using an epoxy dipped radial wire design, providing excellent non-flammable and high reliability characteristics. It supports RF tuned circuits and pulse operation thanks to its flame retardant epoxy coating.

Rated for 500 V dc with a tight capacitance tolerance of 0.5 pF, it ensures consistent performance even in harsh operating environments with a temperature range from -55°C up to 125°C.

The capacitor features a 5.9 mm lead pitch for through-hole mounting and compact dimensions of 11.4 mm in length, 4.3 mm in width, and 9.1 mm in height. It contains 2 pins and is delivered on a reel, facilitating efficient insertion into automated machinery during manufacturing.

This CD15 series capacitor provides excellent stability for timing applications. Constructed with mica dielectric for high reliability and temperature tolerance. Rated voltage of 500 V dc suitable for demanding circuits.

Features radial dipped epoxy coating, enhancing pulse operation and RF tuning. The flat construction and through-hole mount type enables easy PCB integration. Lead pitch is 5.9 mm with dimensions: length 11.4 mm, width 4.3 mm, height 9.1 mm.

Operates reliably between -55°C and 125°C temperatures. RoHS compliant ensuring environmental safety. Pin count of 2 for standard connectivity. Packaged on a reel for efficient automated assembly.

This Mica Capacitor finds use in industrial, laboratory, communication, and power electronics needing precise timing and stable capacitance performance over a wide temperature range.
