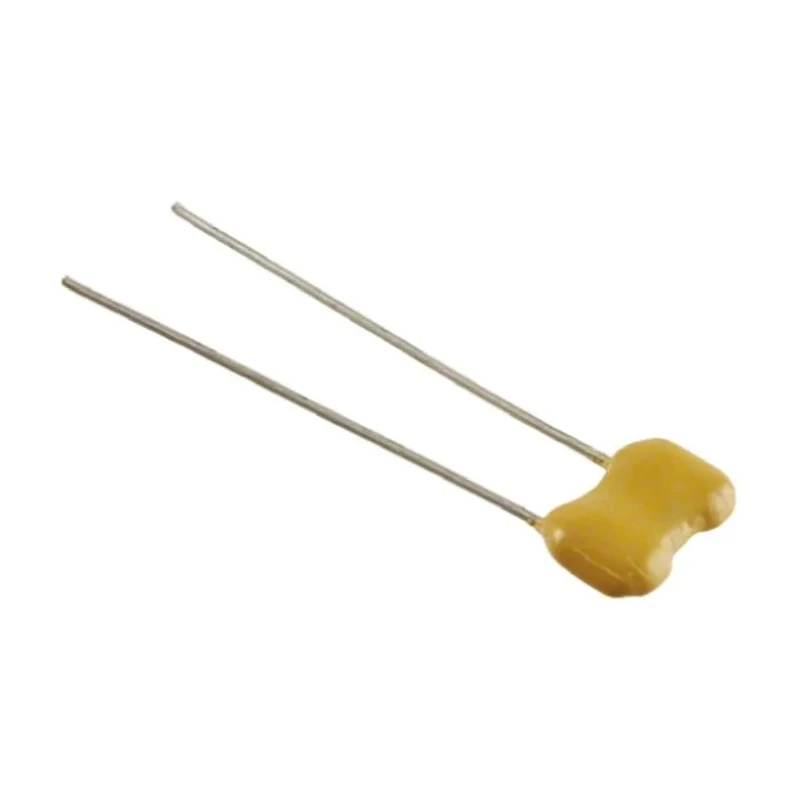

Cornell-Dubilier 220 pF 500V DC ±5% Tolerance Mica Capacitor Flat Construction Radial Through Hole CD15FD221JO3F
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V dc |
| Brand | Cornell-Dubilier |
| Height | 9.7mm |
| Length | 11.7mm |
| Model | CD15FD221JO3F |
| Packaging | Reel |
| Width | 5.1mm |
| Mount Type | Through Hole |
| Case Material | Epoxy |
| Construction | Flat |
| Series | CD15 |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±5 % |
| Capacitance | 220pF |
| Minimum Operating Temperature | -55°C |
| Terminal type | Radial |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Lead Pitch | 5.9mm |
| Dielectric | Mica |
Key Features
- Capacitance of 220 pF suitable for precision timing circuits.
- Constructed with mica dielectric and epoxy case for stability and flame retardance.
- Lead pitch of 5.9 mm designed for through hole radial mounting.
- Operating temperature range from -55°C to 125°C for versatile applications.
- Flat construction with dimensions 11.7 mm length, 9.7 mm height, and 5.1 mm width.
- Radial terminal type with 2 pins for secure electrical connection.
- RoHS compliant ensuring environmental safety.
- Ideal for RF tuned circuits and pulse operation requiring high stability.
Product Description
Cornell-Dubilier CD15FD221JO3F is a 220 pF mica capacitor designed with a 500V DC voltage rating and a tight tolerance of ±5%. It features a flat construction case made of flame retardant epoxy material and is intended for use in professional electronic applications requiring high stability and reliability.
This radial, through-hole mounted capacitor has a lead pitch of 5.9 mm and terminals designed for straightforward PCB insertion. The device operates effectively across a wide temperature range from -55°C to 125°C.
The capacitor is built on a mica dielectric, known for excellent stability, and dipped in resin to support high temperature and non-flammable operation. Its dimensions measure 11.7 mm in length, 9.7 mm in height, and 5.1 mm in width, making it compact yet robust for timing, RF, and pulse circuit applications.
Cornell-Dubilier's CD15 series capacitors are crafted to meet demands for high precision in electronic components. They conform to RoHS standards, ensuring compliance with environmental regulations.
Capacitance of 220 pF with ±5% tolerance for precision performance. Voltage rating up to 500V DC for demanding applications. Epoxy case material provides flame retardant protection. Radial lead type with 2 pins and 5.9 mm lead pitch for through-hole mounting.
Operating temperature range from -55°C to 125°C supports diverse usage environments. Flat mica dielectric construction enhances stability in timing circuits. Conforms to RoHS environmental standards. Suitable for RF tuned circuits and pulse operation in industrial, laboratory, and electronic component manufacturing.
Professional resin-dipped design for reliability and durability.
This mica capacitor is an essential component suitable for electronic industry professionals seeking reliable and stable capacitors for power and signal applications. Browse more details and related Mica Capacitors at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this model is 220 pF, with a tolerance of ±5%.
This mica capacitor has a voltage rating of 500V DC.
It operates effectively within a temperature range of -55°C to 125°C.
The dimensions of this model are 11.7 mm in length, 9.7 mm in height, and 5.1 mm in width.
It is designed for through-hole mounting with a radial terminal type and a lead pitch of 5.9 mm.
The capacitor features a flat construction with a mica dielectric and an epoxy case for stability and flame retardance.
This model has 2 pins for secure electrical connection.
Yes, it conforms to RoHS standards, ensuring compliance with environmental regulations.
It is suitable for RF tuned circuits and pulse operation in various professional electronic applications.
This model belongs to the CD15 series of capacitors.
The capacitor is packaged on a reel for convenient handling and use.
It uses a mica dielectric, known for its excellent stability.
