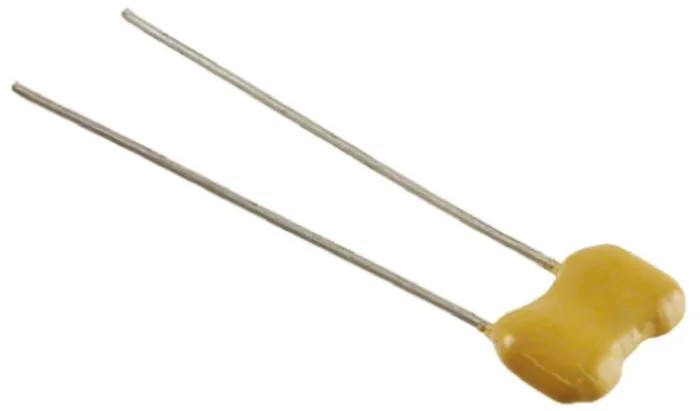

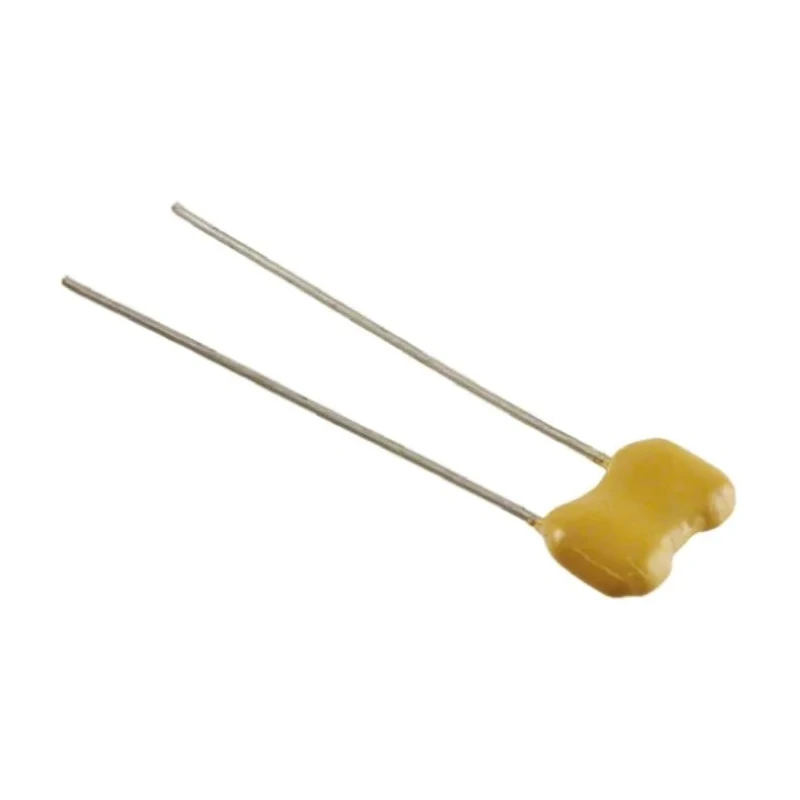

Cornell-Dubilier 150 pF 500V ±5% Tolerance Mica Capacitor CD15 Flat
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | Cornell-Dubilier |
| Height | 9.4mm |
| Length | 11.7mm |
| Model | CD15 |
| Packaging | Reel |
| Width | 4.8mm |
| Mount Type | Through Hole |
| Case Material | Epoxy |
| Construction | Flat |
| Series | CD15 |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±5 % |
| Capacitance | 150pF |
| Minimum Operating Temperature | -55°C |
| Terminal type | Radial |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Lead Pitch | 5.9mm |
| Dielectric | Mica |
Key Features
- Constructed with epoxy resin-dipped flat mica dielectric for durability.
- Rated for 500 volts with a capacitance of 150 pF and ±5% tolerance.
- Through-hole radial mount with 5.9 mm lead pitch for easy PCB installation.
- Operates reliably within −55°C to 125°C temperature range.
- Features two pins with a compact flat design measuring 11.7 mm length and 9.4 mm height.
- Non-flammable construction and RoHS compliant for environmental safety.
- Ideal for timing circuits and close tolerance applications requiring high stability.
- Professional radial wire ended for RF tuned circuit and pulse operation suitability.
Product Description
Cornell-Dubilier CD15FD151JO3F is a premium 150 pF mica capacitor rated at 500 V with ±5% capacitance tolerance, featuring a flat, resin-dipped epoxy case construction. Engineered for use in industrial, electronic manufacturing, and laboratory environments, this CD15 series capacitor offers superior stability and reliability for timing and precision circuits.
The through-hole radial mount with a lead pitch of 5.9 mm allows for secure and stable installation on printed circuit boards. Its operating temperature range from −55°C to 125°C ensures performance stability under varied environmental conditions.
Constructed from flame retardant epoxy and mica dielectric, the capacitor is non-flammable and RoHS compliant, meeting modern safety and environmental standards. The compact size with dimensions of 11.7 mm length, 9.4 mm height, and 4.8 mm width supports densely packed circuit designs.
Epoxy resin-dipped flat mica dielectric for high reliability. Capacitance: 150 pF with ±5% tolerance. Rated voltage: 500 V DC. Radial through-hole mount with 5.9 mm lead pitch. Operating temperature range: −55°C to 125°C.
Non-flammable and RoHS compliant. Designed for RF tuned circuits and pulse operations. Compact dimensions support precise circuit layouts.
This mica capacitor is well-suited for applications in industrial electronics manufacturing, telecommunications, RF equipment, and precision measuring instruments, where stable capacitance and reliability are critical. Its construction ensures long-term durability and performance under demanding conditions.
Explore more high-quality mica capacitors and related electronic components at EnvMart for your professional and industrial projects.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance of 150 pF and is rated for 500 volts.
It has a tolerance of ±5%.
The capacitor measures 11.7 mm in length, 9.4 mm in height, and 4.8 mm in width.
It operates reliably within a temperature range of −55°C to 125°C.
It features a through-hole radial mount with a lead pitch of 5.9 mm.
The capacitor is constructed with an epoxy resin-dipped flat mica dielectric and is non-flammable.
Yes, it is RoHS compliant, meeting modern environmental safety standards.
It is ideal for timing circuits and close tolerance applications requiring high stability, as well as RF tuned circuits and pulse operations.
This model has two pins.
The capacitor is packaged on a reel.
The dielectric material used is mica.
This capacitor belongs to the CD15 series.
