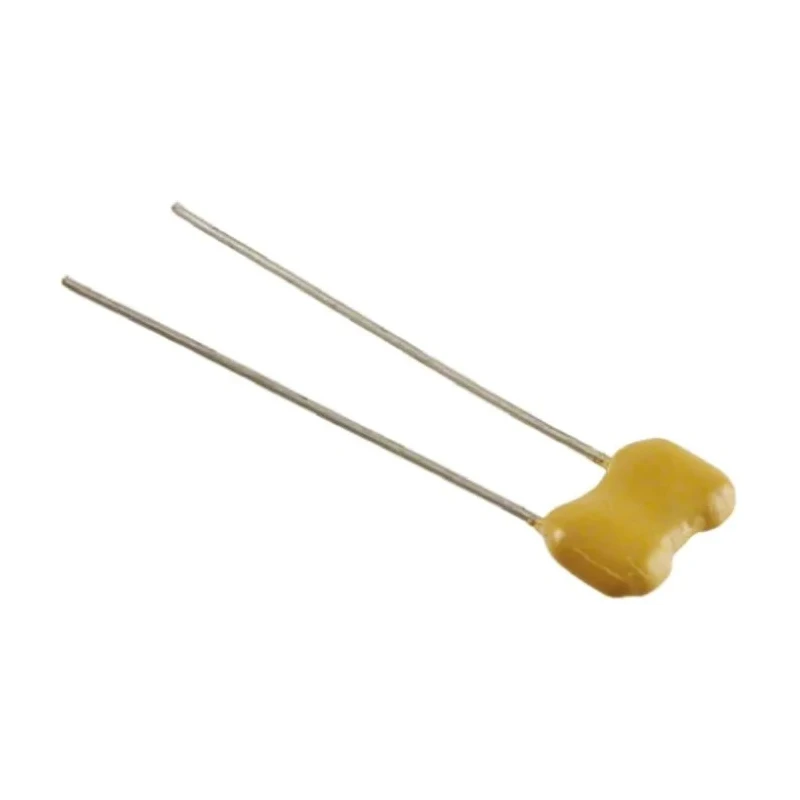

Cornell-Dubilier 200 pF 500V ±5% Tolerance Flat Mica Capacitor Through Hole CD15

Cornell-Dubilier CD15 200 pF Mica Capacitor is a high-quality flat construction capacitor rated for 500V and ±5% tolerance, designed for through hole PCB mounting. It features a mica dielectric providing excellent long-term stability and reliability for precision timing and close tolerance applications.

The capacitor operates reliably over a broad temperature range from -55°C to 125°C and is housed in a flame retardant epoxy case, enabling use in RF tuned circuits and pulse operation environments. The radial dipped silver mica design ensures professional-grade performance.

Its compact physical dimensions include a length of 11.7mm, height of 9.7mm, and width of 4.8mm with a lead pitch of 5.9mm, making it suitable for various electronic assemblies. With a pin count of 2, it supports straightforward electrical interfacing.

This capacitor comes packaged on a reel, facilitating automated assembly processes. It complies with RoHS directives, endorsing environmentally safe manufacturing standards. This capacitor uses a mica dielectric for excellent stability and reliability.

It operates within a temperature range from -55°C up to 125°C. The lead pitch is 5.9mm, suitable for through hole mounting types. The compact dimensions are 11.7mm length, 9.7mm height, and 4.8mm width. It features a flame retardant epoxy case suitable for RF tuned and pulse operation circuits.

The capacitor is supplied on a reel for convenient volume assembly. Designed to meet RoHS standards ensuring environmental compliance. Pin count is 2, supporting standard electrical connections.

This capacitor is ideal for industrial electronics, telecommunications, instrumentation, and precision analog circuits requiring stable and reliable capacitance components. Explore the Electronics Components catalog on EnvMart for additional Mica Capacitors and passive component solutions.
