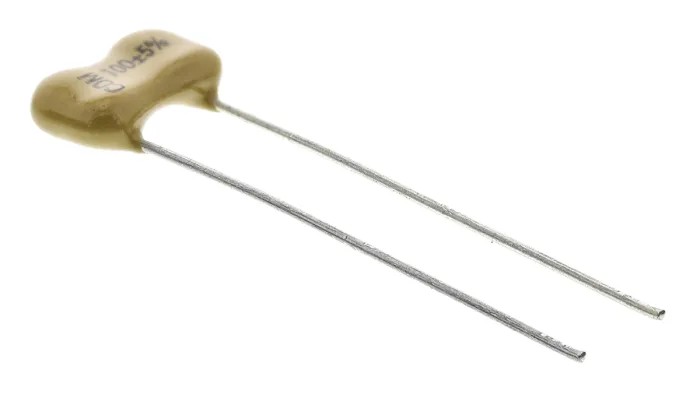

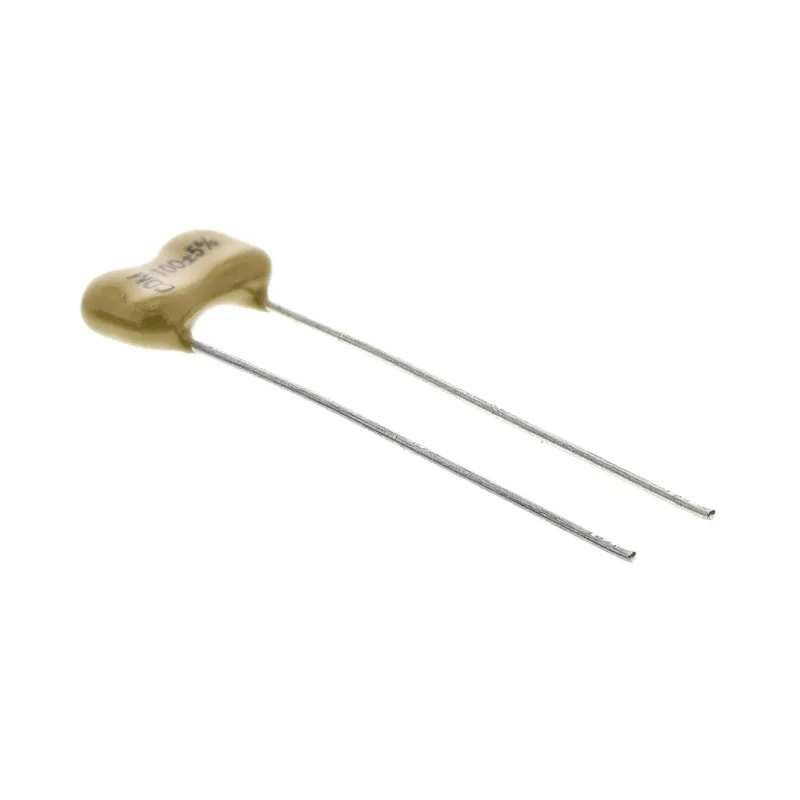

Cornell-Dubilier 100 pF Mica Capacitor 500 V dc ±5 % Tolerance, Flat Construction CD15FD101JO3F
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V dc |
| Brand | Cornell-Dubilier |
| Height | 9.1mm |
| Length | 11.7mm |
| Model | CD15FD101JO3F |
| Packaging | Reel |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Case Material | Epoxy |
| Construction | Flat |
| Series | CD15 |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±5 % |
| Capacitance | 100pF |
| Minimum Operating Temperature | -55°C |
| Terminal type | Radial |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Lead Pitch | 5.9mm |
| Dielectric | Mica |
| RS PRO 100pF Mica Capacitor 500V dc ±1% ToleranceBrand | RS PRO |
Key Features
- Capacitance of 100 picoFarads designed for stable operation.
- Flat construction with epoxy case material ensures durability and safety.
- Radial lead type with 5.9 mm lead pitch suitable for through-hole mounting.
- Operating temperature range from -55°C to 125°C supports diverse environments.
- High stability and low loss due to mica dielectric construction.
- Compliance with RoHS standards ensures environmental safety.
- Pin count of 2 supports common capacitor configurations.
- Non-flammable epoxy coating suitable for RF tuned circuits and pulse operation.
Product Description
The Cornell-Dubilier CD15FD101JO3F mica capacitor is a high-quality passive electronic component designed for precision applications requiring stable capacitance and reliable voltage tolerance.
This 100 pF capacitor is rated for 500 volts DC, with a tolerance of ±5%, ensuring consistent performance in demanding circuits. Featuring a flat epoxy-encapsulated construction with radial leads and 5.9 mm lead pitch, it is suitable for through-hole mounting on printed circuit boards.
The mica dielectric provides excellent stability and low loss, making it ideal for timing and close tolerance applications in RF circuits and pulse operation. It operates efficiently across a wide temperature range from -55°C to 125°C, protected by a flame retardant epoxy coating for safety.
The capacitor is RoHS compliant, supporting environmentally conscious manufacturing requirements. Capacitance of 100 pF for precise circuit design. Rated voltage of 500 V dc to handle high voltage demands. Flat epoxy construction ensures ruggedness and flame resistance.
Through-hole radial mounting with 5.9 mm lead pitch for PCB compatibility. Wide operating temperature range provides versatility. Mica dielectric offers excellent stability and reliability. RoHS compliance ensures eco-friendly design.
Compact dimensions aid space-saving on circuit boards. Pin count: 2, standard for Mica Capacitors. This capacitor is widely used in industrial electronics, telecommunications, instrumentation, and RF applications where high stability and low noise are critical.
EnvMart offers this component as part of its comprehensive range of electronic parts, facilitating professional-grade design and manufacturing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this model is 100 picoFarads (pF).
It is rated for a maximum voltage of 500 volts DC.
This capacitor has a tolerance of ±5%.
The operating temperature range is from -55°C to 125°C.
It supports through-hole mounting with radial leads.
The dimensions are 11.7 mm in length, 4.6 mm in width, and 9.1 mm in height.
The lead pitch is 5.9 mm.
It features a flat construction with an epoxy case and a mica dielectric.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
This capacitor has a pin count of 2, which is standard for mica capacitors.
It is widely used in industrial electronics, telecommunications, instrumentation, and RF applications.
The capacitor is packaged on a reel.
