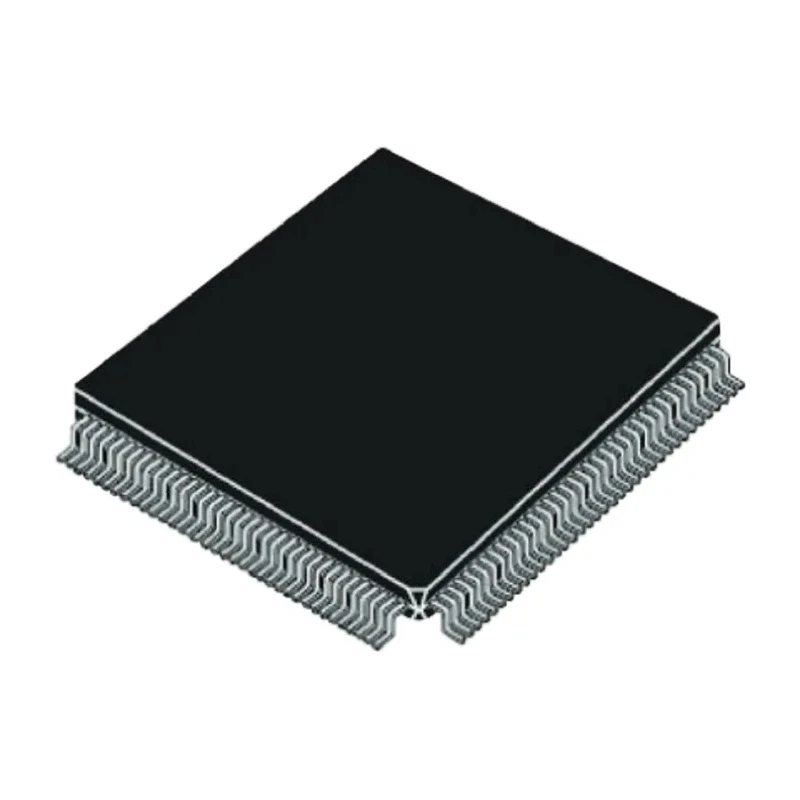

Lattice Semiconductor Complex Programmable Logic Device MachXO2 111 I/O, 7.24 ns Propagation Delay LCMXO2-2000HC-4TG144I

Lattice Semiconductor LCMXO2-2000HC-4TG144I is a complex programmable logic device (CPLD) from the MachXO2 family, designed to provide advanced logic flexibility with 111 user I/Os and 2112 logic elements. This device features in-system programmability enabling dynamic configuration changes, making it suitable for various electronic applications.

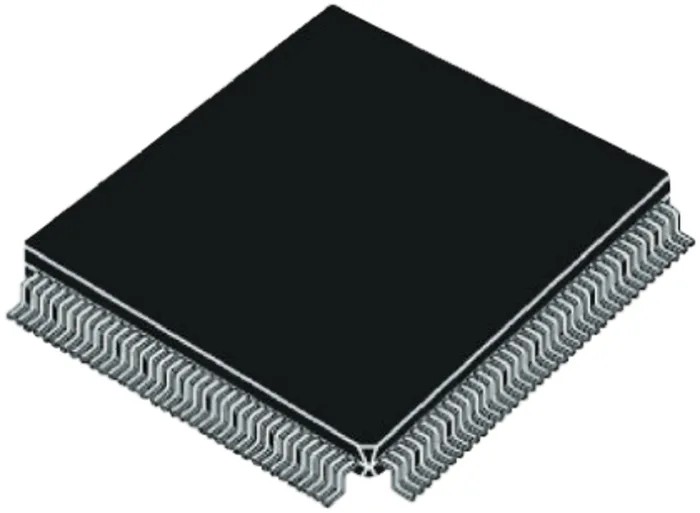

Operating parameters include a minimum supply voltage of 2.38 V and a maximum of 3.46 V, with the ability to withstand temperatures ranging from -40°C to 125°C, supporting use in demanding industrial environments. The component is housed in a surface mount TQFP package with 144 pins, measuring 20 mm in length and 1.4 mm in height.

It supports a maximum operating frequency of 140 MHz with a propagation delay time of 7.24 ns, facilitating high-speed data processing and control operation. While it does not have individual output enable control or automotive standard certifications, it offers re-programmability, allowing designers to update logic configurations without hardware replacements.

This CPLD is well suited for industrial, electronic component manufacturing, and embedded control systems where adaptable logic solutions are required. It enables improved production efficiency in embedded system designs, telecommunications, and control applications.

MachXO2 series with surface mount TQFP package. 111 user I/Os and 2112 logic elements for complex logic management. Operating voltage from 2.38 V to 3.46 V ensures flexible integration. Thermal range from -40°C to 125°C suitable for harsh environments.

Maximum frequency of 140 MHz with low propagation delay of 7.24 ns. Supports in-system programmability for design versatility. EnvMart provides a wide selection of semiconductor programmable logic devices supporting advanced industrial and electronic design requirements.
