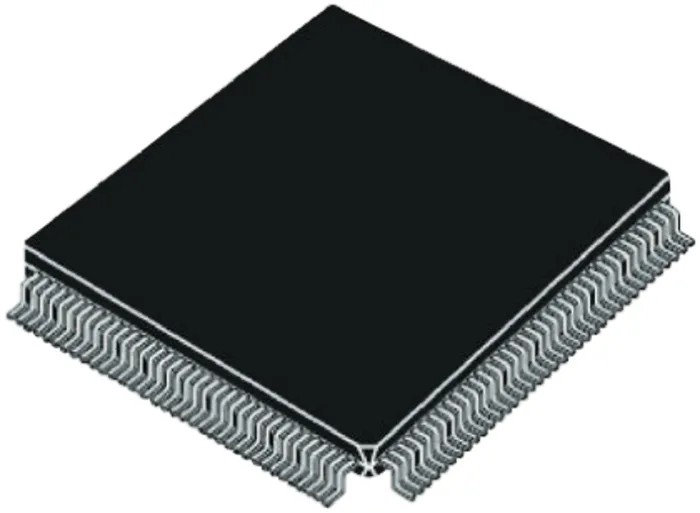

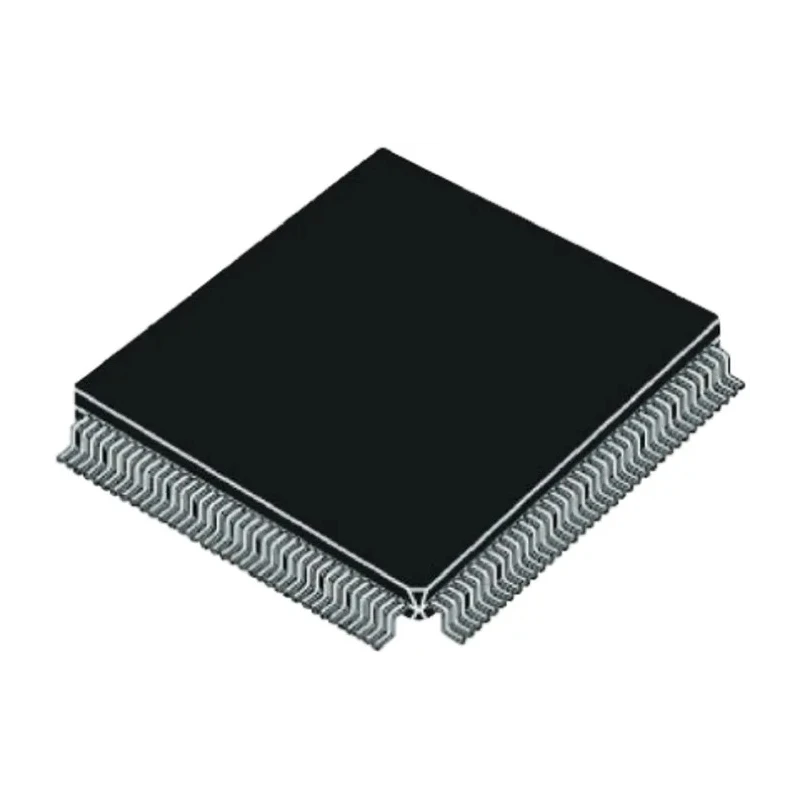

Lattice Semiconductor Complex Programmable Logic Device MachXO2 114 I/O, 7.24 ns, 4320 Logic Elements LCMXO2-4000HC-4TG144I

Lattice Semiconductor LCMXO2-4000HC-4TG144I is a complex programmable logic device (CPLD) from the MachXO2 family, offering 114 user I/Os and 4320 logic elements. This device features a maximum propagation delay time of 7.24 ns and supports in-system programmability, making it ideal for applications requiring high flexibility and fast signal processing.

The device is housed in a 144-pin Thin Quad Flat Package (TQFP) designed for surface mounting, with compact dimensions of 20 mm length and 1.4 mm height. Its wide operating temperature range (-40°C to 125°C) and supply voltage range (2.38 V to 3.46 V) enable reliable operation in various harsh industrial and electronic environments.

Operating at a maximum frequency of 140 MHz, this CPLD supports re-programmability which facilitates design modifications and testing iterations. Although it does not feature individual output enable control, it remains suitable for programmable logic applications such as digital signal processing, embedded system control, and telecommunications.

Common use cases include industrial automation, electronic component design, manufacturing process control, telecommunications equipment, and embedded systems requiring programmable logic solutions. The surface mount package allows for efficient integration into compact circuit boards.

High-speed CPLD with 7.24 ns propagation delay time. In-system programming enables flexible development cycles. Wide operating temperature range from -40°C to 125°C. Supports 114 user I/Os and 4320 logic elements for complex logic designs.

Compact surface mount TQFP package with 144 pins. Maximum frequency of 140 MHz for demanding applications. Supply voltage range of 2.38 V to 3.46 V ensures versatile power options. Explore the Electronics & Electricals category at EnvMart for similar advanced Programmable Logic ICs and semiconductor solutions.
