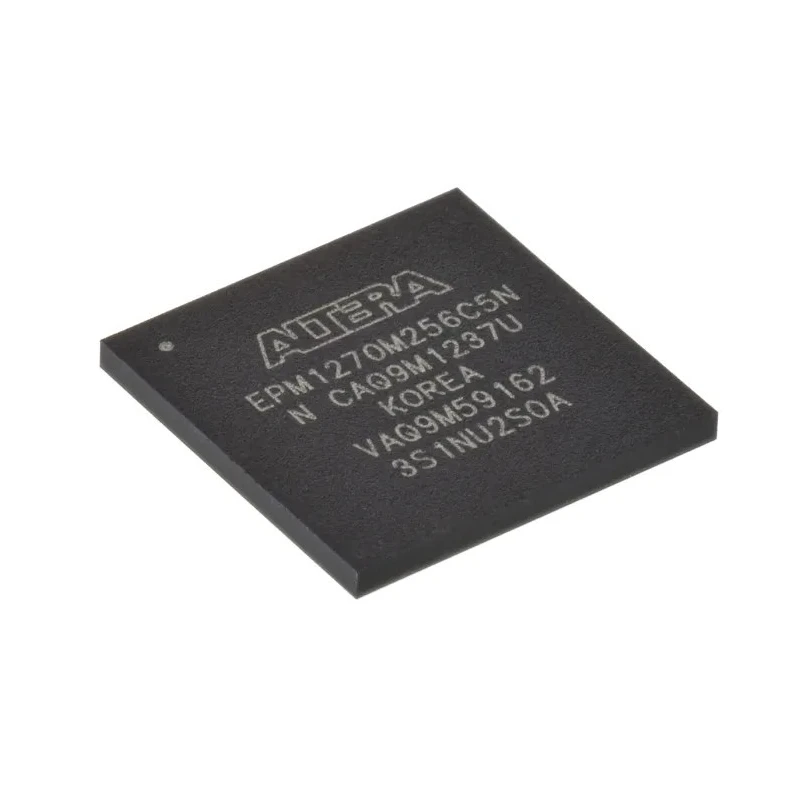

Altera Complex Programmable Logic Device MAX II 980 Macro Cells, 212 I/O, 6.2 ns Propagation Delay, 1270 EPM1270M256C5N

Altera EPM1270M256C5N is a Complex Programmable Logic Device (CPLD) from the MAX II series designed to provide high-speed digital logic functionality. Featuring 980 macro cells and 1270 logic elements, it facilitates efficient design of custom digital circuits. The device includes 212 user input/output pins, enabling complex connectivity options in electronic systems.

It operates with a maximum propagation delay of 6.2 nanoseconds, enabling fast signal processing for critical timing applications. The device supports in-system programmability, allowing developers to program and reprogram the logic as required during development and use.

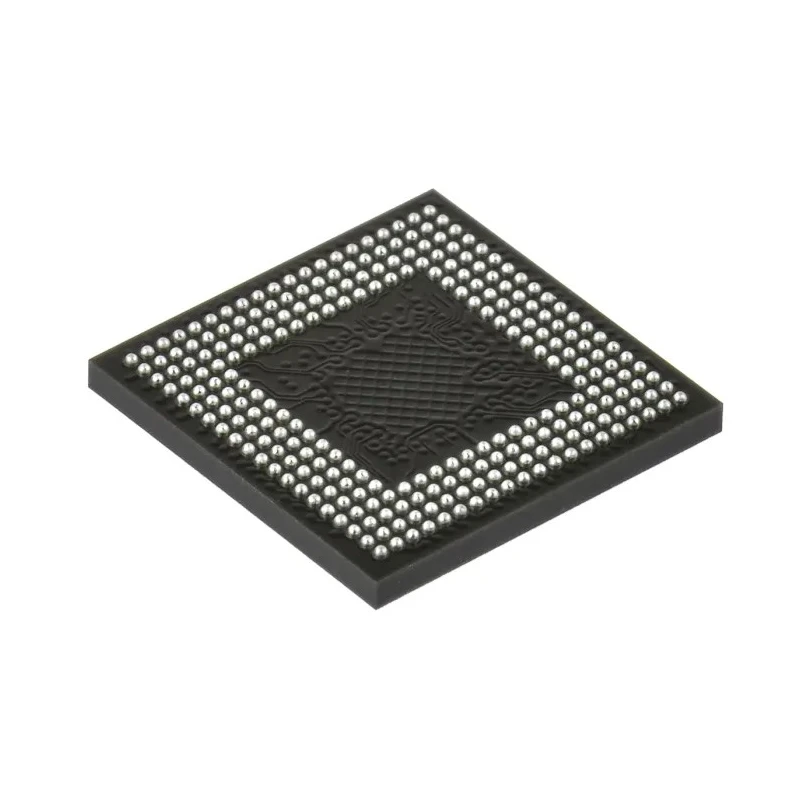

Encapsulated in a compact 256-pin MBGA surface mount package, the module offers a height of 1.05 mm and length of 11 mm, making it suitable for densely packed printed circuit boards in industrial, commercial, and communications equipment.

Operating voltage ranges from 3 V to a maximum of 3.6 V, and it supports a maximum operating frequency of 304 MHz, ensuring dependable performance in various operating environments. The device includes individual output enable control for precise signal management.

Designed for use in applications such as industrial controls, telecommunications, computing hardware, and embedded systems, this CPLD offers robust reliability across an operating temperature span from 0°C to 85°C. It complies with the Restriction of Hazardous Substances (RoHS) standards for environmental safety.

In system programmable device suitable for complex logic designs. Maximum propagation delay time is 6.2 nanoseconds ensuring high-speed operation. Provides 1270 logic blocks/elements for extensive logic capacity. Comes in 256-pin MBGA surface mount package for space-efficient PCB integration.

Operates at a supply voltage range of 3 to 3.6 volts with individual output enable control. Supports operating temperature range from 0°C to 85°C for various environmental conditions. Maximum operating frequency is 304 MHz, suitable for modern digital applications.

Complies with RoHS standards ensuring environmentally friendly manufacturing. Height of 1.05 mm and length of 11 mm for compact electronic designs.

This Altera Complex Programmable Logic Device MAX II series unit is ideal for engineers and system designers requiring programmable digital logic with flexibility, speed, and space economy. Access advanced semiconductor solutions at EnvMart for your industrial and commercial projects.
