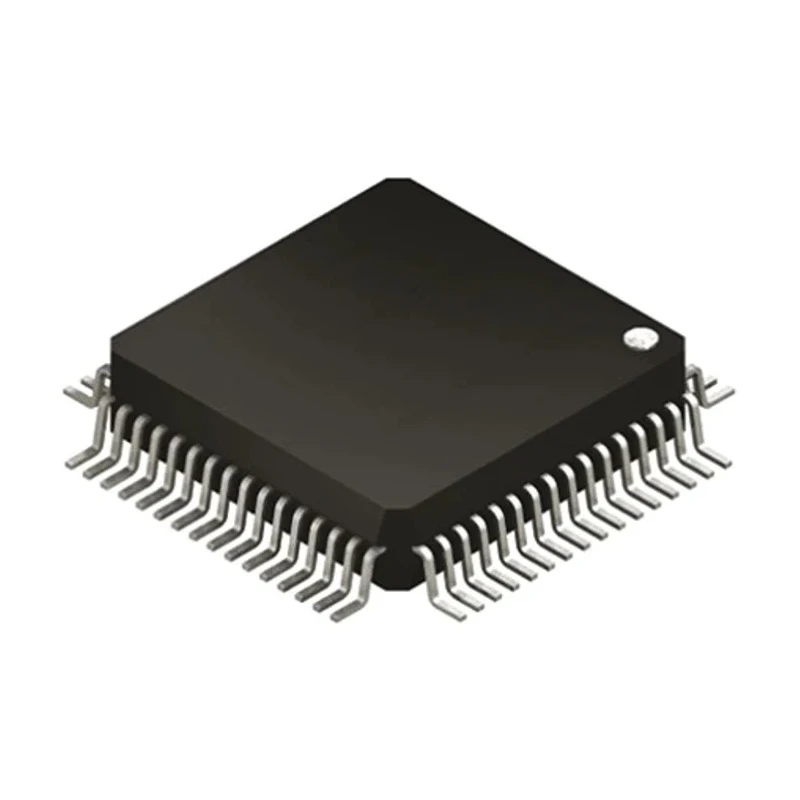

Altera Complex Programmable Logic Device MAX V 128 Cells, 54 I/O, 7.9 ns Propagation Delay, 160 Logic Blocks 5M160ZE64C4N

Altera 5M160ZE64C4N Complex Programmable Logic Device MAX V series offers 128 macro cells and 160 logic blocks, designed for advanced electronic applications requiring versatile and high-speed programmable logic solutions. This device features 54 user I/O pins and supports in system programmability, allowing for easy re-programming and rapid development cycles.

The CPLD architecture delivers low-power consumption with a supply voltage range between 1.71V and 1.89V, complemented by a maximum propagation delay of 7.9 ns and a maximum operating frequency of 152 MHz, making it suitable for real-time and precision digital controls in industrial and commercial electronics.

The 64-pin EQFP surface mount package offers a compact footprint with a height of 1.05 mm and length of 7 mm, facilitating dense PCB layouts. The device's instant-on configuration time (less than 0.5 ms) and standby current as low as 25 μA support energy saving in embedded systems.

This CPLD includes features such as individual output enable control and an internal oscillator for reliable timing without additional external components. It operates reliably within a temperature range of 0°C to 85°C, suitable for various environmental conditions encountered in industrial automation, communications, and embedded system applications.

Industrial use cases include programmable logic for process control, signal processing, and interface bridging across sectors such as manufacturing, telecommunications, and consumer electronics. This device enables rapid prototyping and flexible customization within embedded designs.

Part of the MAX V series with low-power, non-volatile CPLD architecture. Supports in system programmability for flexible deployment. 64-pin EQFP package ensures compact surface mount installation. Operates between 1.71V and 1.89V supply voltage for energy efficiency.

Maximum operating frequency of 152 MHz suitable for complex logic operations. Fast configuration with instant-on capability under 0.5 ms. Wide operating temperature range from 0°C to 85°C for varied environments. Includes internal oscillator and individual output enable control.

Height of 1.05 mm and length of 7 mm for small form factor integration. Explore more advanced programmable logic devices and electronic components in our Electronics & Electricals catalog at EnvMart.
